Hirschmann SPIDER PL - 3 Signal Contact

26
Installation SPIDER PL
Release 08 09/2018
3 Signal contact
The potential-free signal contact (relay contact, closed circuit) reports
through a break in contact:
 At least one power supply is inoperable.
 The device is not operational.
 Loss of connection to at least one port.
The link state can be masked for each port using the configuration. In the
delivery state, link monitoring is inactive.

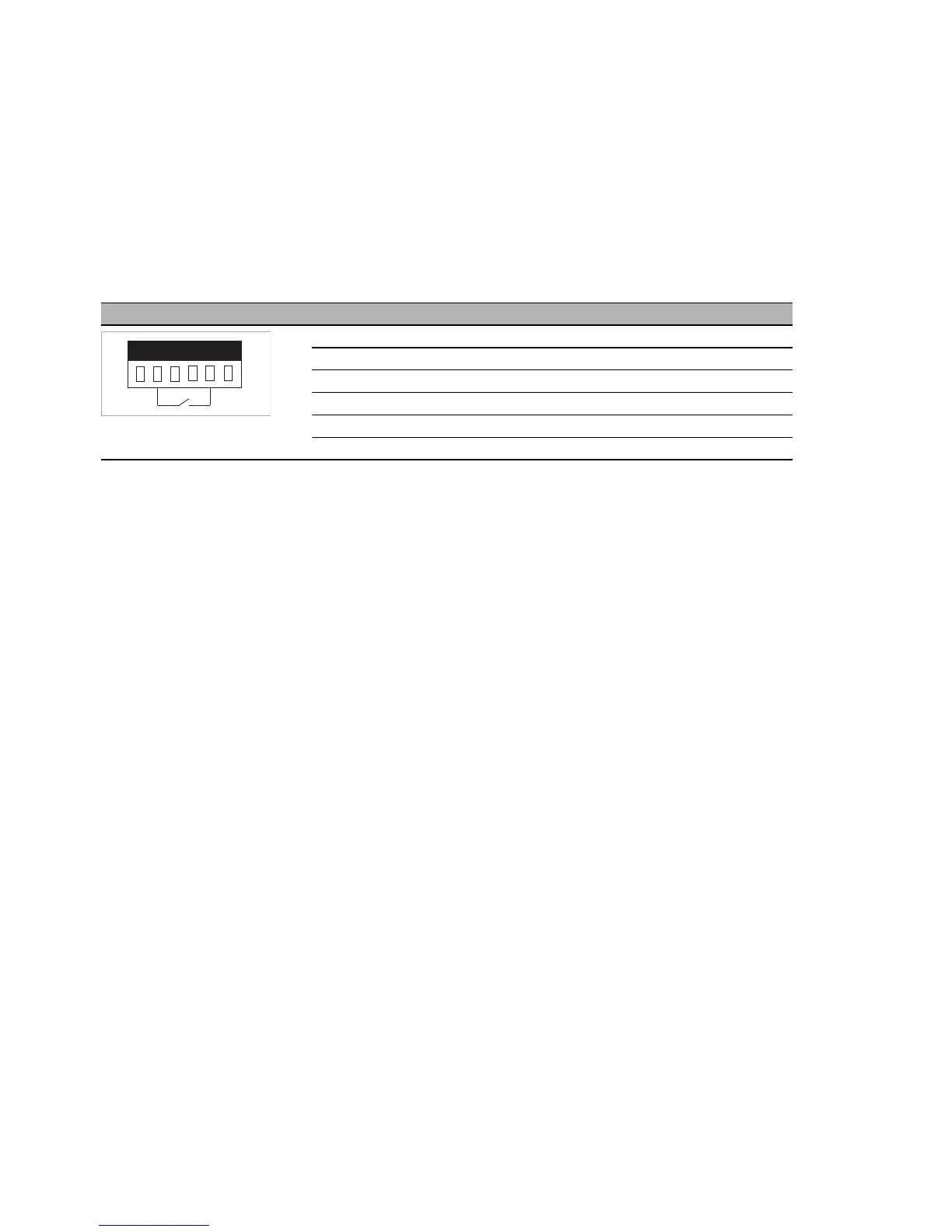

Figure Pin Function
1+ 24 V DC
2FAULT
30 V
40 V
5FAULT
6+ 24 V DC
+24 V
+24 V
0 V
0 V
