4.2 Mounting the device
You have the following options for mounting your device:
 Installing the device onto the DIN rail
 Mounting on a flat surface
4.2.1 Installing the device onto the DIN rail
The device is for mounting on a 35 mm DIN rail in accordance with
DIN EN 60715.
Proceed as follows:

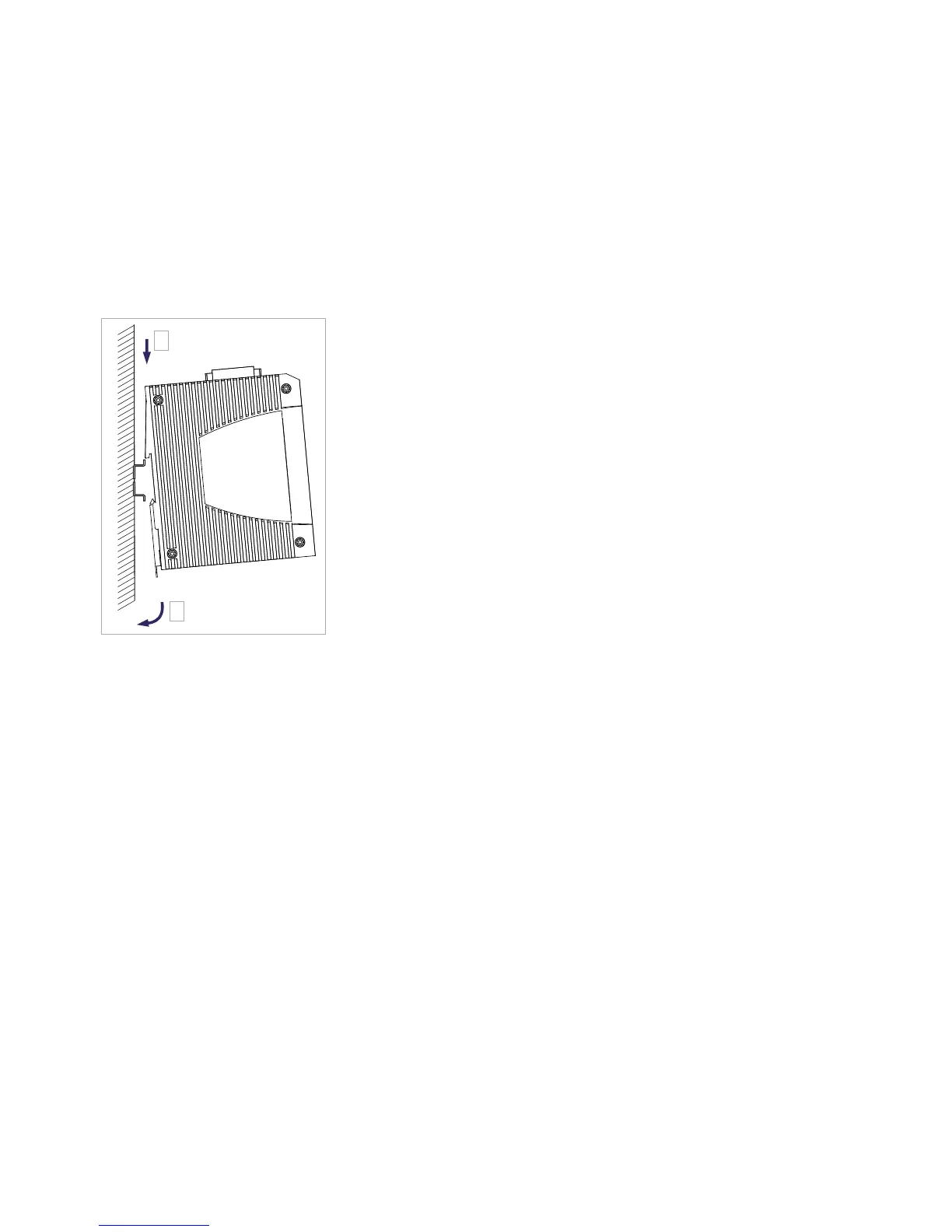

 Slide the upper snap-in guide of the device into the DIN rail.
 Use a screwdriver to pull the rail lock slide downwards.
 Snap in the device by releasing the rail lock slide.
2
1
