8 Disassembly
8.1 Removing an SFP transceiver (optional)

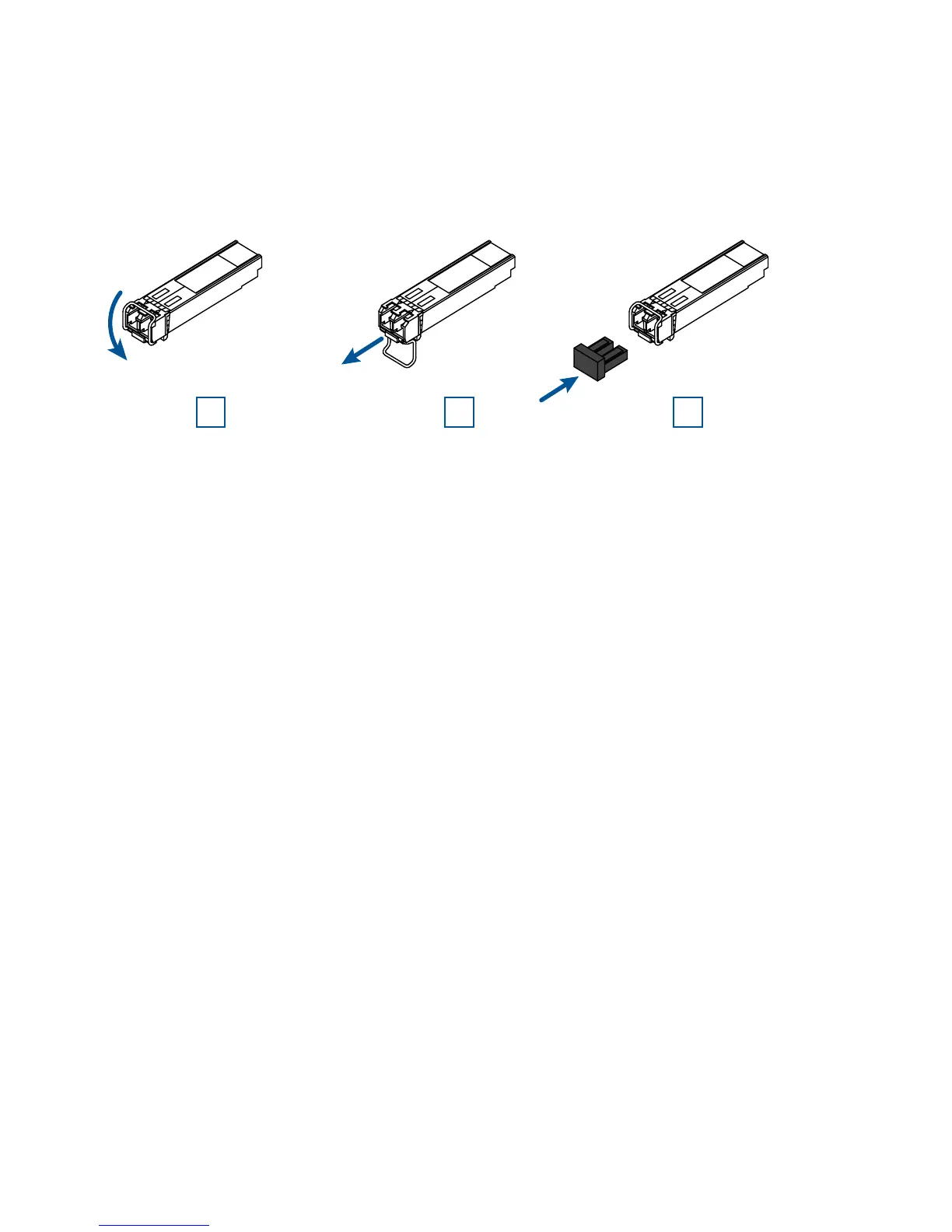

Figure 2: De-installing SFP transceivers: De-installation sequence
Proceed as follows:
 Open the locking mechanism of the SFP transceiver (1).
 Pull the SFP transceiver out of the slot via the open locking
mechanism (2).
 Close the SFP transceiver with the protection cap (3).
1
2
3
