52

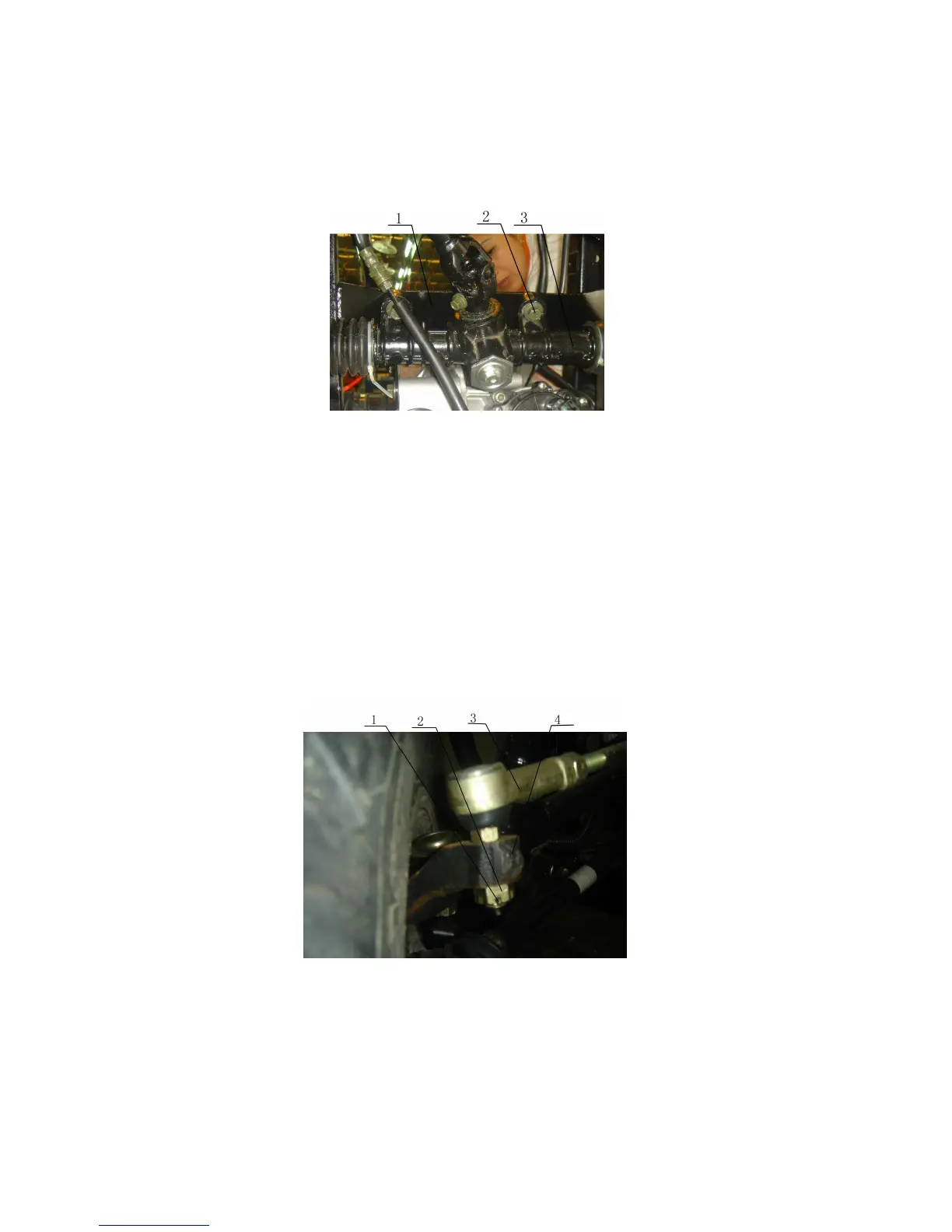

machine from the frame.(Attached figure4-1-9
Attached figure4-1-9
1. Frame jointing board
2. connecting bolt
3. Direction machine
2 、 Loose the open-groove nut on the L/R turning steering
knuckle,take down the steering tension rod from the steering
knuckle.(Attached figure
Attached figure4-1-11
1. Cottor pin3.2×32
2. Open-groove nutM12
3.
Direction machine ball
4. Steering knuckle
