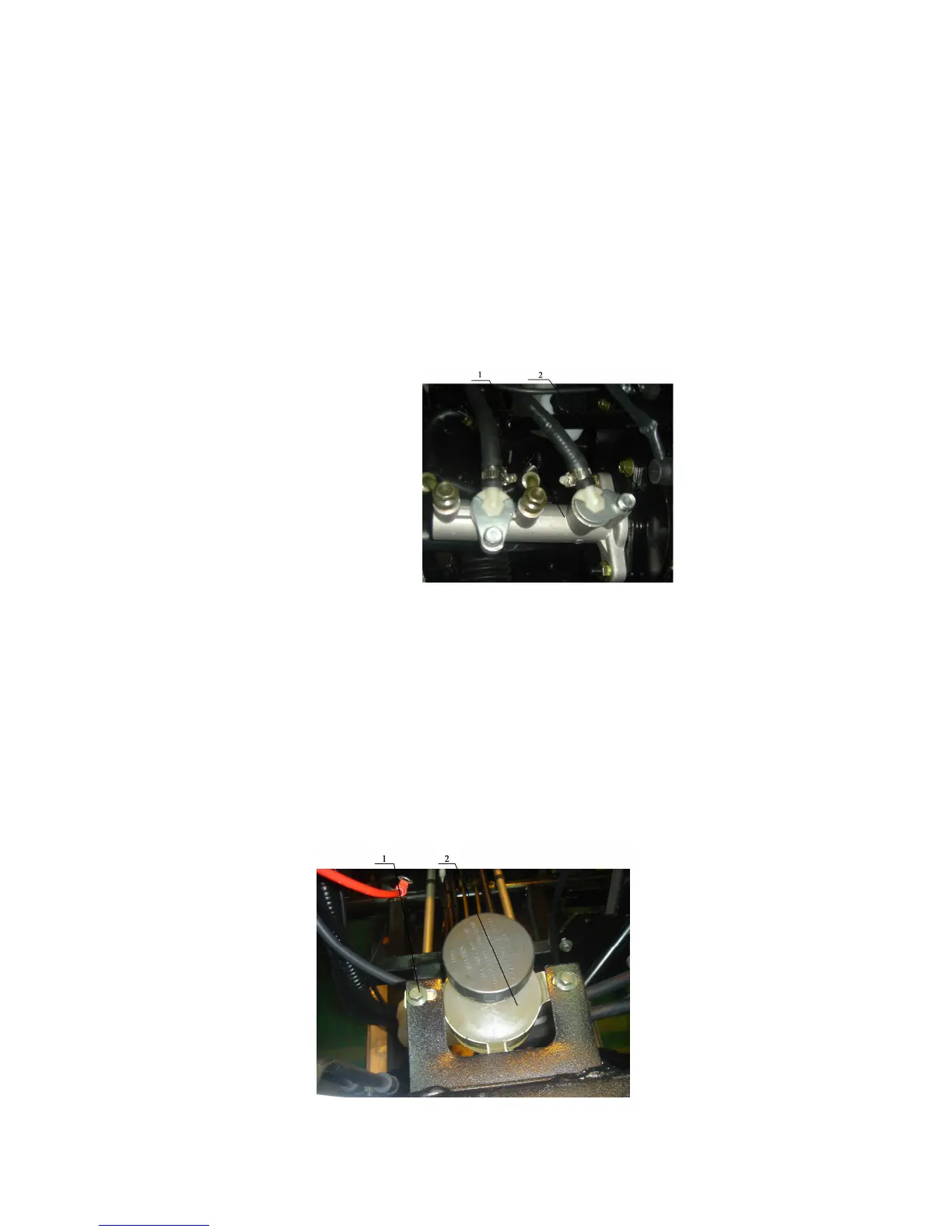

Attached figure4-2-7
1.
Front disk brake plate
4.2.2. Dismantle the disk brake pump
1. Dismantle the disk brake pump installment place and take
down the disk brake pump unit.(Attached figure4-2-8)
Attached figure4-2-8
1.
The disk brake pump
2.
The disk brake pump installment place
2.Loose the bolt M 6×12 which fixed the tighten disk brake oil
cup,and take down it.(Attached figure4-2-9).
