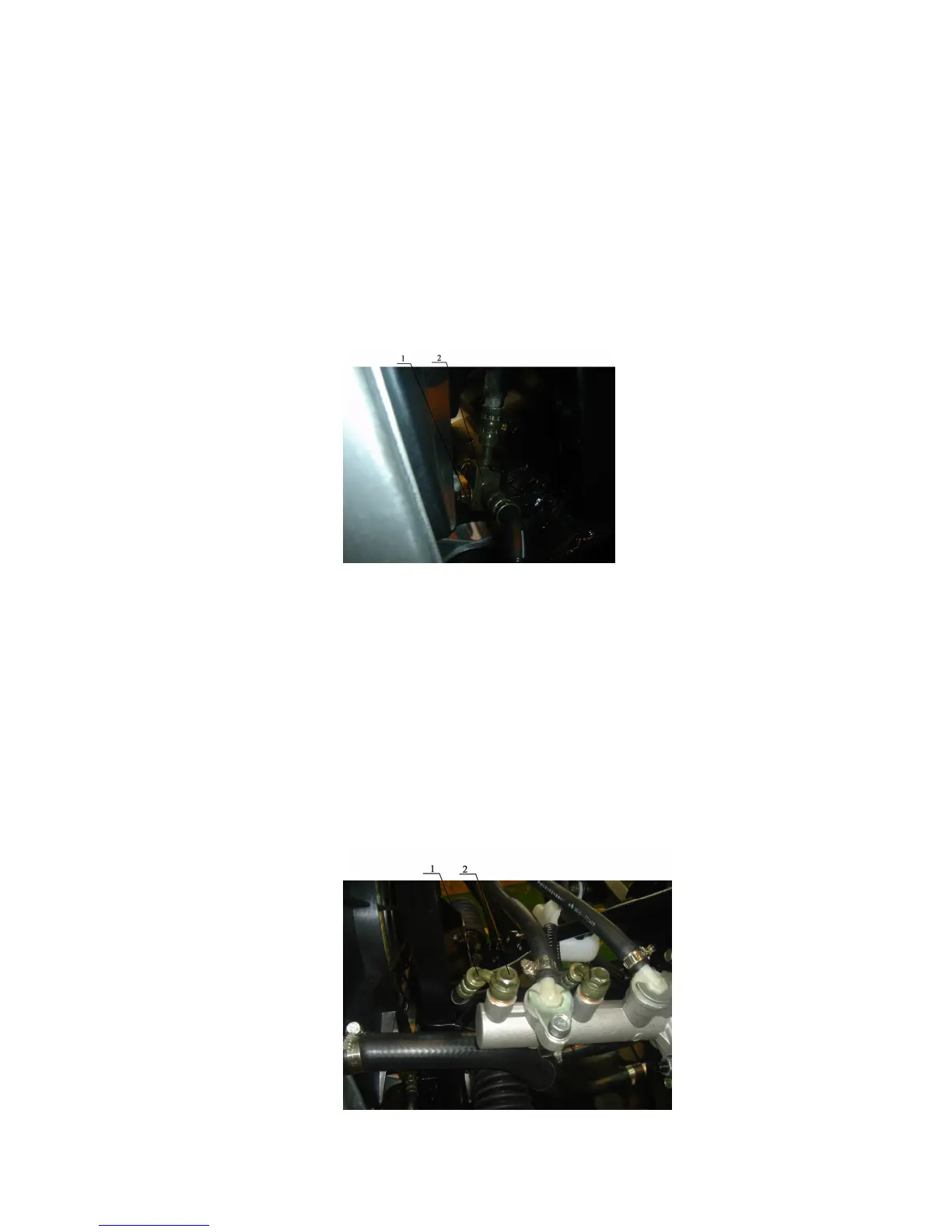

Attached figure4-2-15
1.
Hexagon BoltM6×12
2.Loose one piece of Mnut,which fixed the three Contacts
tubing,then take down it.(Attached figure4-2-16)
Attached figure4-2-16
1.
Hexagon flange Bolt M6
×
20
2.
Three Contacts tubing of the disk brake
3、Loose one piece of Mnut,which fixed the right fuel
pipe bracket on the frame and take down the fuel
pipe.(Attached figure4-2-17)
