Attached figure4-2-17
1.
Connecting bolt
2.
Rear disk brake vitta
4、Loose one piece of M nut which fixed the three contacts
tubing of the rear fuel pipe and take it
down.(Attached figure4-2-18)

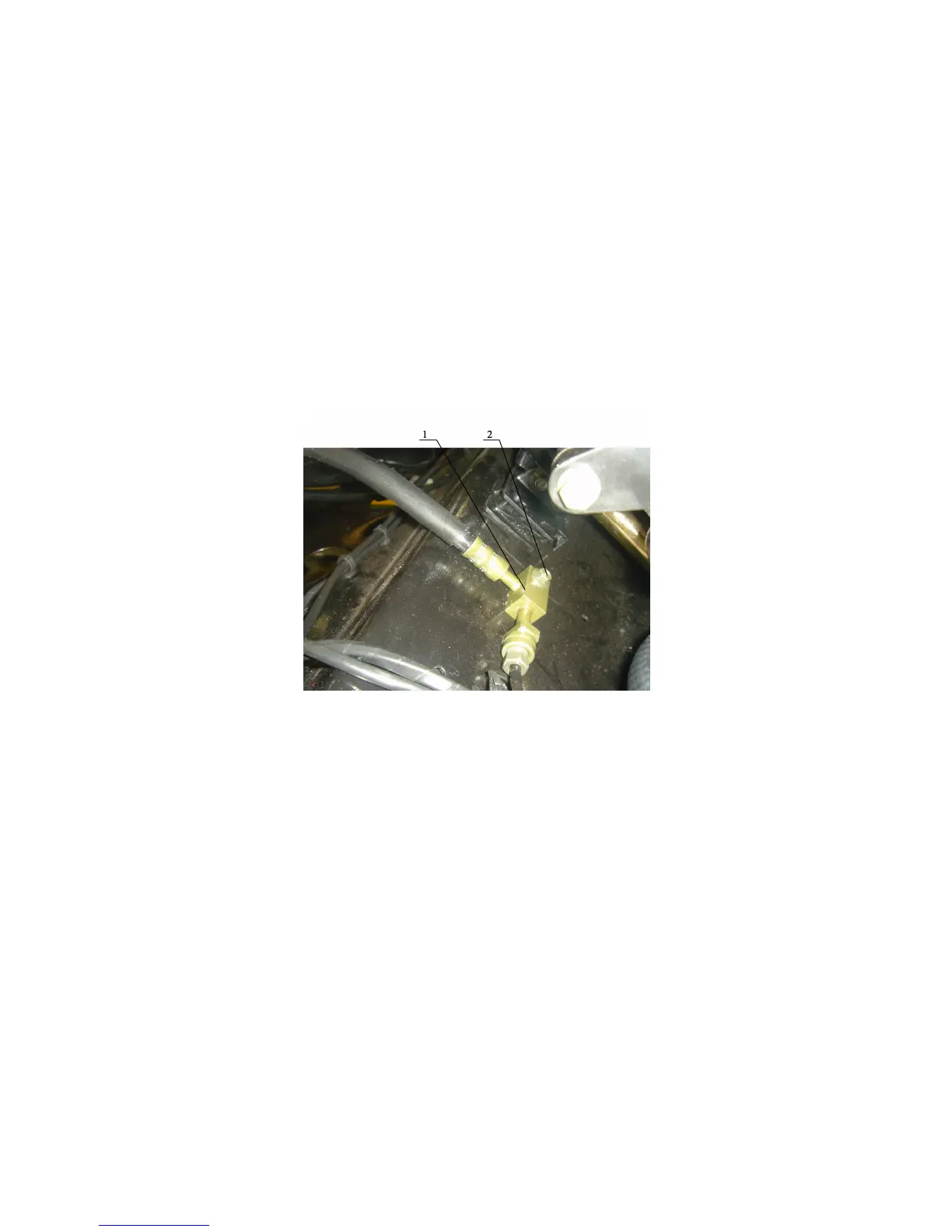

Attached figure4-2-18
1.
Two tubes of the disk brake
2.
Hexagon flange Bolt M6
×
20
5、Break out the hydraulic brake system from the bodywork.
4.2.2.3 Inspect and maintain the hydraulic brake system
1.Inspect the brake oil cup whether heve crack and leak
oil,if so,replace the brack oil cup.
2、Inspect all fixed nuts on the two ends of the fuel
pipe whether become flexible and damaged
