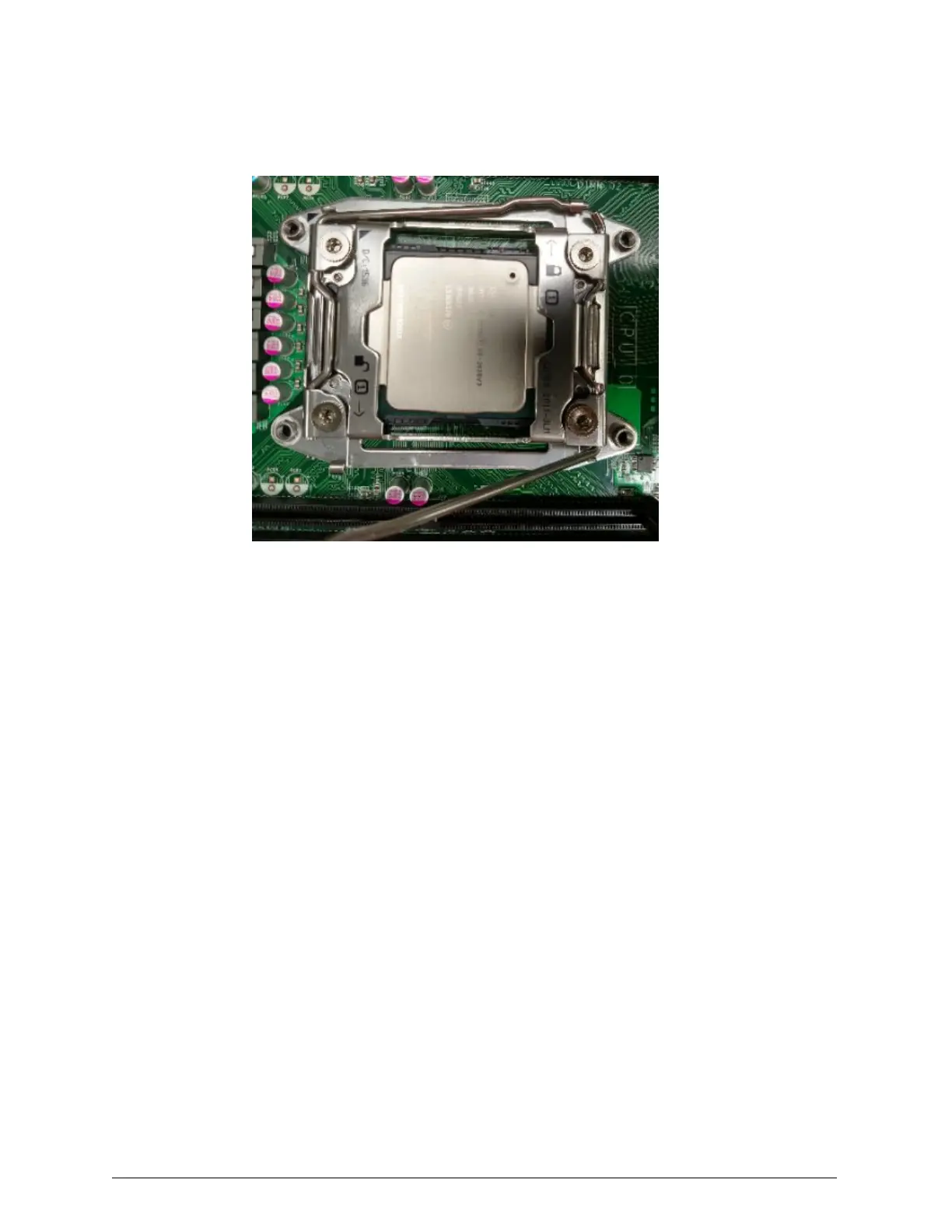

2. While pressing down the end of the straight lever for the CPU socket,
slide the lever out of its catch. Then rotate the lever up as far as it goes.
3. While pressing down the end of the bent lever for the socket, slide the
lever out of its catch. Then rotate the lever up and back as far as it goes.
108
Chapter 4: Refurbishing an HCP S30 Node
HCP S Series Node Refurbishment
Step 17: Unrack, disassemble, and pack the server modules
