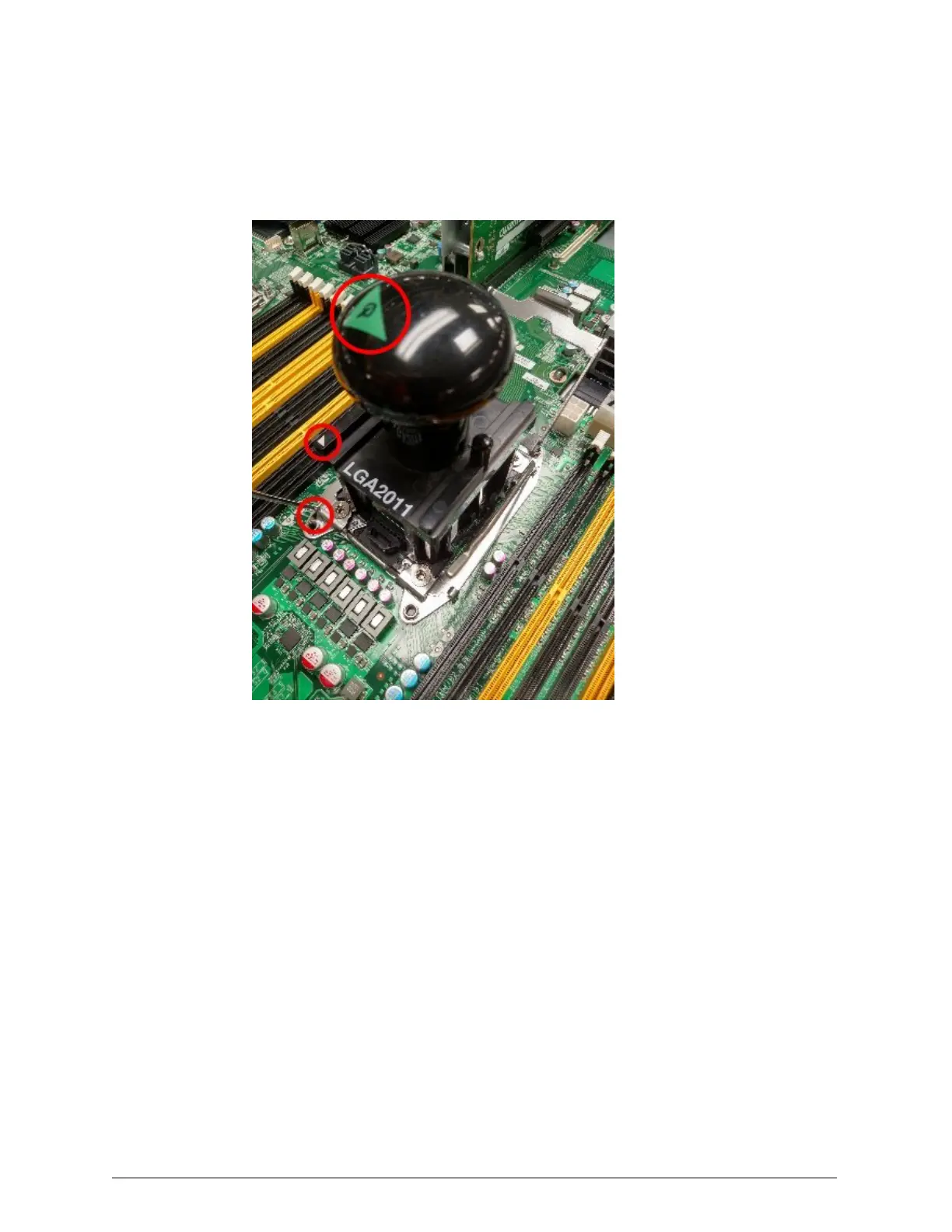

5. Place the top part of the CPUinsertion tool on the CPU so that the green
triangle on the knob and the white triangle on the top of the top part of
the tool point to the black triangle in the front left corner of the socket
frame.
6. Press and release the knob on the top part of the CPUinsertion tool to
cause the clamp to grip the sides of the CPU. When this is done
correctly, you should hear a click.
7. While holding the tool by the knob, lift the CPU out of the socket.
8. If the CPUstill has thermal paste on the top, clean the paste off the CPU.
To do this:
a. Place the top part of the CPUinsertion tool on the bottom part of the
tool so that:
–
The green triangle on the knob and the white arrow on the top of
the top part of the tool point to the white triangle on the bottom
part of the tool
110
Chapter 4: Refurbishing an HCP S30 Node
HCP S Series Node Refurbishment
