●Stream alignment 6-14
6.5 Stream alignment
This operation is performed when the nozzle or nozzle orifice has been replaced. Ordinarily, ink stream
alignment is unnecessary.
● Adjust the stream position so that the stream ejected from the nozzle is at the center of the gutter.
● Adjustment in 2 directions, horizontal direction and vertical direction, is necessary.
Remove the print head cover in the stop state.
1
At the Circulation control screen, press the Ink stream alignment →
Start/Continue .
● Perform this operation with the print head tip inserted into a beaker.
2
● Wear protective gear (goggles and mask).
● If the ink or makeup gets in your eyes or mouth, immediately rinse with warm water and consult a
doctor.
● Perform work after confirming that there is no one in the ink ejection direction.
(Perform this work by inserting the print head tip into a beaker, etc.)
WARNING

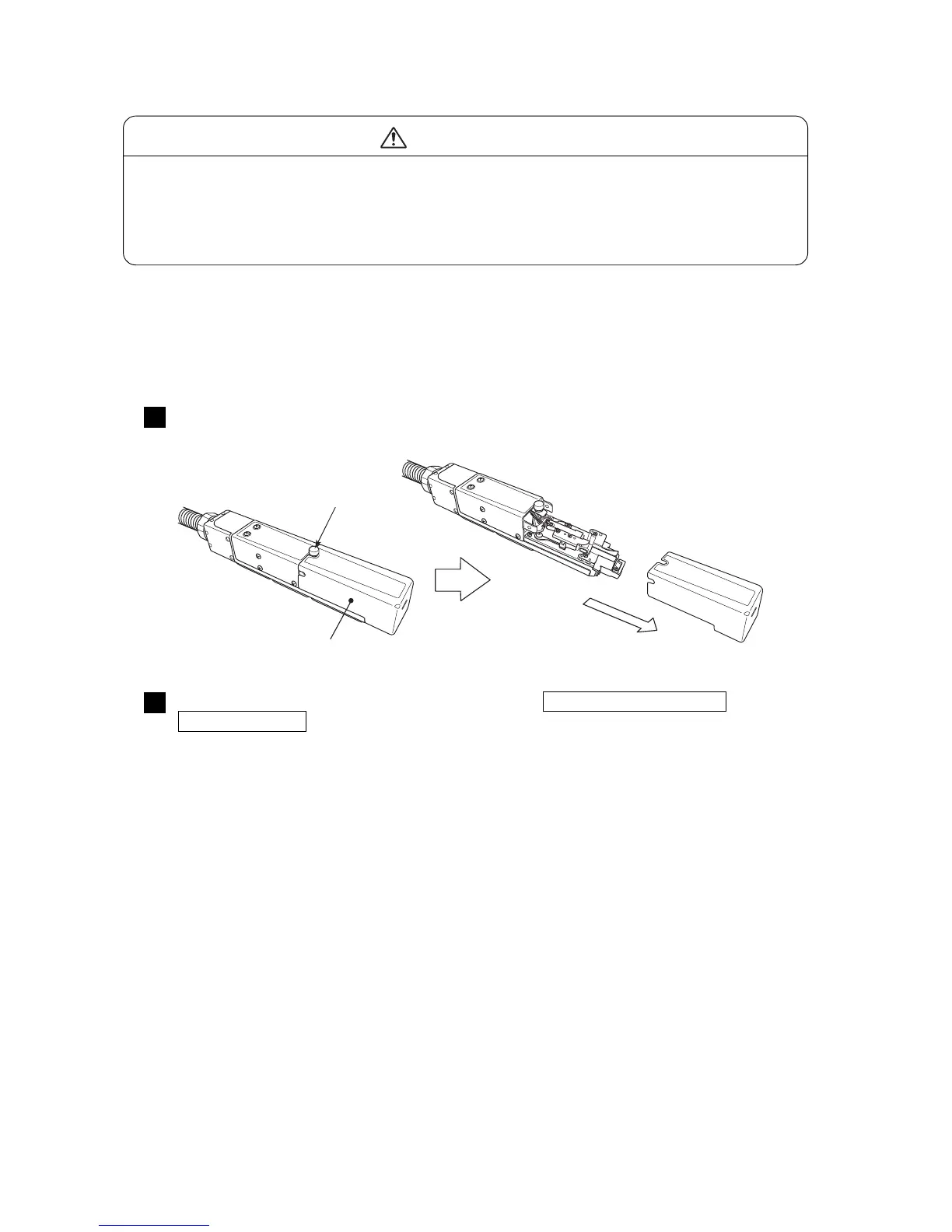

Print head cover
Loosen the screw.
Pull out.
To Next Page
