Hitachi VSP F1500

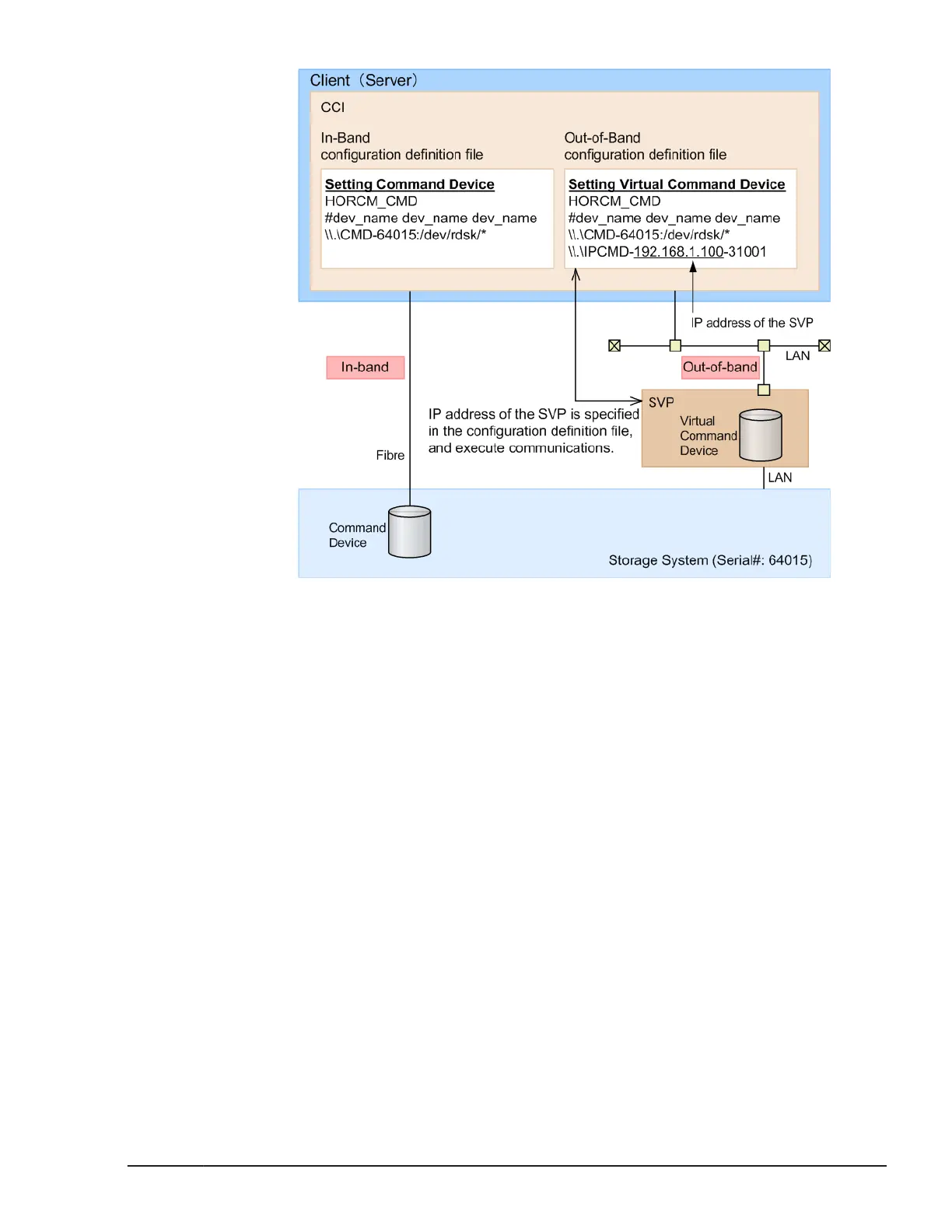

Figure 3-1 System configuration example of in-band and out-of-band
methods (VSP)
In the following figure, CCI B is the CCI server of CCI A. Users can issue a
command from CCI A to a storage system via a virtual command device of
CCI B. Commands can also be issued directly from CCI B without using CCI A.
CCI functions
3-3
Command Control Interface User and Reference Guide
