4.LAN5 and LAK4D Installation

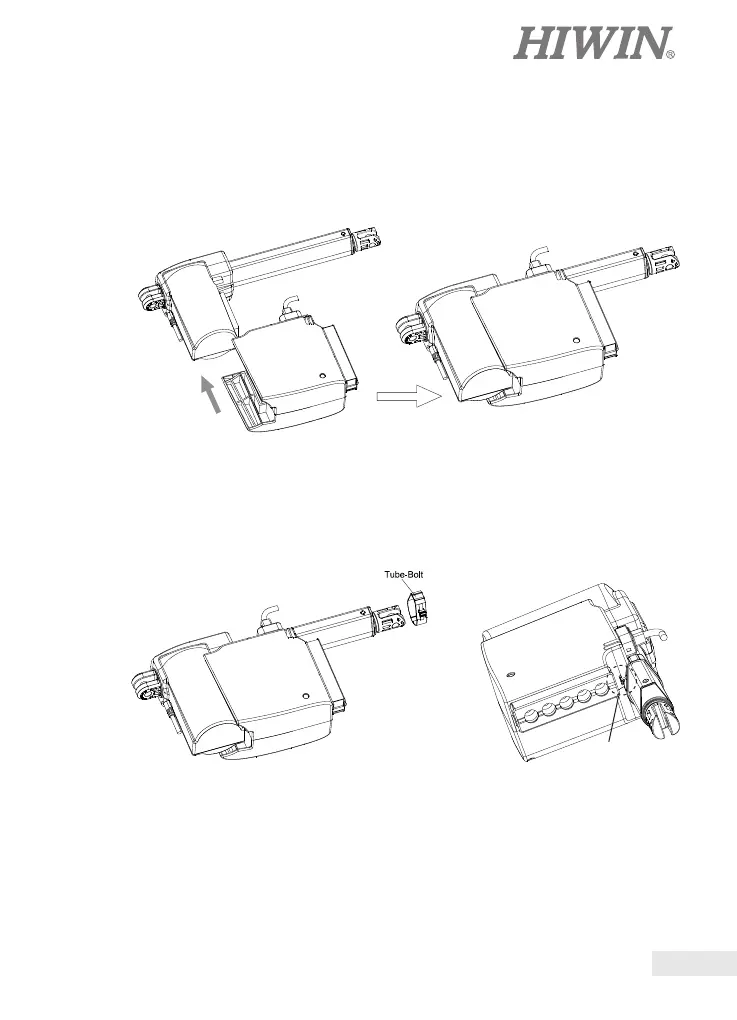

4.1 Step 1: Align a bolt on LAK4D controller with a notch on LAN5 to insert
downward(Fig. 1). There is a tube-bolt circled in the g.2 to x an actuator and
controller.
Fig. 1
Tube-Bolt
Fig. 2
