4.2.3 Install Antennas on Base Station
Locate the two enclosed antennas, and install them by screwing them
onto the base station antenna connectors, as shown in Figure 15.
4.2.4 Connect Base Station Power Supply
You may have Type A or Type B power supply, as illustrated in Figure 16.
Connect the power supply to the base station and an AC electrical outlet according to the numbered
instructions for your type power supply, as shown in Figure 16.
If necessary, refer to the wiring diagrams listed in Section 14, pg. 101.
Note: If using a power source other than that supplied by HME, it must provide 24 volts DC
regulated to +/-5%, be capable of supplying a minimum of 50 watts of power and be “LPS”
rated for safe operation of the unit. The power source must meet all applicable local regulatory
requirements.

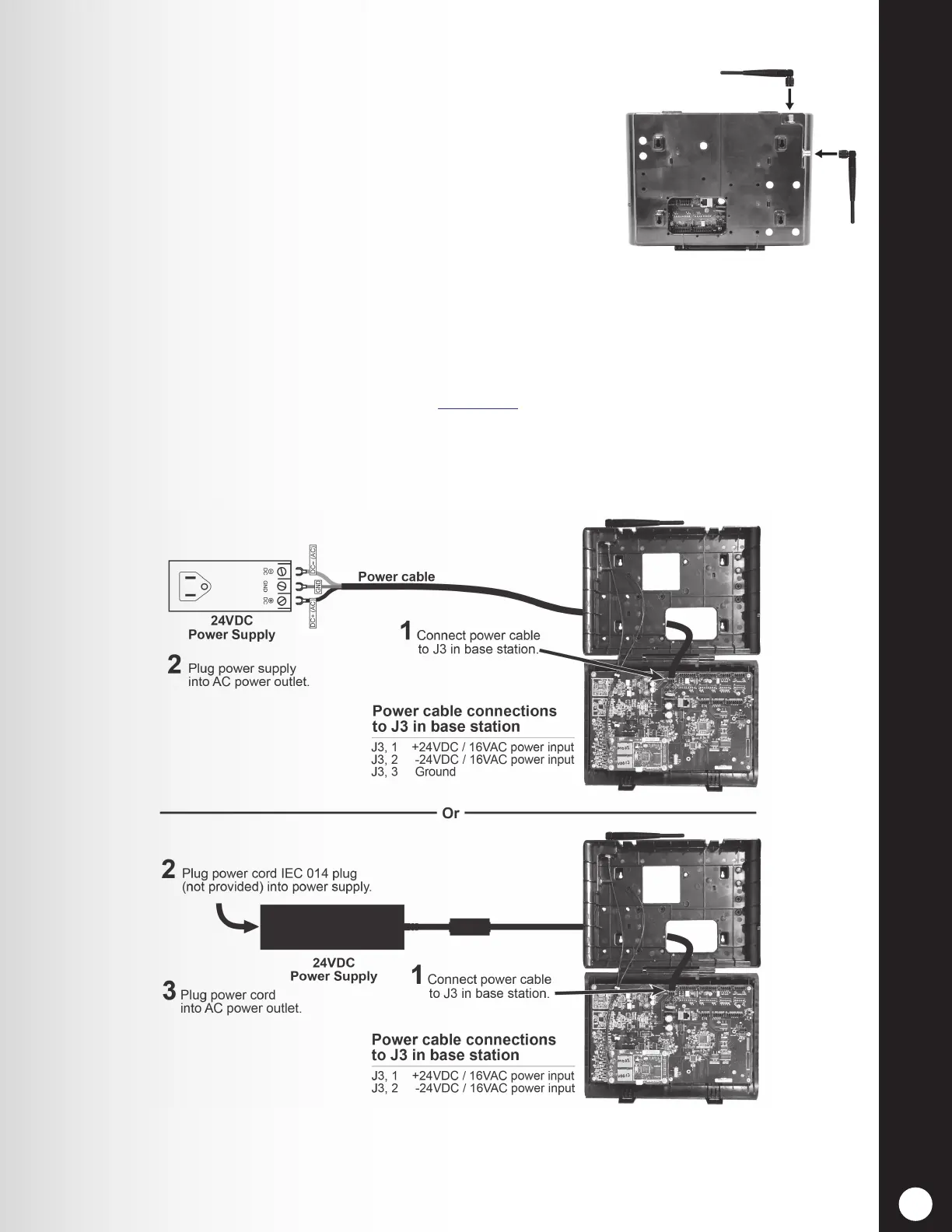

Figure 15. Antenna mounting
Figure 16. Power supply connection to base station
