2.1 Base Station Features
The base station is the heart of the EOS|HD. It contains the circuitry through which all functions of the
drive-thru headset system are channeled. External base station features are shown in Figures 2 and 3.
Internal connectors and controls are shown in Figure 27, pg. 94.
2.1.1 Front Panel
Display screen
Menu-select button
Activity indicators
Help button
Back button
h The Display screen contains all menu selections for installation setup and routine operation
options.
h The Menu-select buttons are used to select options from the menu system.
h The Help button offers information needed should problems occur with the EOS|HD.
h The Back button is used to return to the previous menu display, saving any settings changes
made.
h The Activity indicators illuminate as follows:
● Lane 1 activity
○ A1 light activates when the A button is pushed on a Lane 1 headset.
○ B1 light activates when the B button is pushed on a Lane 1 headset.
○ The “car illustration” light activates when a car is present at the Lane 1 menu board.
● Lane 2 activity
○ A2 light activates when the A button is pushed on a Lane 2 headset.
○ B2 light activates when the B button is pushed on a Lane 2 headset.
○ The “car illustration” light activates when a car is present at the Lane 2 menu board.

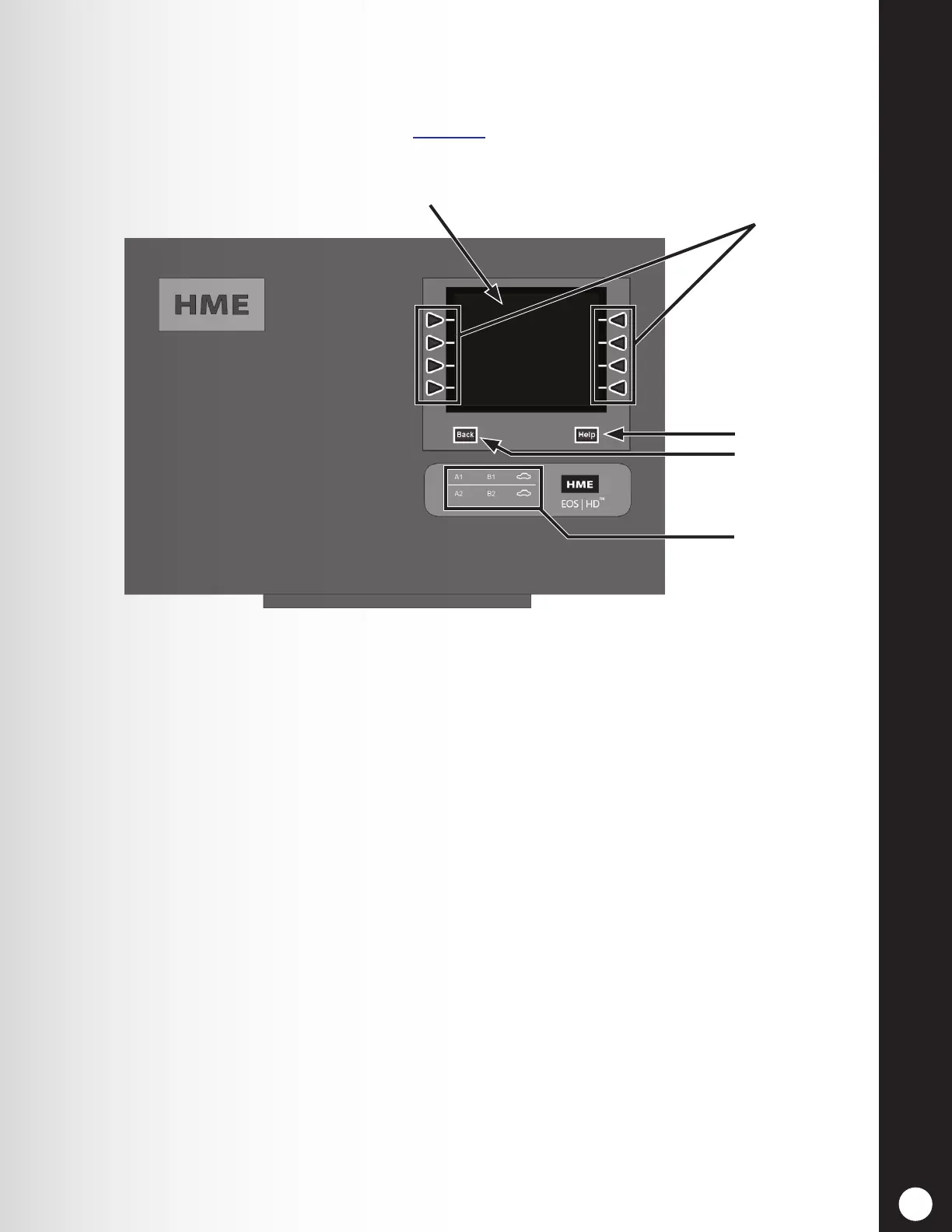

Figure 2. Base station front panel features
