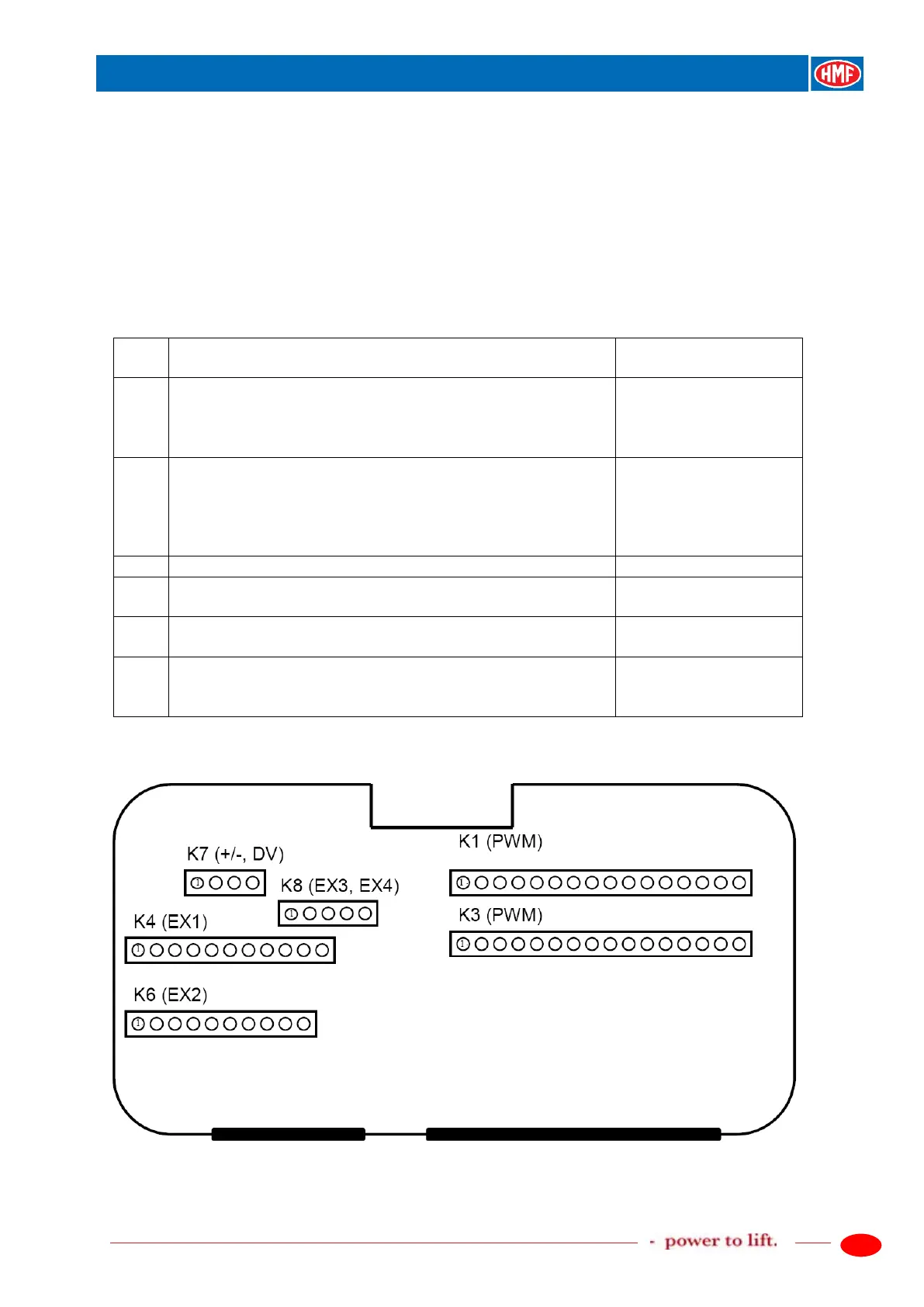

Plug and socket outlets in the radio controller
Each of the 6 plug and socket-outlets are dedicated to different crane and extra functions, CAN bus
and power supply.
In certain applications the outputs may be configured for alternative functions.
In the table you can see the interconnection between sockets, functions and output cables.
Sock
et
Function
Cable
K1
Outputs for proportionally controlled PWM (Pulse Width
Modulation) electric activations or
outputs for digitally controlled ON-
OFF solenoid valves on
the stabilizer control valve
1A-4A and 1B-4B
K3
Outputs for proportionally controlled PWM electric
activations
or
outputs for digitally controlled ON-
OFF solenoid valves on
the stabilizer control valve
5A-6A and 5B-6B
K4
Outputs for engine control functions and horn
EX1 and 60 (horn)
K6
Outputs for digital control of available ON-OFF solenoid
valve functions
EX2
K7
Power supply (+/-) and dump output (wire security signal
for RCL 5300)
RC
K8
CAN-in from RCL 5300
Possibility for CAN-
out for a subsequent CAN controller, if
any.
EX3
