Scanreco G2 radio remote control system
HMF Technical Service Department
Remote control cable, cable connections and plug and socket-outlets

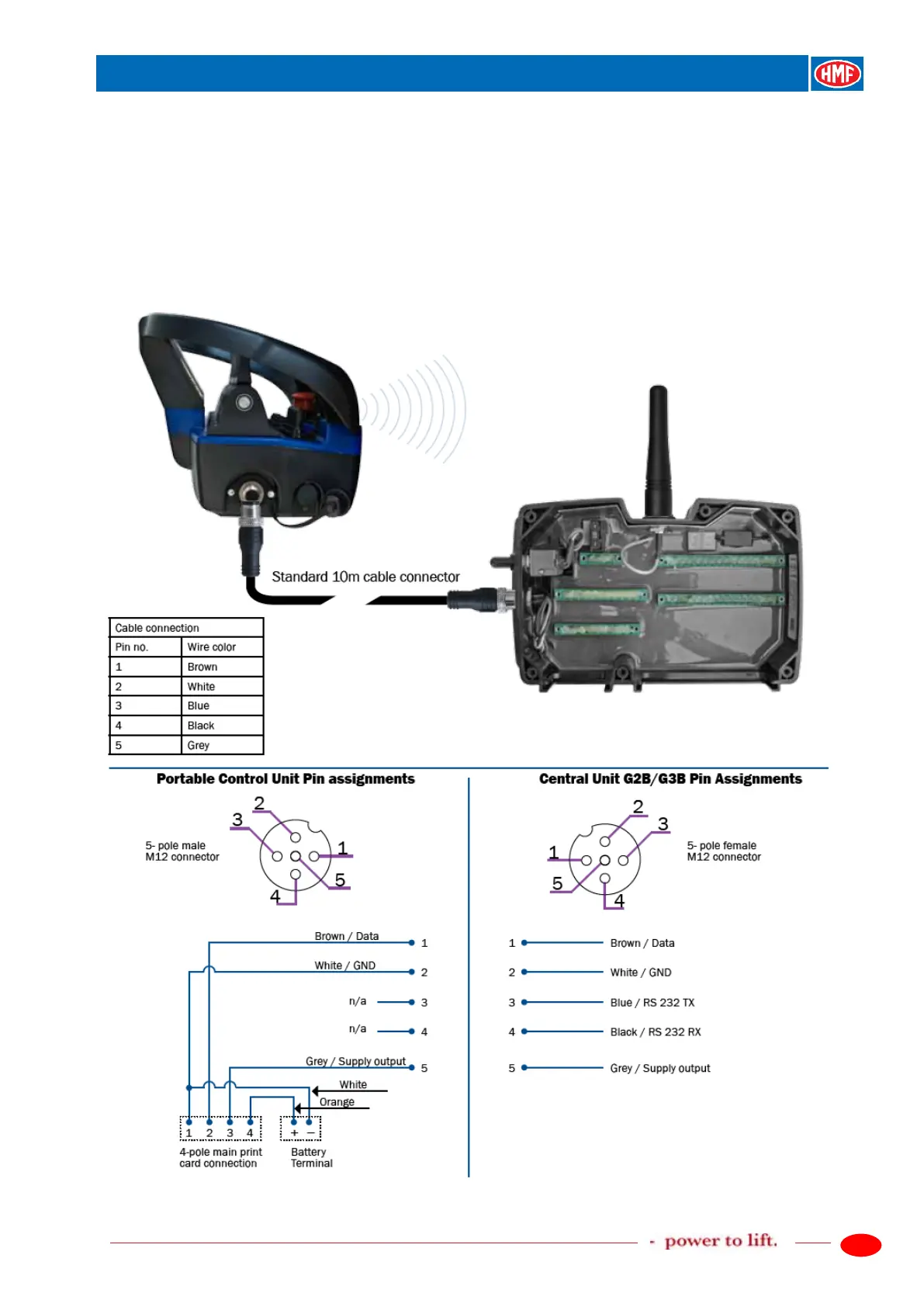

It is possible to remote control the crane by fitting a 10 m remote control cable between the radio
controller and the remote control box.
When the remote control cable is fitted, the radio communication is interrupted.
Below is indicated fitting, wire colours and terminal numbers in the sockets and plugs.
