HMF Scanreco G2 - Remote Control Box Error Indications

Scanreco G2 radio remote control system
53
HMF Technical Service Department
Rev.: 20-13
Error indication, remote control box

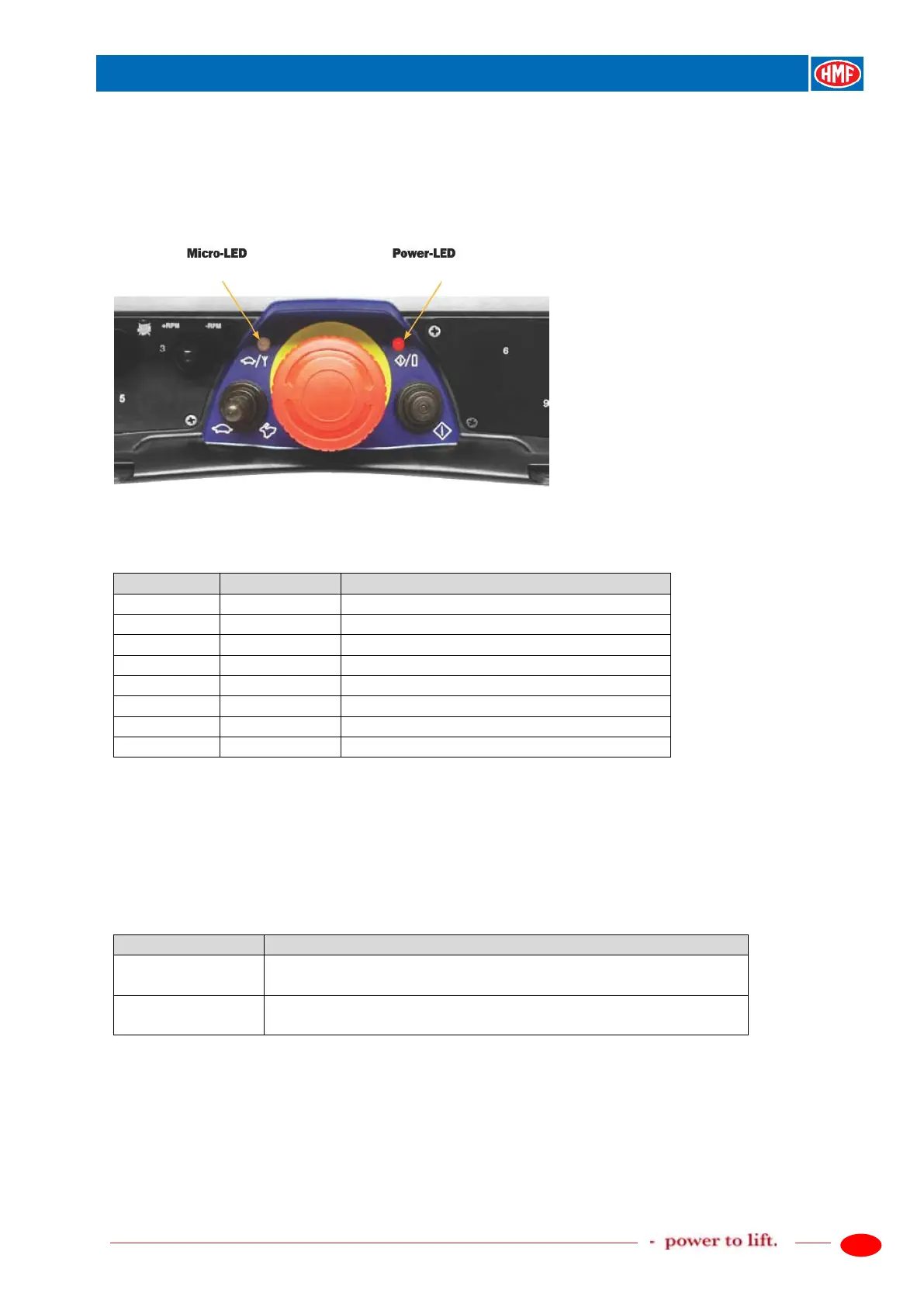

The remote control box monitors all analogue and digital inputs for errors that are indicated on
the two Micro LED and Power LED diodes as well as by the buzzer.
The following is indicated if the remote control levers are not in neutral position when starting up:
Power LED
Buzzer
Explanation
1 flash
1 indication
Lever no. 1* is not in neutral position.
2 flashes
2 indications
Lever no. 2* is not in neutral position.
3 flashes
3 indications
Lever no. 3* is not in neutral position.
4 flashes
4 indications
Lever no. 4* is not in neutral position.
5 flashes
5 indications
Lever no. 5* is not in neutral position.
6 flashes
6 indications
Lever no. 6* is not in neutral position.
7 flashes
7 indications
Lever no. 7* is not in neutral position.
8 flashes
8 indications
Lever no. 8* is not in neutral position.
*Please see the chapter: "Configuration of remote control levers, operation direction".
As regards radio remote control systems with HMF InfoCentre that have a two-way
transmission system (Duplex), the Micro LED is used for indicating the radio quality
on the signal from the radio controller and back to the remote control box.
Micro LED
Explanation
Red flashing
Bad radio signal from the transmitter of the radio controller to
the transceiver of the remote control box.
Red lit
Missing radio signal from the transmitter of the radio controller
to the transceiver of the remote control box.
