HMF Scanreco G2 - Retro-fitting the HMF InfoCentre

Scanreco G2 radio remote control system
38
HMF Technical Service Department
Rev.: 20-13
Retro-fitting of HMF InfoCentre
It is possible to retro-fit an InfoCentre on a Scanreco G2 radio remote control system.
EU radio remote control systems
The MAXI and MINI remote control boxes are as standard fitted with a simplex radio transmitter
meant for one-way communication. The simplex radio transmitter is not the same for MAXI and
MINI.
An InfoCentre requires that a duplex radio transceiver is fitted meant for two-way communication.
As standard the radio controller has a built-in duplex transceiver.
There is an InfoCentre kit for MAXI and one for MINI. Both kits consist of a duplex radio
transceiver, an LED display and a flat transmission cable with plug.
NAFTA radio remote control systems
The MAXI and MINI remote control boxes are as standard fitted with a duplex radio transceiver
which is the same for both the MAXI and MINI boxes.
As standard the radio controller has a built-in duplex transceiver.
There is an InfoCentre kit that fits both the MAXI and MINI boxes. The kit consist of an LED
display and a flat transmission cable with plug.
Installation procedure

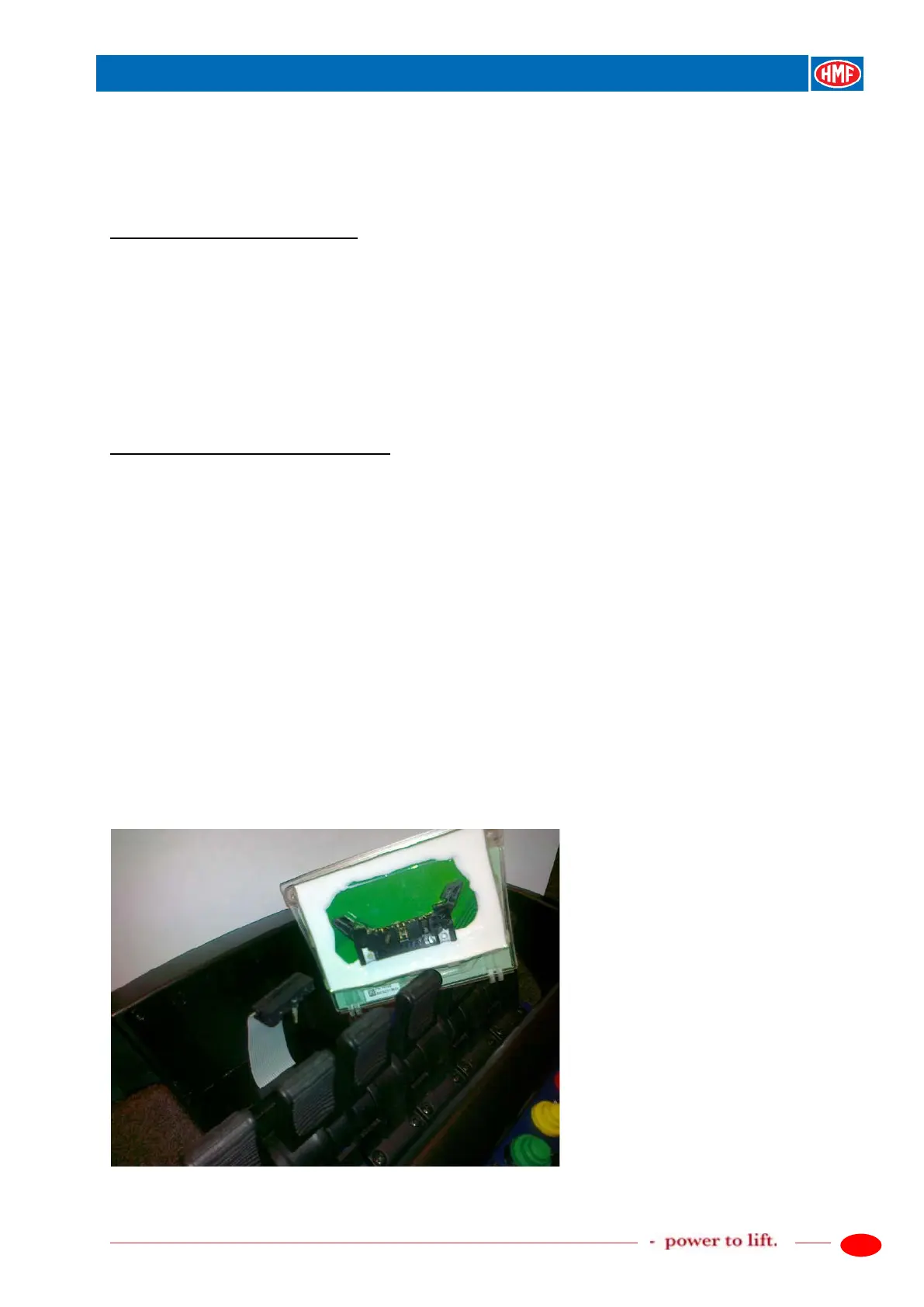

- Mount the LED display.
- As to EU radio remote control systems (not NAFTA) the simplex radio transmitter is to be
replaced by the duplex radio transceiver.
- Select Display in the Add feature menu 1.1.1.1.3.1 - ENT by means of the CGW 5355.
"Update controller".
- Download of icons and texts. Please see the chapter in this manual.
- Programming of ID. Please see the chapter in this manual.
