should be checked before each shift and the wheel
castors should be inspected for damage and ex-
cessive wear daily. The castors and wheels should
be greased daily for maximum life expectancy.
Refer to the Operation and Maintenance sections
of this manual for additional information on the
operation and maintenance of the castor wheels
and blasting head assemblies.
NOTICE:
FOR MAXIMUM PRODUCTION STANDOFF DISTANCE
SHOULD NEVER BE MORE THAN ONE (1) INCH.

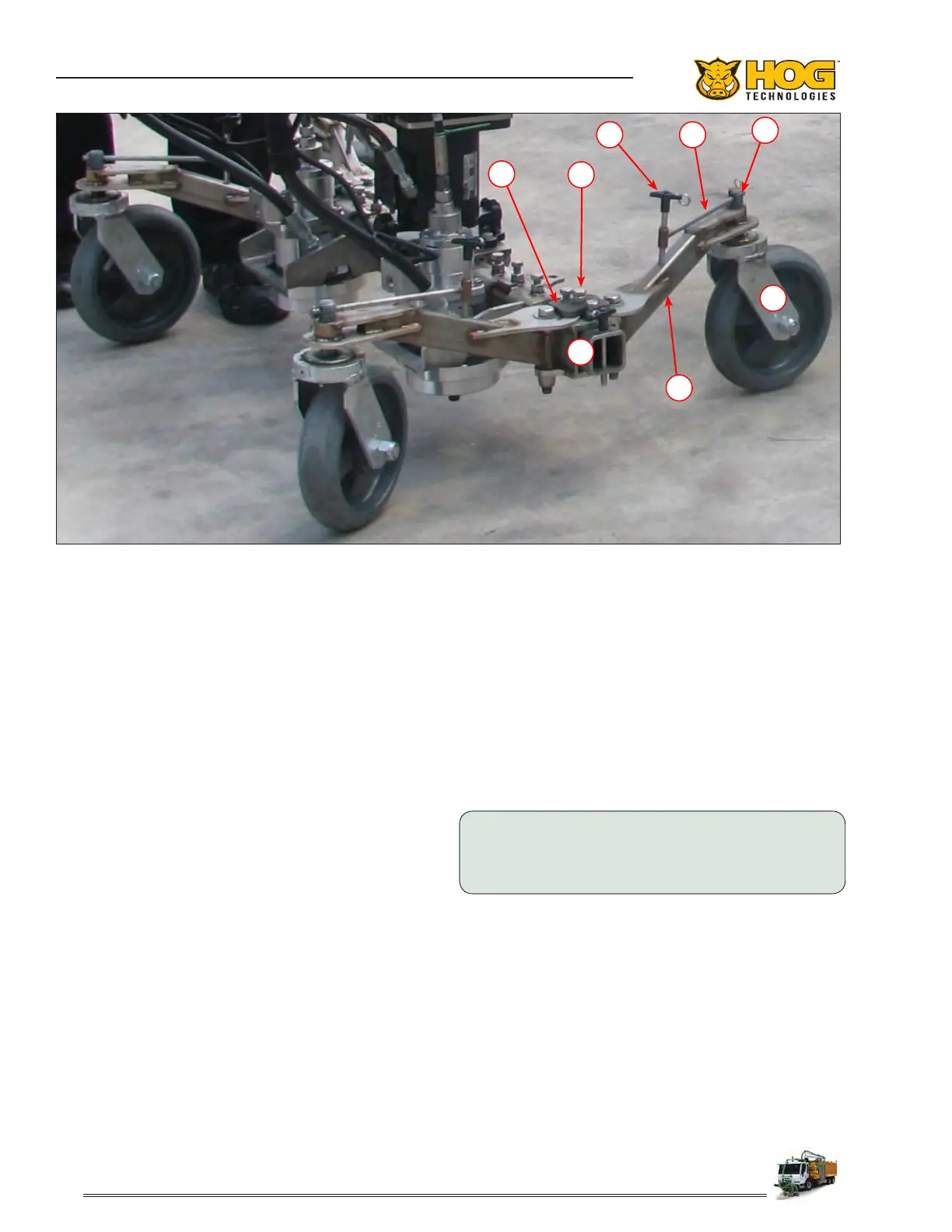

Tubular Head Plate Caster Wheels, Arms & T-Handle Pins
1. Adjustable Friction Plate 5. Castor Wheel Assembly Threaded Shaft
2. Friction Plate Bolt & Jam Nut 6. Castor Wheel Support Arm
3. T-Handle Pin 7. Castor Wheel Assembly
4. Height Adjustment Rod 8. Tubular Head Plate
7
3 4
6
5
1
2
8
