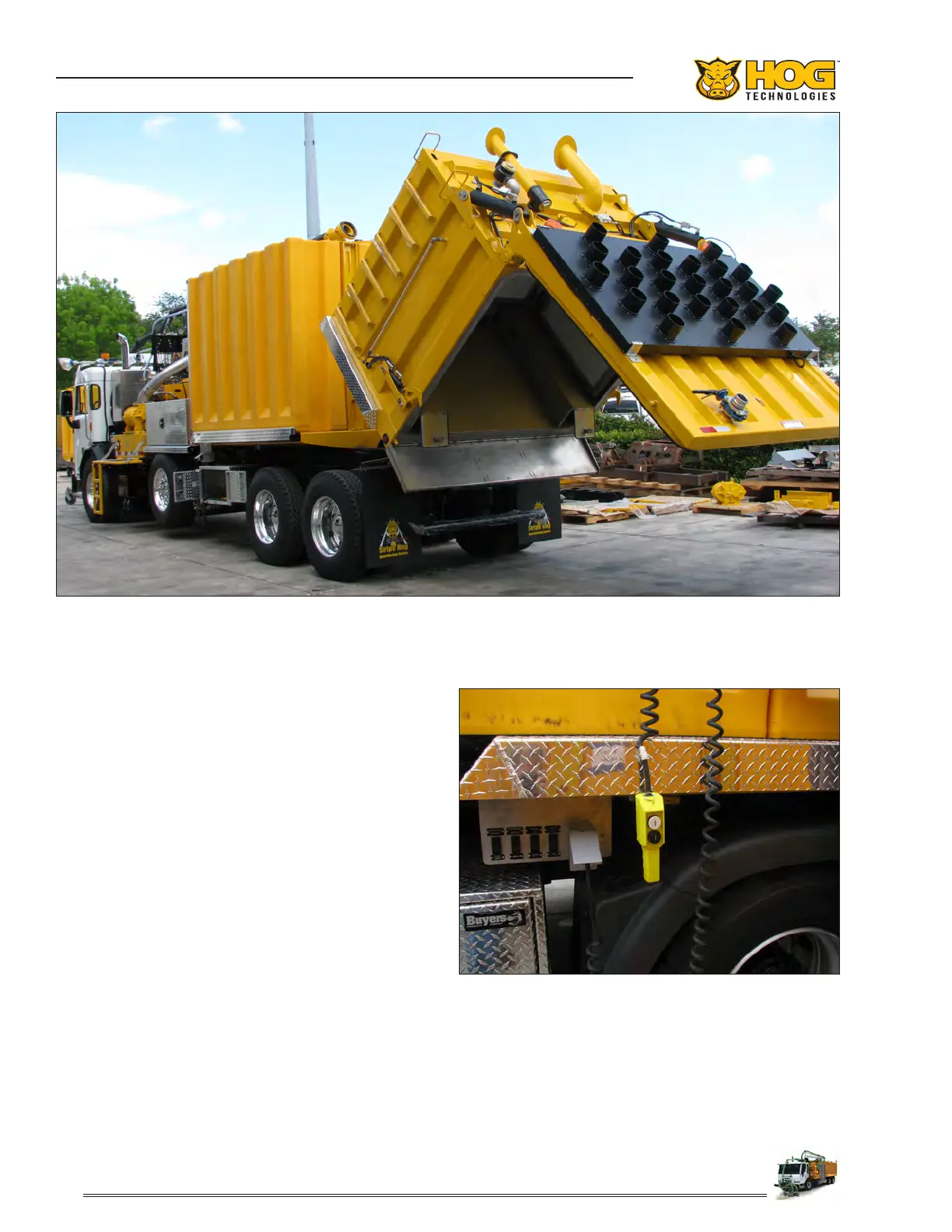

Debris Tank Door Open With Tank Tilted
Remote Control Switch
The debris tank tilts and hydraulic rams open
the door for easy dumping. The tank is designed
with enough ground clearance to empty into most
industrial dumpsters.
The tank is lifted by two hydraulic rams that are
controlled by the dump switch remote control
unit. The remote dump switch control plugs into
the grey junction box located near the waste tank
control switch panel on the side of the truck chas-
sis. The remote switch performs dierent functions
depending on the mode selected with the rocker
switches on the debris tank control panel. (Refer
to the Dumping Debris Procedure in the Operation
section of this manual). Note that the debris door
seal must be deated before the hydraulic door
latches will release.
