OPERATION OF THE IMAGER DUO
Imager Duo Operator’s Manual
3.3
APPLYING POWER TO THE EQUIPMENT
WARNING
Grounded Outlet
Instrument Fusing
Do not power on or
operate if equipment
has been damaged.
Apply power to the Server, the Imaging Station and the Image Processor Con-
troller according to the following procedure.
Note:
All power cords must be plugged into a grounded outlet. Disconnection
from the power supply source is by removal of the power cord.
Make sure the uninterruptable power supply (UPS) is plugged in to a grounded
outlet and all devices are plugged into the UPS backup outlets. Do not operate
any devices if the UPS is not plugged in.
Application of power to the equipment must be performed in the sequence
described in order to establish proper communication between the Server, the
Image Processor Controller and the remaining system elements (i.e., the Moni-
tor, Keyboard, Mouse, Imaging Station and Review Scopes). In addition, do
NOT touch any buttons on the Keyboard when turning on the Image Processor
Controller.
1. Make sure the doors of the Imaging Station are fully shut.
2. At the monitor, turn on the power. (Figure 3-2.)

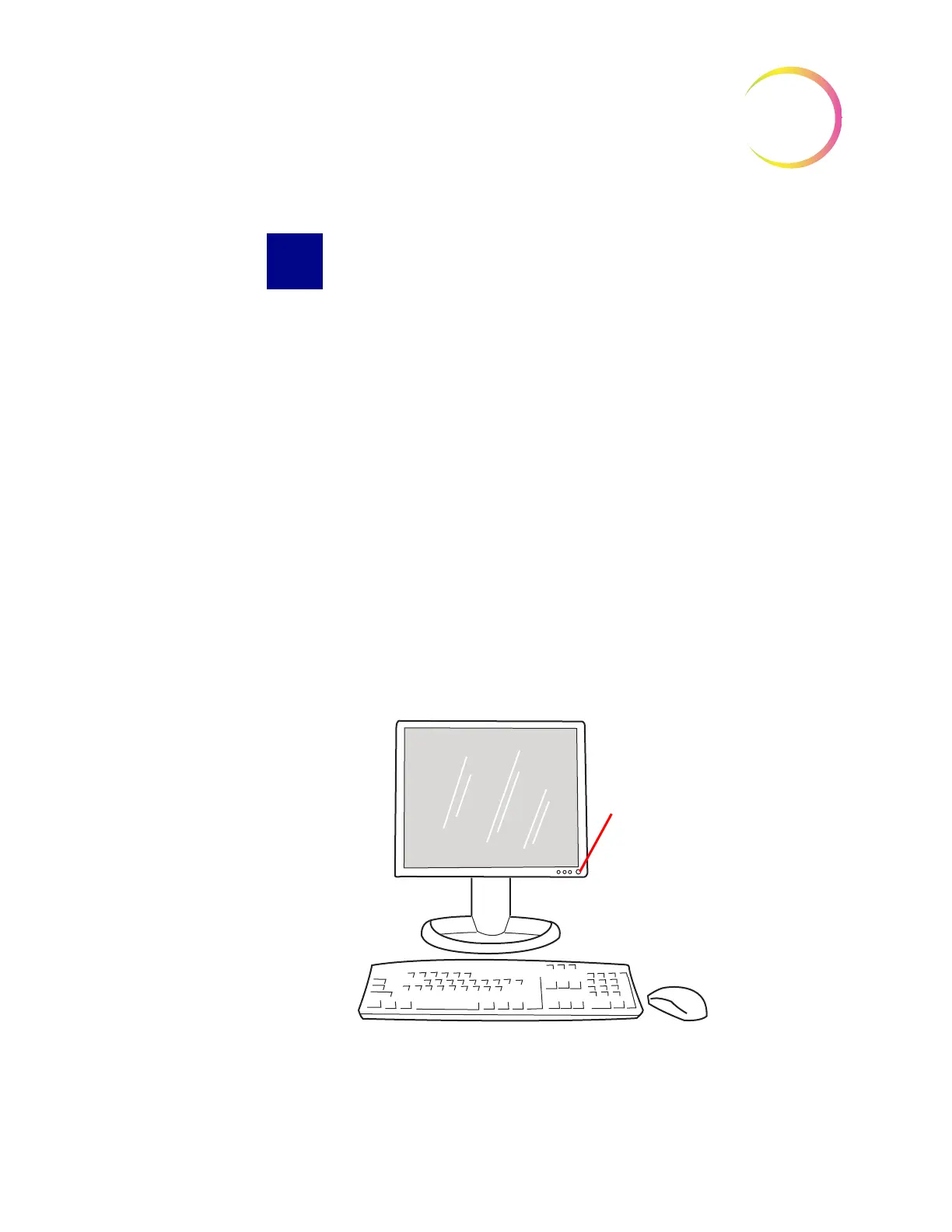

Figure 3-2 Power on the Monitor
Power On Indicator
&
Power Switch
To Next Page
