Base Plate for Tripod Mounting (Optional)
An optional base plate is available (P/N: W01-3018-000) with two hex screws (P/N: 430-0409-
000) for mounting an AreaRAE Plus/Pro on a standard surveyor-style tripod (such as RAE
Systems P/N: 029-2117-000). The base plate comes with two hex screws that match the
threaded inserts in the bottom of the AreaRAE Plus/Pro. Note: Installation does not require
removal of the instrument’s rubber boot.

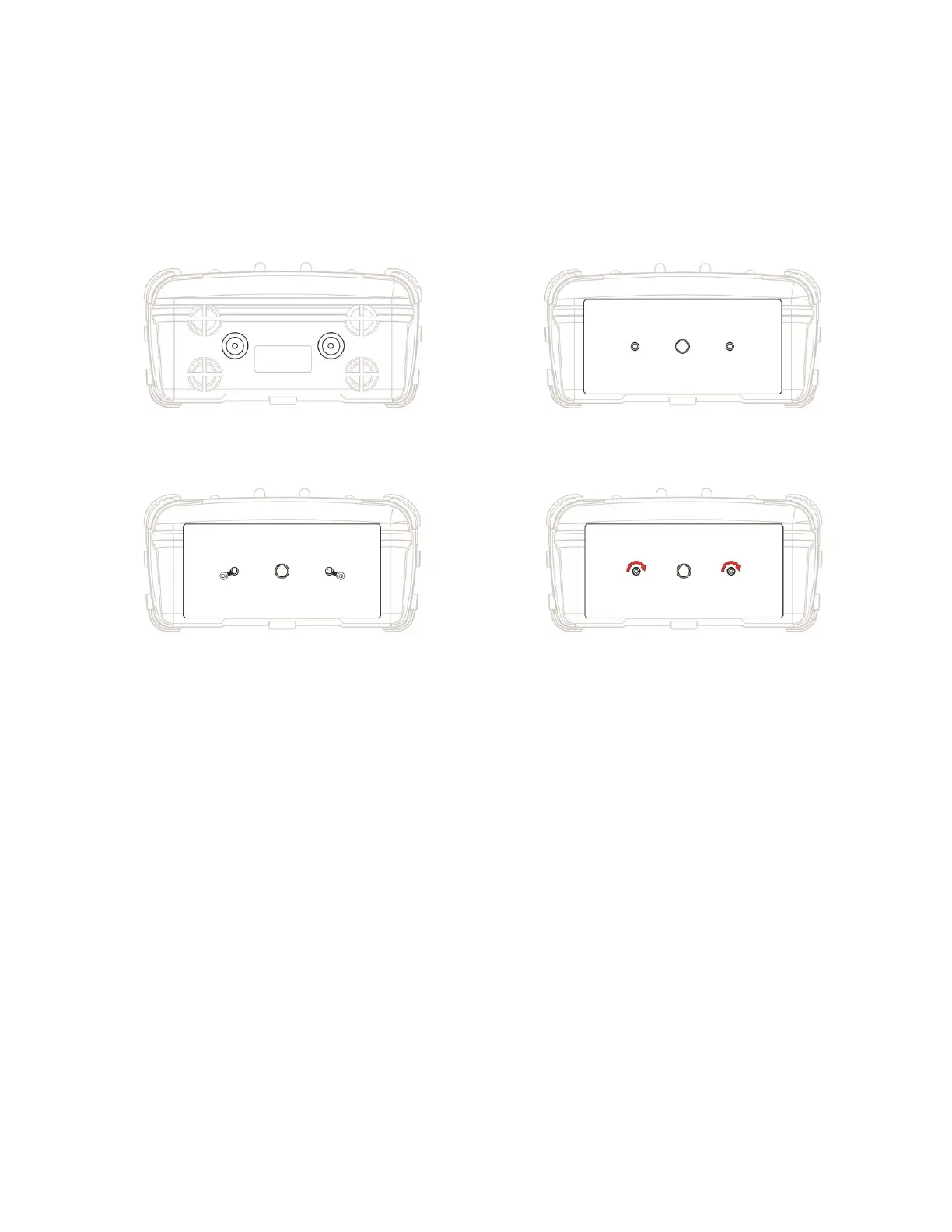

1. Lay the AreaRAE Plus/Pro on its back to provide
access to the two threaded inserts.
2. Match the plate to the instrument, with its rib
against the instrument’s bottom.
3. Align the hex-head screws with the holes and
press them into place.
4. Use a hex wrench to tighten the screws.
Once the base plate is firmly attached to the AreaRAE Plus/Pro, stand the instrument up and set
it on the tripod. Press up on the tensioning knob until it meets the threads in the middle of the
base plate, and then turn until the assembly is tight.
