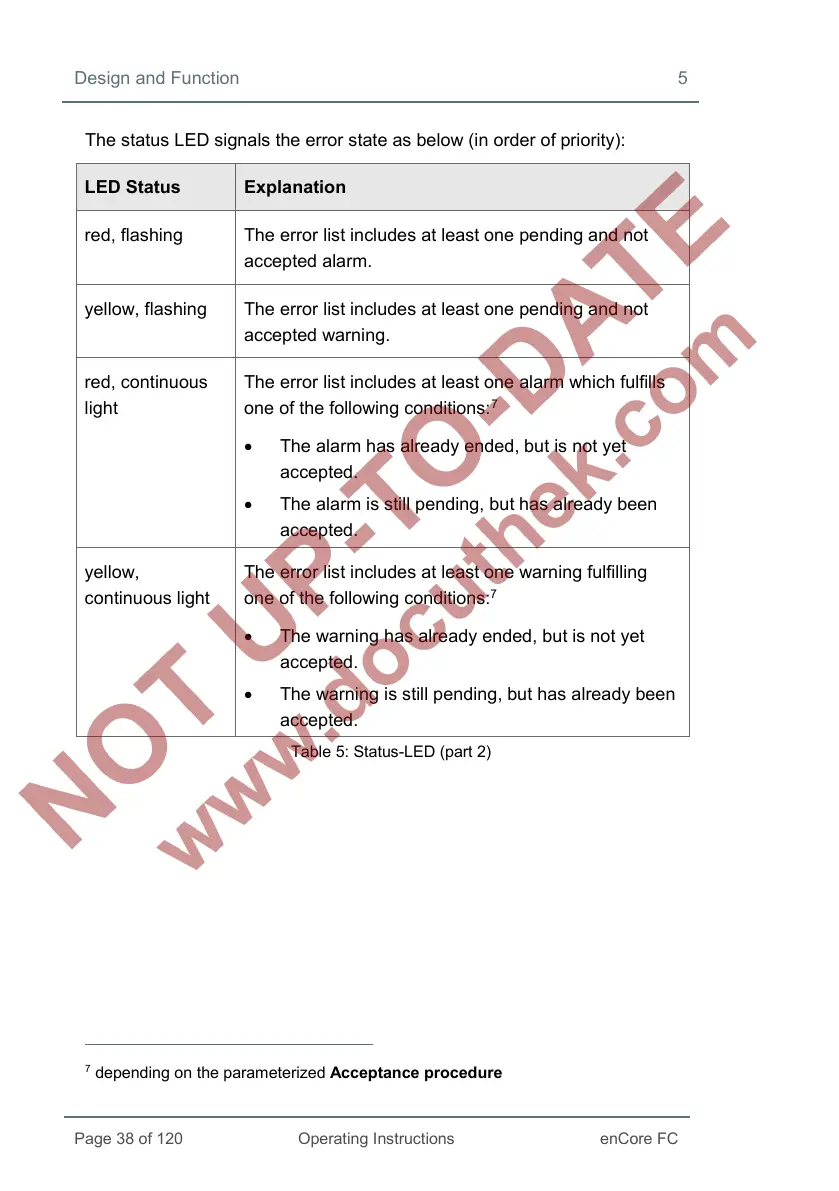

The status LED signals the error state as below (in order of priority):
LED Status Explanation
red, flashing The error list includes at least one pending and not
accepted alarm.
yellow, flashing The error list includes at least one pending and not
accepted warning.
red, continuous
light
The error list includes at least one alarm which fulfills
one of the following conditions:
7
• The alarm has already ended, but is not yet
accepted.
• The alarm is still pending, but has already been
accepted.
yellow,
continuous light
The error list includes at least one warning fulfilling
one of the following conditions:
7
• The warning has already ended, but is not yet
accepted.
• The warning is still pending, but has already been
accepted.
Table 5: Status-LED (part 2)
7
depending on the parameterized Acceptance procedure
