Honeywell HBW4PER2 Configuration Guide

Performance Series IP Camera Software Configuration Guide
4

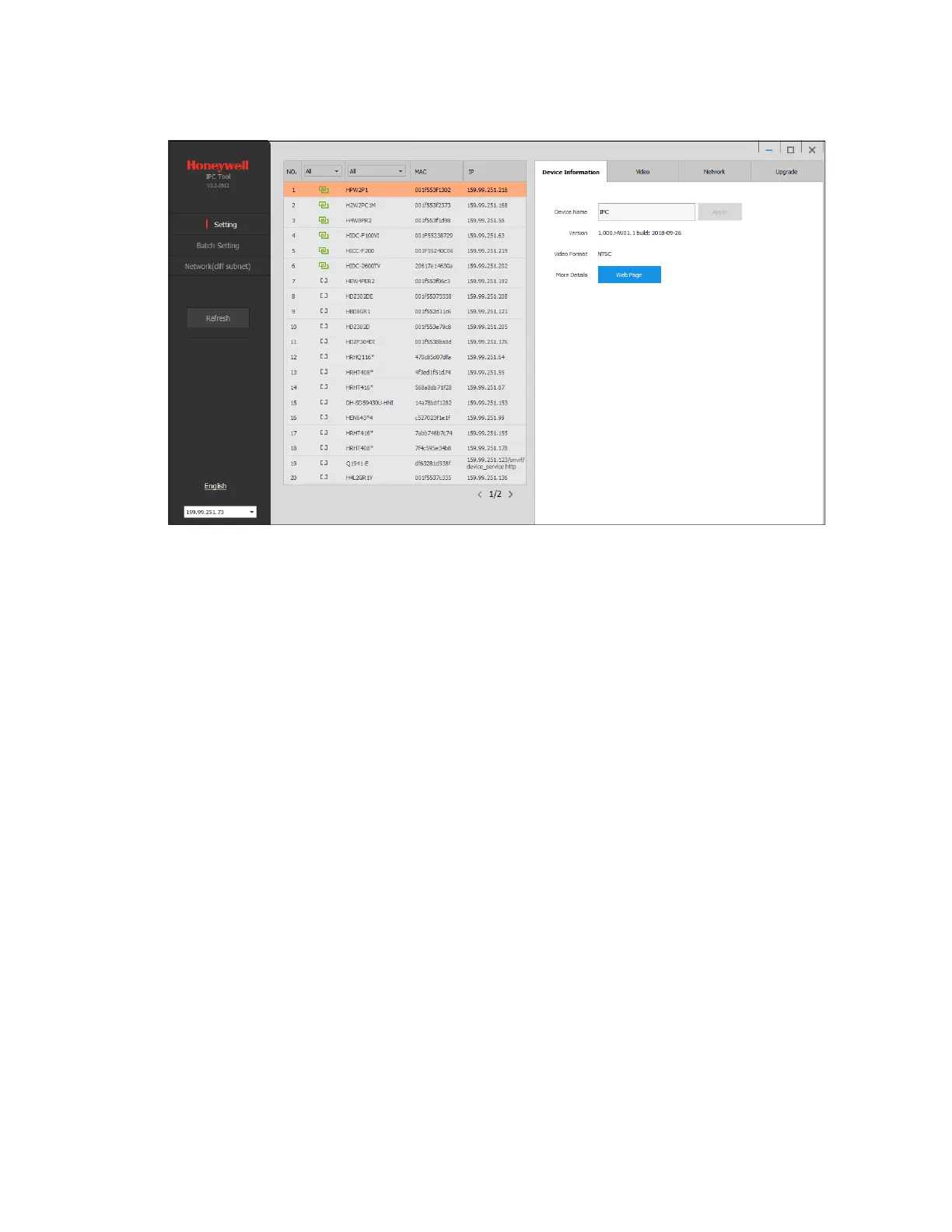

Figure 2-1 IPC Tool
Assigning a New IP Address to Your Camera
The current IP address of your camera appears in the IP column of the devices list. If you
want, you can assign a new static IP address to the camera.
To change the IP address of a single camera:
1. Select the camera that you want to configure from the devices list.
2. Click the Network tab.
3. Clear the DHCP check box.
4. Enter the new IP settings in the IP Address, Subnet Mask, and Default Gateway fields.
5. Click Apply to apply the settings.
To change the IP addresses of multiple cameras at the same time:
1. In the left-most pane of the IPC Tool utility, click Batch Setting.
2. Select all the cameras that you want to configure from the devices list.
3. Click the Network tab.
4. Do one of the following:
• To assign dynamic IP addresses, select the Set all to DHCP check box, and then click
Apply.
• To assign static IP addresses, enter the settings in IP Range, Subnet Mask, and
Default Gateway fields, and then click Apply.

Honeywell HBW4PER2 Specifications

General

Type	IP security camera
Certification	FCC Part 15B, EN 55032 EN 50130-4 EU: EN 60950-1 North America UL listed to UL/CSA 60950-1 EN 50581
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wi-Fi	No
Number of users	20 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/v6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL, FTP, SMTP, DHCP, PPPoE, UPnP, SNMP v2/v3, Bonjour, DNS, DDNS, IEEE 802.1X, QoS, NTP
Ethernet LAN (RJ-45) ports	1
Form factor	Bullet
Mounting type	Wall
Product color	Black, White
International Protection (IP) code	IP66
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Total megapixels	4 MP
Gain control type	Auto/Manual
Maximum resolution	2688 x 1520 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
White balance	Auto, Manual, Natural, Outdoor
Camera shutter type	Electronic
Camera shutter speed	1/3 - 1/100000 s
Minimum illumination	0.03 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	16 x
Focal length range	2.7 - 13.5 mm
Minimum aperture number	1.4
Signal-to-Noise Ratio (SNR)	45 dB
LED type	IR
Night vision distance	50 m
Power source type	DC, PoE
Power consumption (max)	11.74 W
Windows operating systems supported	Windows 7, Windows 7 Enterprise, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate
Compatible memory cards	MicroSDHC
Maximum memory card size	128 GB
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Width	214.8 mm
Height	90.4 mm
Weight	685 g
Package weight	860 g
