Honeywell HBW4PER2 Configuration Guide

Logging In and Viewing Live Video
7

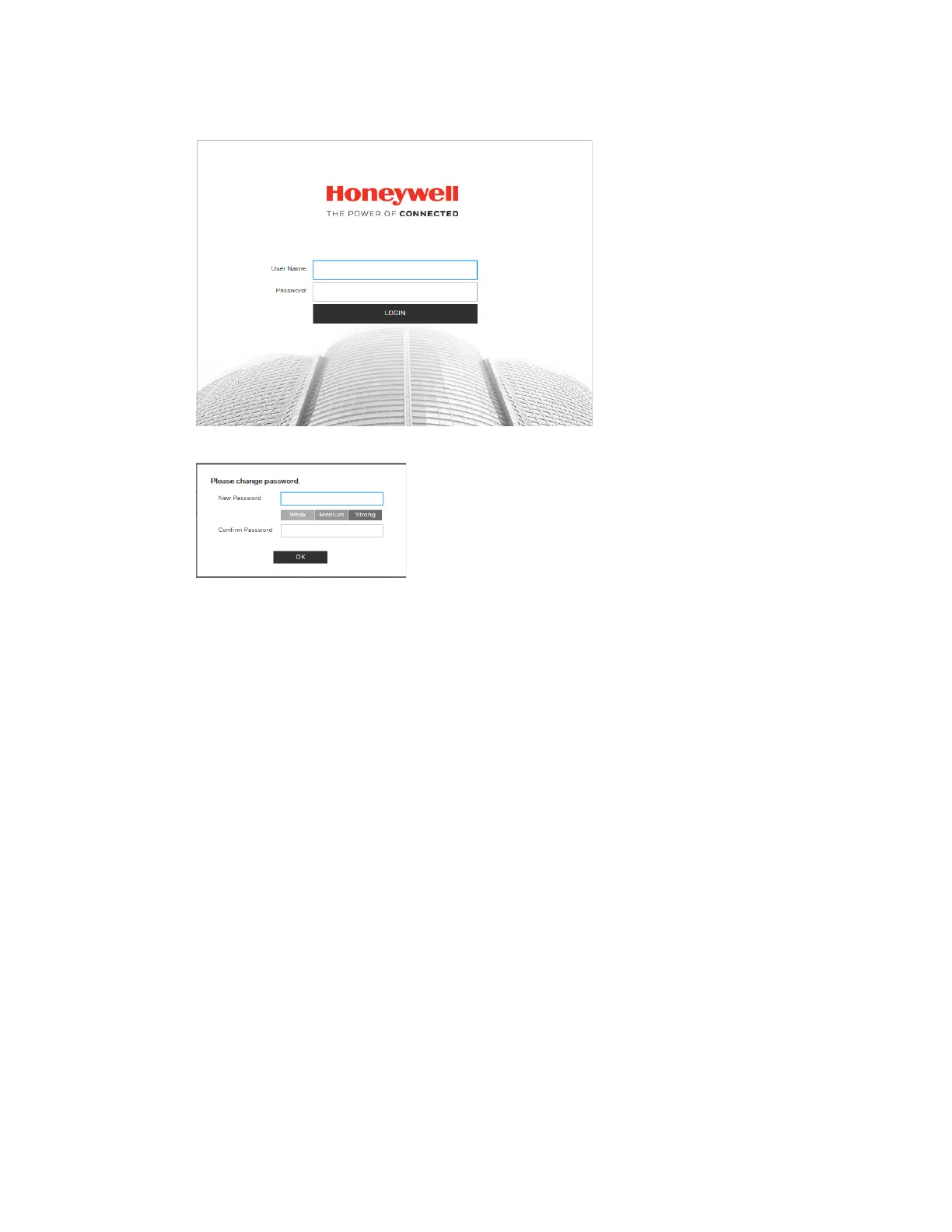

Figure 3-1 Login Interface
For security purposes, you are required to create a new secure password at the first login.
The password must be at least 8 characters long and contain at least one lowercase letter,
one number, and one special character. The password cannot be blank.
Installing the Browser Plug-In
If you are logging in for the first time, you will be prompted to download and install a browser
plug-in. Follow the on-screen instructions to install the plug-in. When the installation is
complete, the web client automatically refreshes and the Live View interface opens (Figure
3-4).
If this is your first time logging in, you will see the following message:
Click here to download and install the plug-in.
Perform the following steps to install the plug-in:
1. Click Click here to download and install the plug-in. The following window is displayed.
Click Continue to this website (not recommended).

Honeywell HBW4PER2 Specifications

General

Type	IP security camera
Certification	FCC Part 15B, EN 55032 EN 50130-4 EU: EN 60950-1 North America UL listed to UL/CSA 60950-1 EN 50581
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wi-Fi	No
Number of users	20 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/v6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL, FTP, SMTP, DHCP, PPPoE, UPnP, SNMP v2/v3, Bonjour, DNS, DDNS, IEEE 802.1X, QoS, NTP
Ethernet LAN (RJ-45) ports	1
Form factor	Bullet
Mounting type	Wall
Product color	Black, White
International Protection (IP) code	IP66
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Total megapixels	4 MP
Gain control type	Auto/Manual
Maximum resolution	2688 x 1520 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
White balance	Auto, Manual, Natural, Outdoor
Camera shutter type	Electronic
Camera shutter speed	1/3 - 1/100000 s
Minimum illumination	0.03 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	16 x
Focal length range	2.7 - 13.5 mm
Minimum aperture number	1.4
Signal-to-Noise Ratio (SNR)	45 dB
LED type	IR
Night vision distance	50 m
Power source type	DC, PoE
Power consumption (max)	11.74 W
Windows operating systems supported	Windows 7, Windows 7 Enterprise, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate
Compatible memory cards	MicroSDHC
Maximum memory card size	128 GB
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Width	214.8 mm
Height	90.4 mm
Weight	685 g
Package weight	860 g
