Playing Back Video
17

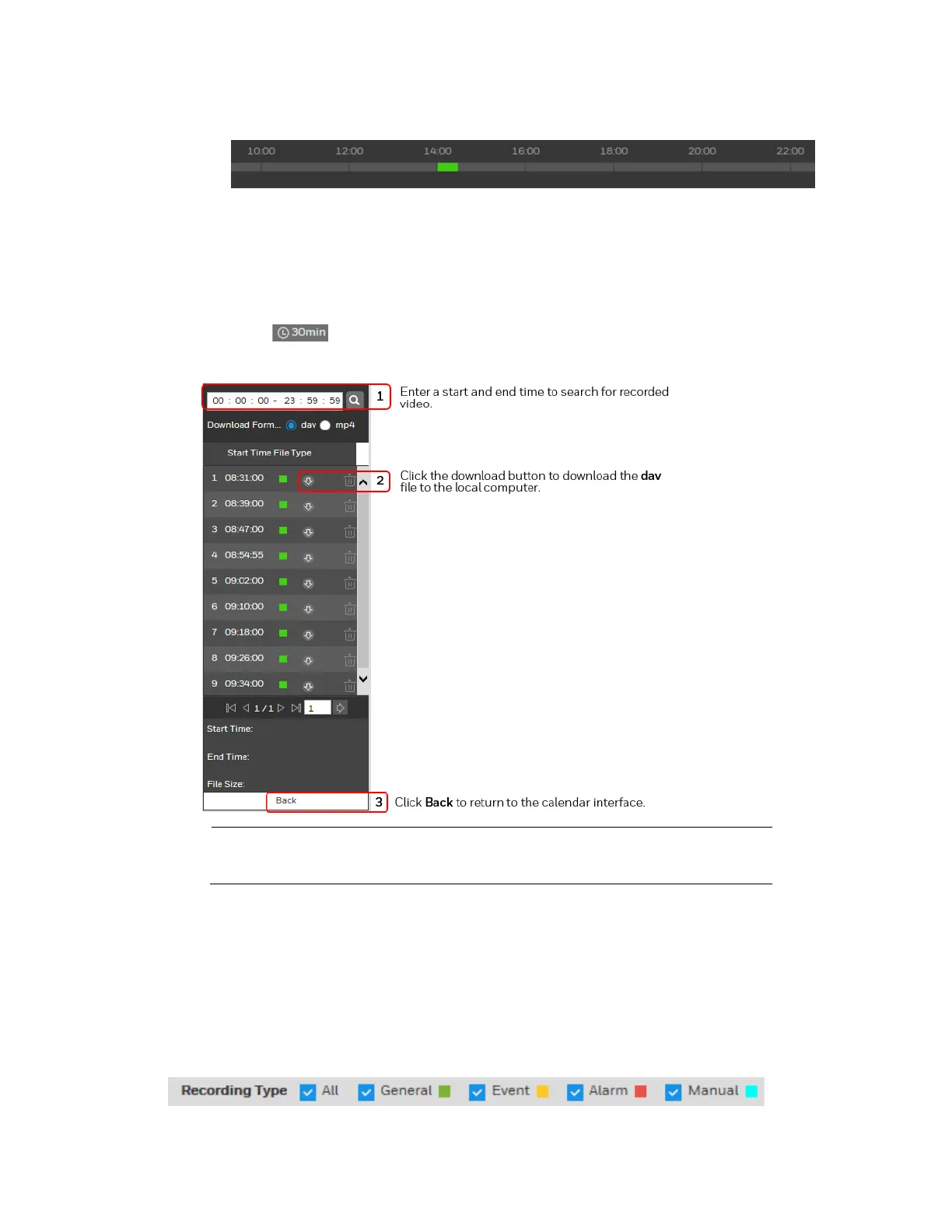

Figure 4-4 Recording Timeline
2. Below the calendar, click the File List button to narrow your search by time period and/or
by download format.
3. Play the file using one of the following methods:
In the file list, double-click the file that you want to play.
In the timeline, click a colored bar at the time that you want to start playing from
(click to zoom in on the timeline), and then click the Play button.
Figure 4-5 Playback File Details
Note
On the playback file interface, you can download a file to your local
PC.
Searching for a File by Recording Type
By selecting a recording file type, you can filter by a particular recording type so that the
timeline and file list display only those types of recorded files. You can also select the
recording type to display in the Playback interface. The filter is at the bottom of the Playback
interface.
Figure 4-6 Recording Type Filter in Playback

Table of Contents

Other manuals for Honeywell HBW4PER2

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Honeywell HBW4PER2 and is the answer not in the manual?

Honeywell HBW4PER2 Specifications

General IconGeneral
TypeIP security camera
CertificationFCC Part 15B, EN 55032 EN 50130-4 EU: EN 60950-1 North America UL listed to UL/CSA 60950-1 EN 50581
Day/night modeYes
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wi-FiNo
Number of users20 user(s)
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.3af
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4/v6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL, FTP, SMTP, DHCP, PPPoE, UPnP, SNMP v2/v3, Bonjour, DNS, DDNS, IEEE 802.1X, QoS, NTP
Ethernet LAN (RJ-45) ports1
Form factorBullet
Mounting typeWall
Product colorBlack, White
International Protection (IP) codeIP66
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Total megapixels4 MP
Gain control typeAuto/Manual
Maximum resolution2688 x 1520 pixels
Video compression formatsH.264, H.264+, H.265, H.265+
Analog signal format systemNTSC, PAL
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Minimum illumination0.03 lx
Sensor typeCMOS
Optical sensor size1/3 \
Digital zoom16 x
Focal length range2.7 - 13.5 mm
Minimum aperture number1.4
Signal-to-Noise Ratio (SNR)45 dB
LED typeIR
Night vision distance50 m
Power source typeDC, PoE
Power consumption (max)11.74 W
Windows operating systems supportedWindows 7, Windows 7 Enterprise, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate
Compatible memory cardsMicroSDHC
Maximum memory card size128 GB
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95 %
Sustainability certificatesRoHS
Weight and Dimensions IconWeight and Dimensions
Width214.8 mm
Height90.4 mm
Weight685 g
Package weight860 g
