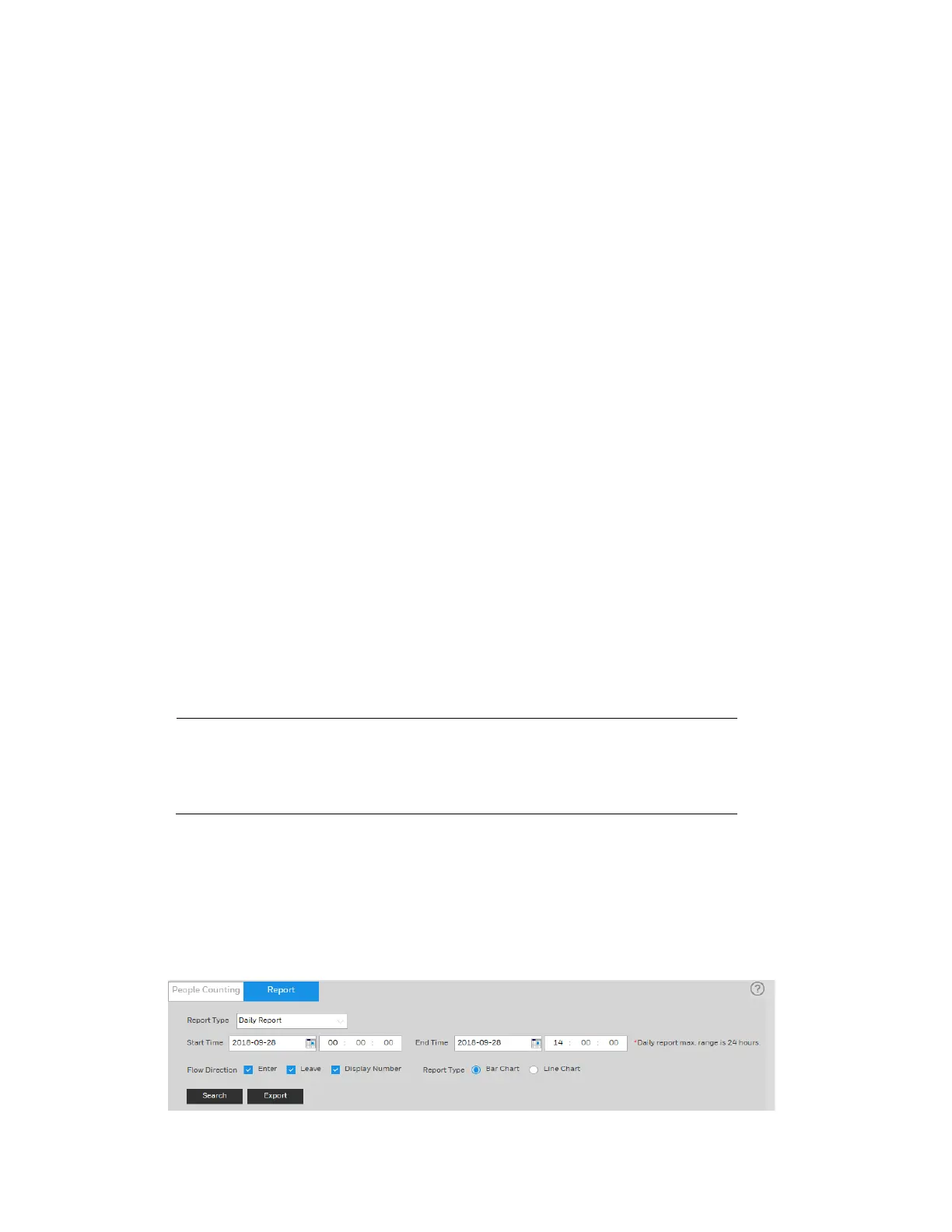

Configuring Video Analytics
55
To enable people counting:
1.
Select the Enable check box.
2.
Click Draw Rule to set up an area for people counting. You can move or resize the area
using
your mouse. To move the area, drag one of the sides. To resize the area, drag one of
the
corner handles.
3.
Click Draw Target to set up the target size. You can move or resize the area using
your
mouse. To move the area, drag one of the sides. To resize the area, drag one of the
corner
handles.
4.
To enable OSD which displays the Enter and Leave numbers, select the Enable OSD
check box. To restore the numbers, click Clear.
5.
Next to Alarm Period, click Setup. The Alarm Period window opens.
6.
Set the days and times when you want the alarm function to be active, and then click Save.
7.
In the Rule Name field, enter the name of rule.
8.
In the Direction field, select the direction of people counting. You can select A->B or B->A,
the arrow direction always means the entrance direction.
9.
In the People Counting Alarm field, set the enter number, leave number, stranded number.
It will trigger alarm when it exceeds the limited stranded number.
10.
To start recording video when an event is detected, select the Record check box.
11.
In the Record Delay field, enter the number of seconds that the system will continue to
record video after the event has ended. Enter a value between 10 and 300.
12.
To send an email notification when an event is detected, select the Send Email check
box.
Email settings must be configured in Setup
Network Setup SMTP (Email). See
Configuring SMTP (Email) Settings on page 37.
13.
To take a snapshot when an event is detected, select the Snapshot check box.
Note
For the snapshot to be attached to the email notification, the
Attachment check box must be selected in Setup
Network
Setup
SMTP (Email). See
Configuring SMTP (Email) Settings on
page 37.
14.
Click Save to apply the settings.
Report
Go to Setup Video Analytics People Counting Report.
