Configuring Camera Settings
29
Table 5-2 Snapshot Configurations
Parameter Function
Snapshot Type
Select from either General (schedule) or Event (activation).
General: Snapshots are taken according to a user-defined
schedule.
Event: Snapshots are taken whenever an alarm, motion
detection, camera tampering, or system event occurs.
Image Size
The image size is determined by the main stream resolution
setting. It is not configurable.
Quality
Set the Quality to a value between 1 (lowest) and 6
(highest).
Interval
Select a snapshot frequency between 1 snapshot per
second (1s) and 7 snapshots per second (7s), or click
Customized to define a custom setting between 1 and
50,000 seconds.
Note
See Path on page 30 for information about configuring where
snapshots are saved. Snapshots are saved as JPEGs.
Video Overlay
Go to Setup Camera Setup  Video Overlay.

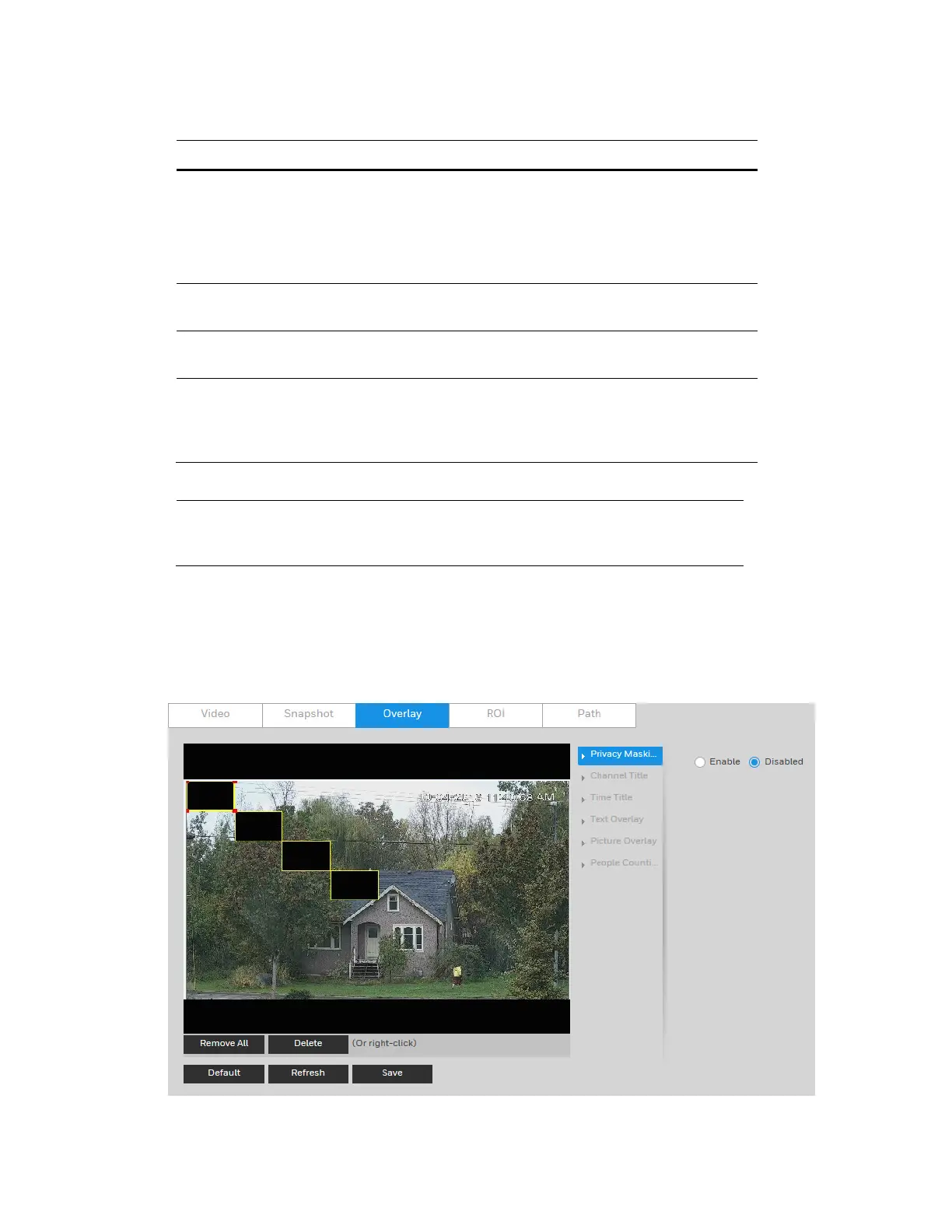

Figure 5-7 Video Overlay

Honeywell HBW4PER2 Specifications

General

Type	IP security camera
Certification	FCC Part 15B, EN 55032 EN 50130-4 EU: EN 60950-1 North America UL listed to UL/CSA 60950-1 EN 50581
Day/night mode	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wi-Fi	No
Number of users	20 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/v6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, SSL, FTP, SMTP, DHCP, PPPoE, UPnP, SNMP v2/v3, Bonjour, DNS, DDNS, IEEE 802.1X, QoS, NTP
Ethernet LAN (RJ-45) ports	1
Form factor	Bullet
Mounting type	Wall
Product color	Black, White
International Protection (IP) code	IP66
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Total megapixels	4 MP
Gain control type	Auto/Manual
Maximum resolution	2688 x 1520 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
White balance	Auto, Manual, Natural, Outdoor
Camera shutter type	Electronic
Camera shutter speed	1/3 - 1/100000 s
Minimum illumination	0.03 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	16 x
Focal length range	2.7 - 13.5 mm
Minimum aperture number	1.4
Signal-to-Noise Ratio (SNR)	45 dB
LED type	IR
Night vision distance	50 m
Power source type	DC, PoE
Power consumption (max)	11.74 W
Windows operating systems supported	Windows 7, Windows 7 Enterprise, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate
Compatible memory cards	MicroSDHC
Maximum memory card size	128 GB
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Width	214.8 mm
Height	90.4 mm
Weight	685 g
Package weight	860 g
