Honeywell 30 Series IP Cameras User Guide
time. By default, the start and end time of day mode are set to 07:00 and 18:00.
Sensitivity of IR: Adjust the responsiveness of the IR filter to lighting conditions as Low,
Normal, or High.
Configuring Video Settings
Go to Setup  Camera Setup  Video.
This section describes how to configure viewing window and video streaming properties
(format, resolution, frame rate, bit rate, I-frame interval and so on.).
Mode
Go to Setup  Camera Setup  Video  MODE.
In MODE tab, you can set the pixel mode for different cameras.
Note:
Changing the video mode will clear the following settings: privacy mask, exposure
widow, motion and focus window.

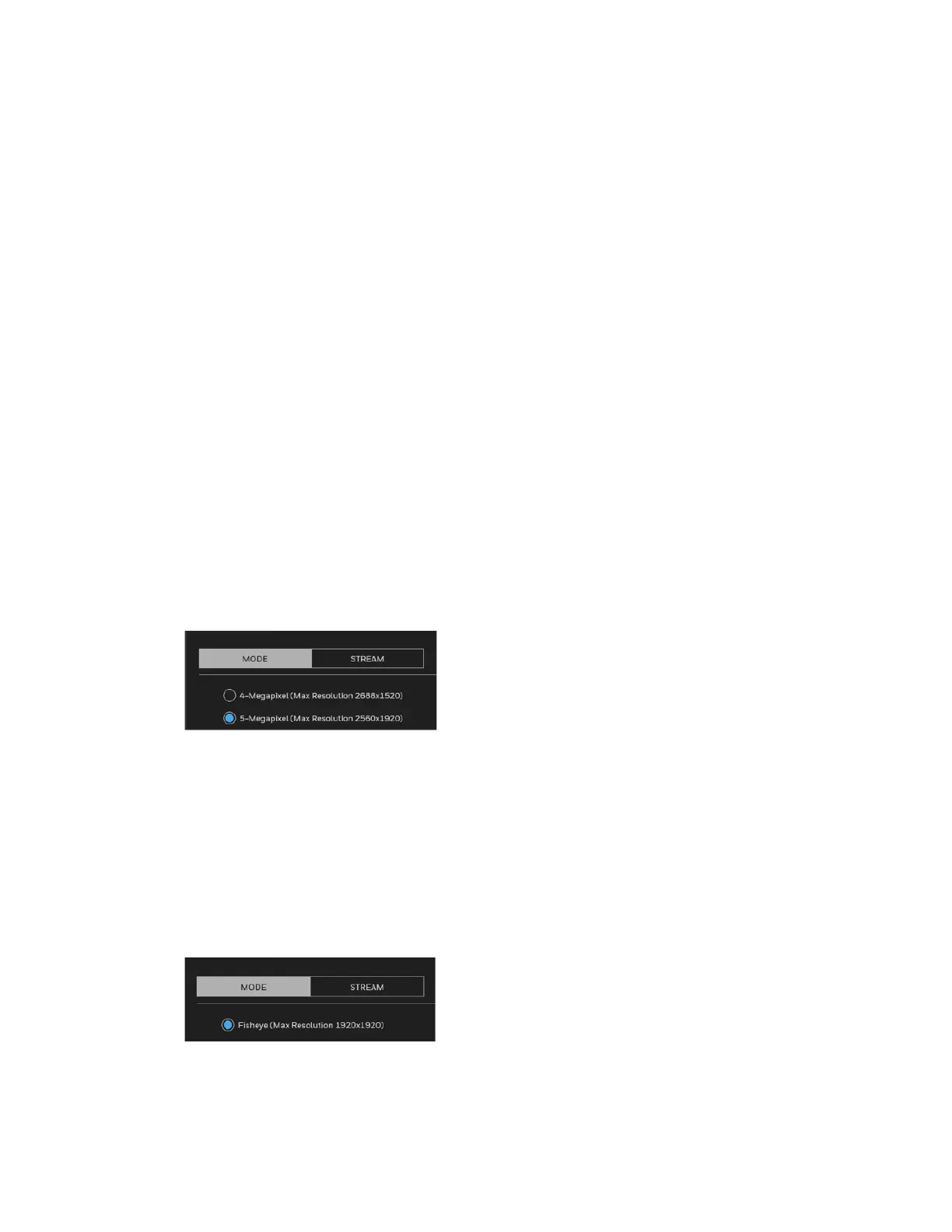

Figure 32 Mode Tab 1
4-Megapixel (Max Resolution 2688x1520): Select it and the maximum resolution will
be 2688x1520. The aspect ratio will be 16:9. This mode applies to
HC30W45R3/HC30W45R2/HC30WB5R1/HC30WB5R2/HC30WE5R3/
HC30WE5R2/HC30W25R3/HC30W25R3-12V cameras (see Figure 32).
5-Megapixel (Max Resolution 2560x1920): Select it and the maximum resolution will
be 2560x1920. The aspect ratio will be 4:3. This mode applies to
HC30W45R3/HC30W45R2/HC30WB5R1/HC30WB5R2/HC30WE5R3/
HC30WE5R2/HC30W25R3/HC30W25R3-12V cameras (see Figure 32).
Figure 33 Mode Tab 2
Fisheye (Max Resolution 1920x1920): Select it and the maximum resolution will be
1920x1080. This mode applies to HC30WF5R1 cameras (see Figure 33).

Honeywell HC30W45R2 Specifications

General

Windows operating systems supported	Windows 10, Windows 7
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	12.95 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Sensor type	CMOS
Optical sensor size	1/2.7 \
White balance	Auto, Manual
Minimum illumination	0.03 lx
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
Country of origin	Taiwan
International Protection (IP) code	IP66
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	30 m

Weight and Dimensions

Depth	99.8 mm
Width	133.3 mm
Weight	760 g
Package weight	1100 g
