37
Honeywell 30 Series IP Cameras User Guide
on a vehicle, and when it needs to adapt to fast changes of light when entering and
leaving a tunnel.

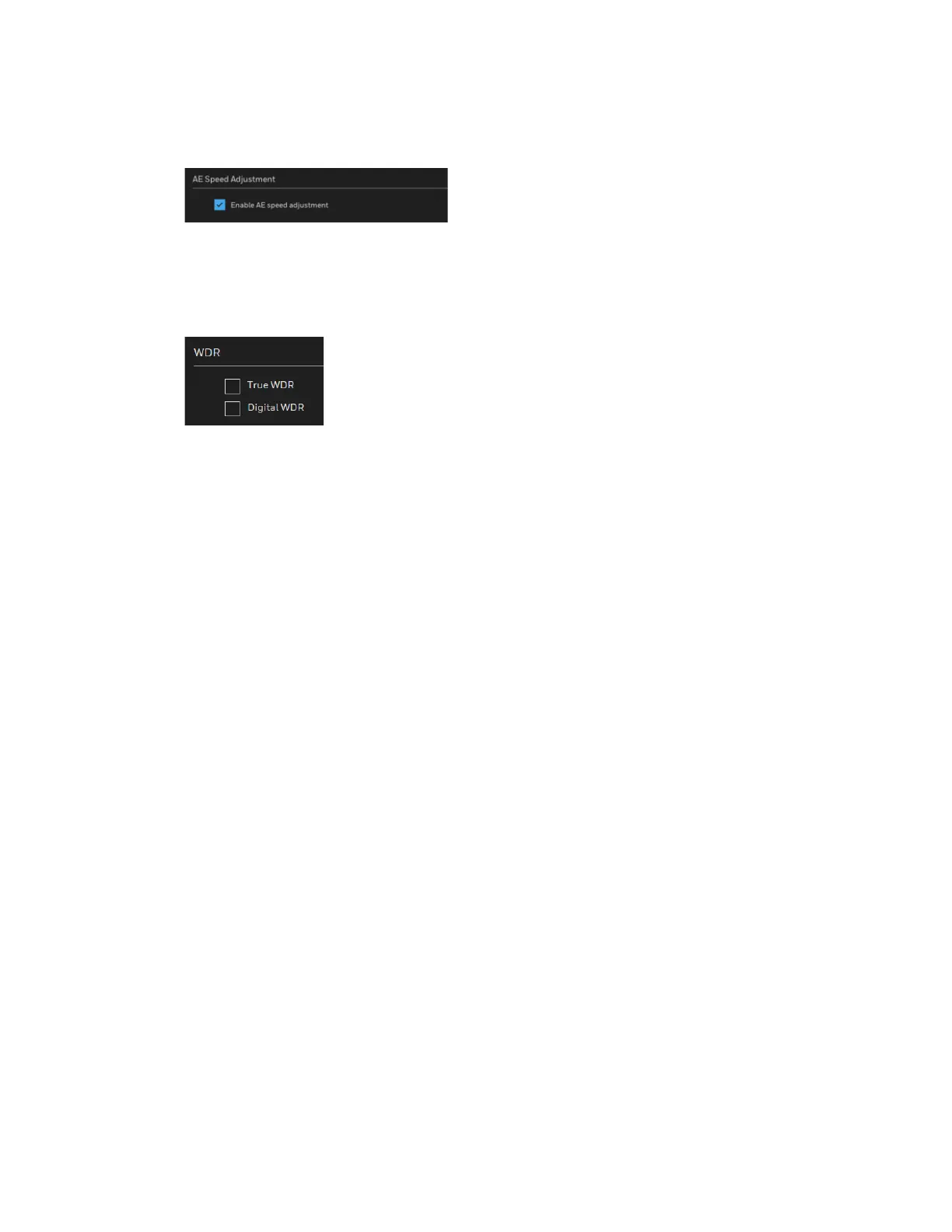

Figure 43 AE Speed Adjustment
WDR
Figure 44 WDR
True WDR: Check to enable the Wide Dynamic Range function which can capture
details in a high contrast environment. Use the slide bar to select the strength (from
Low to High), depending on the lighting condition at the installation site. You can select
a higher effect when the contrast is high (between the shaded area and the light behind
the objects).
Digital WDR: Check to enable the Digital Wide Dynamic Range function. Use the slide
bar to select the strength (from Low to High).
Digital WDR is a software-based technique that enhances the image quality by
adjusting the gamma value to brighten dark areas. True WDR is a sensor-based
technology. A True WDR CCTV can produce images with an extremely wide dynamic
range. The WDR image sensor can capture several images with short and long
exposures, then combining them into a single frame.
Configuring Focus
Focus here refers to the Remote Focus, applicable to the cameras that are equipped
with a stepping motor lens. The automated focus adjustment function eliminates the
needs to physically adjust camera focus. In an outdoor deployment consisting of many
cameras, the auto focus function can be very helpful when these cameras become out
of focus after days or weeks of operation. And that can easily result from the effects of
natural forces, e.g., shrink and expand due to a wide range of operating temperatures
and the vibration caused by wind.
Go to Setup Camera Setup Focus.

Table of Contents

Other manuals for Honeywell HC30W45R2

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Honeywell HC30W45R2 and is the answer not in the manual?

Honeywell HC30W45R2 Specifications

General IconGeneral
Windows operating systems supportedWindows 10, Windows 7
DC-in jackYes
Ethernet LAN (RJ-45) ports1
Lens diameter2.8 mm
Fixed focal length2 mm
Maximum aperture number2
DC output voltage12
Power source typeDC, PoE
Power consumption (max)12.95 W
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90 %
Wi-FiNo
Number of users10 user(s)
Ethernet interface typeGigabit Ethernet
Bit rate controlConstant Bit Rate (CBR)
Total megapixels5 MP
Gain control typeAuto
Maximum resolution2560 x 1920 pixels
Video formats supportedH.264, H.265
Analog signal format systemNTSC, PAL
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size256 GB
Sensor typeCMOS
Optical sensor size1/2.7 \
White balanceAuto, Manual
Minimum illumination0.03 lx
IK codeIK10
Form factorSpherical
Mounting typeCeiling/wall
Product colorBlack, White
Country of originTaiwan
International Protection (IP) codeIP66
TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
Maximum operating distance30 m
Weight and Dimensions IconWeight and Dimensions
Depth99.8 mm
Width133.3 mm
Weight760 g
Package weight1100 g
