Honeywell 30 Series IP Cameras User Guide

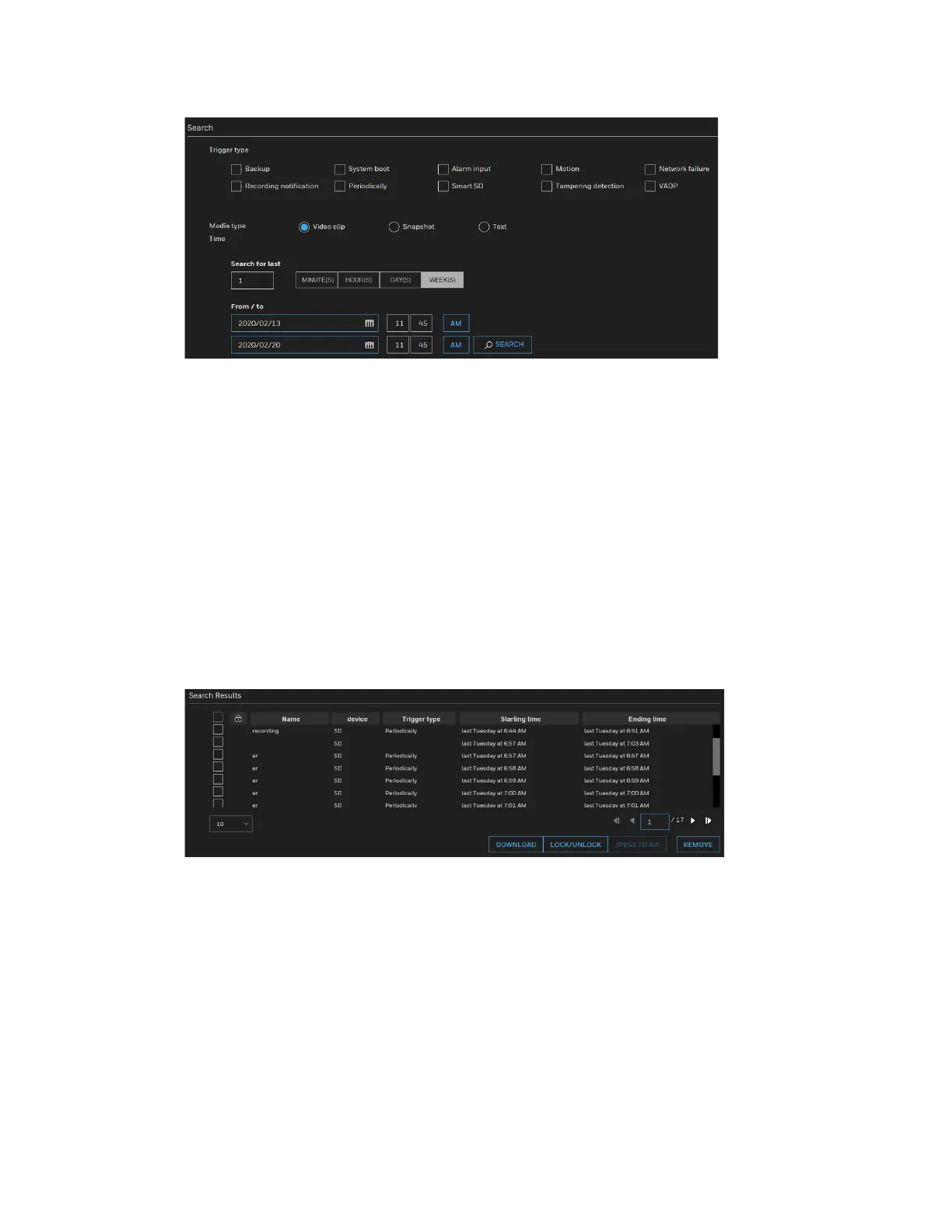

Figure 85 Search the Records
• Trigger Type: Select one or more trigger types.
• Media Type: Select a media type (Video clip, snapshot or text).
• Time: Manually enter the time range you want to search for contents created at a
specific point in time.
Click SEARCH and the recorded data corresponding to the search criteria will be listed
in Search Results tab.
Search Results
The following is an example of search results. To sort the search results, click each
column header.
Figure 86 Search Results
• Play: Click on a search result and a Play window will be displayed for immediate
review of the selected file.

Honeywell HC30W45R2 Specifications

General

Windows operating systems supported	Windows 10, Windows 7
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	12.95 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Sensor type	CMOS
Optical sensor size	1/2.7 \
White balance	Auto, Manual
Minimum illumination	0.03 lx
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
Country of origin	Taiwan
International Protection (IP) code	IP66
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	30 m

Weight and Dimensions

Depth	99.8 mm
Width	133.3 mm
Weight	760 g
Package weight	1100 g
