Honeywell 30 Series IP Cameras User Guide
You can configure a different audio detection setting in the PROFILE tab. For example,
a place can be noisy in the day time and become very quiet in the night.
1. Check Enable this profile. Once the Audio detection window is opened, the current
sound input will be interactively indicated by a fluctuating white wave diagram.
2. Drag the Alarm level slider to a preferred location on the left slide bar.
3. Check the Night mode or Schedule mode. You may also manually configure a period
of time during which this profile will take effect.
4. Click SAVE.
Note:
If the Alarm level and the received volume are set within a range of 20% on the
wave diagram, frequent alarms will be triggered. It is recommended to set the
Alarm level farther apart from the detected sound level.
•
To configure and enable this feature, you must not configure video stream #1
into Motion JPEG. If an external microphone input is connected and recording
of audio stream is preferred, audio stream is transmitted between camera and
viewer/recording station along with stream #1.
Configuring Event Settings
Go to Setup Video Analytics Event Settings.
This section describes how to configure the camera to respond to some situations
(events). A typical application is that when a motion is detected, the camera sends
buffered images to an e-mail address as notifications. Click Help, there is an illustration
shown in the pop-up window explaining that an event can be triggered by many sources,
such as motion detection or external digital input devices. When an event is triggered,
you can specify what type of action that will be performed. You can configure the
camera to send snapshots or videos to your email address.

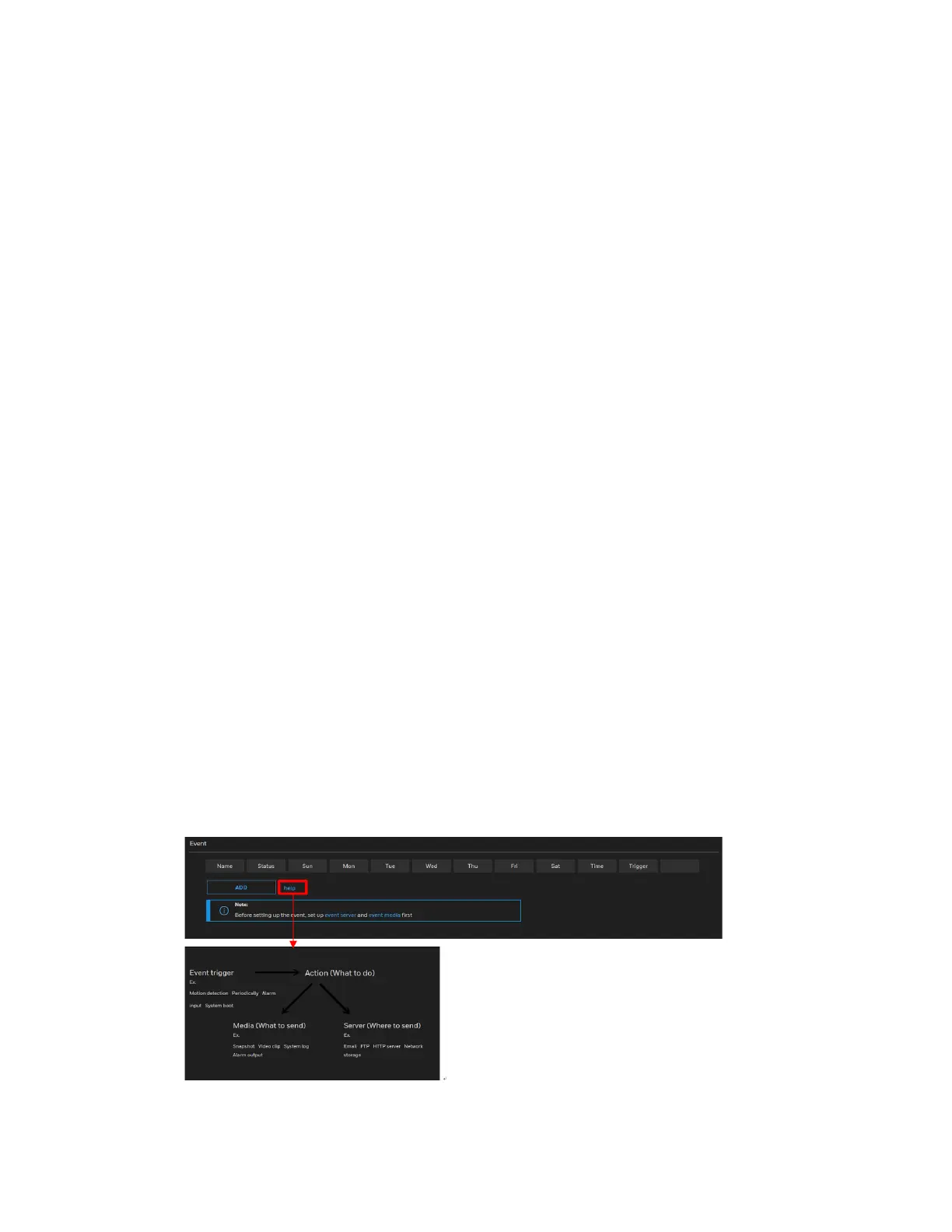

Figure 71 Event Settings
