Honeywell 30 Series IP Cameras User Guide
Pixel Calculator (Fisheye Model Only)
With the pixel calculator feature, you can estimate a coverage area, the distance from
the subject, and place a ruler or an object of known size. You can then draw a calculator
frame to cover the subject of your interest.
Go to Setup  Camera Setup  Pixelcount.

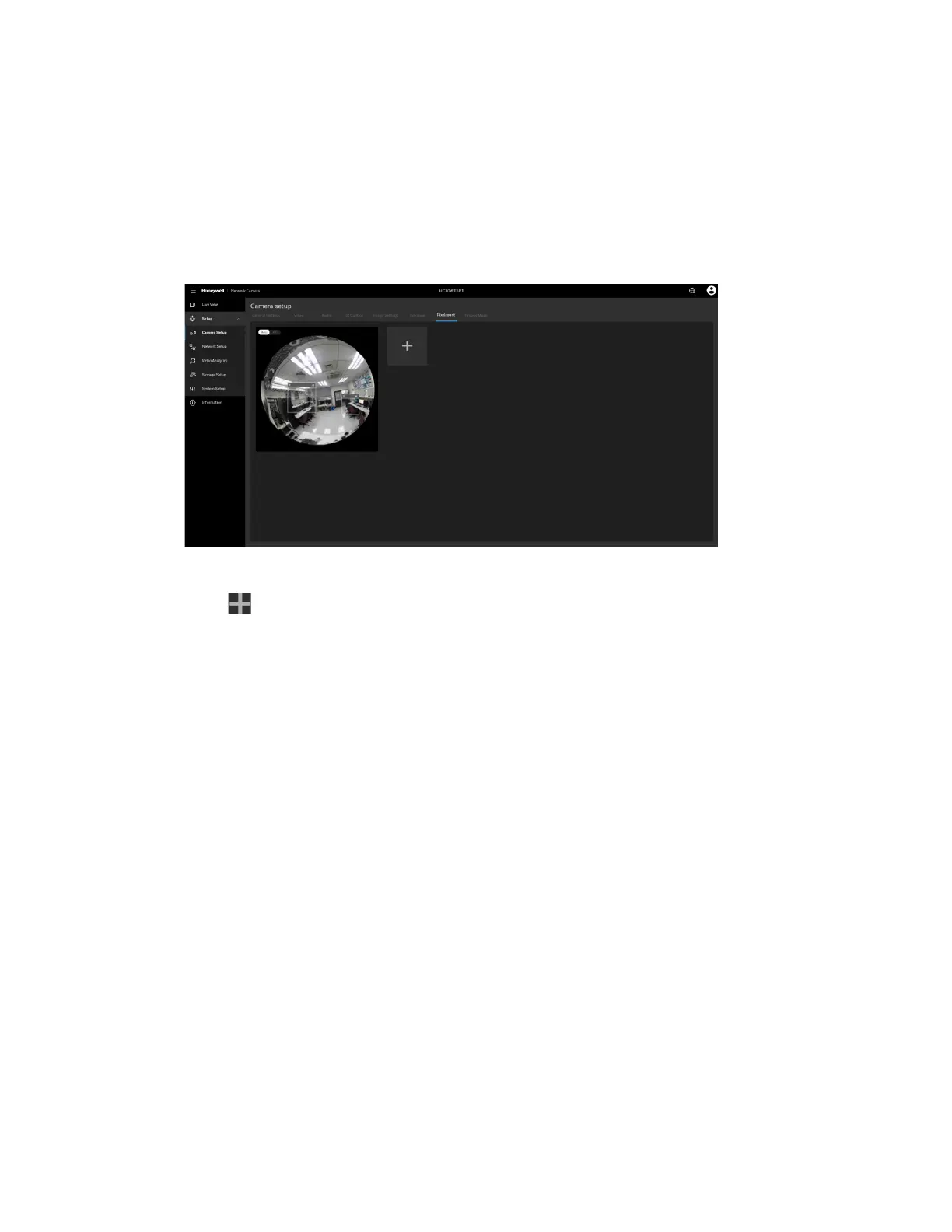

Figure 47 Pixel Calculator
Perform the following steps to use the pixel calculator feature:
1. Click to create a pixel calculator window.
2. Move it to an area of your interest.
3. Place the cursor to the right bottom corner of window and drag the corner to change
the size of window.
4. The calculated numbers will be listed at the lower screen. You can see if the current
setting fulfills your requests for the number of pixels. For instance, for recognizing the
faces of persons passing through a location. A facial recognition usually requires
around 130 pixels per meter or higher.
If your current configuration cannot fulfill a requirement, you can raise the resolution of
the stream, use the stream that fulfill the requirement or lower the installation height of
camera.

Honeywell HC30W45R2 Specifications

General

Windows operating systems supported	Windows 10, Windows 7
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	12.95 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Sensor type	CMOS
Optical sensor size	1/2.7 \
White balance	Auto, Manual
Minimum illumination	0.03 lx
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
Country of origin	Taiwan
International Protection (IP) code	IP66
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	30 m

Weight and Dimensions

Depth	99.8 mm
Width	133.3 mm
Weight	760 g
Package weight	1100 g
