Honeywell HC30W45R2 User Manual

65
Honeywell 30 Series IP Cameras User Guide

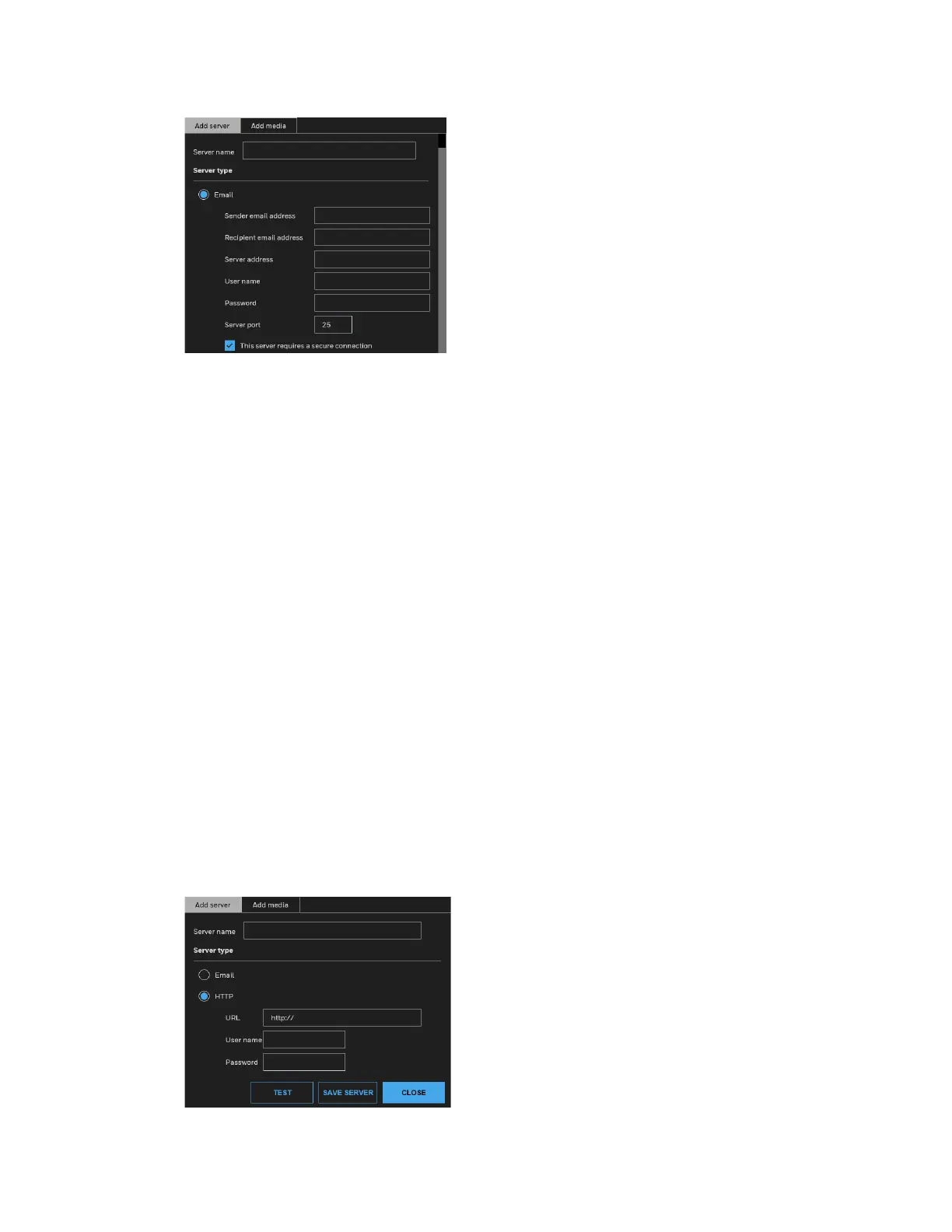

Figure 76 Server Type - Email
• Server name: Enter a name for the server setting.
• Sender email address: Enter the email address of the sender.
• Recipient email address: Enter the email address of the recipient.
• Server address: Enter the domain name or IP address of the email server.
• User name: Enter the user name of the email account if necessary.
• Password: Enter the password of the email account if necessary.
• Server port: The default mail server port is set to 25. You can also manually set
another port.
• If your SMTP server requires a secure connection (SSL), select This server requires a
secure connection.
• To verify if the email settings are correctly configured, click TEST. The result will be
shown in a pop-up window. If successful, you will also receive an email indicating the
result.
Click SAVE SERVER to enable the settings.
After you configure the first event server, the new event server will be automatically
display on the Server list. If you wish to add other server options, click Add server.
Server type - HTTP
Select to send the media files to an HTTP server when a trigger is activated.
Figure 77 Server Type – HTTP
• Server name: Enter a name for the

Honeywell HC30W45R2 Specifications

General

Windows operating systems supported	Windows 10, Windows 7
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	12.95 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Sensor type	CMOS
Optical sensor size	1/2.7 \
White balance	Auto, Manual
Minimum illumination	0.03 lx
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
Country of origin	Taiwan
International Protection (IP) code	IP66
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	30 m

Weight and Dimensions

Depth	99.8 mm
Width	133.3 mm
Weight	760 g
Package weight	1100 g
