55
Honeywell 30 Series IP Cameras User Guide

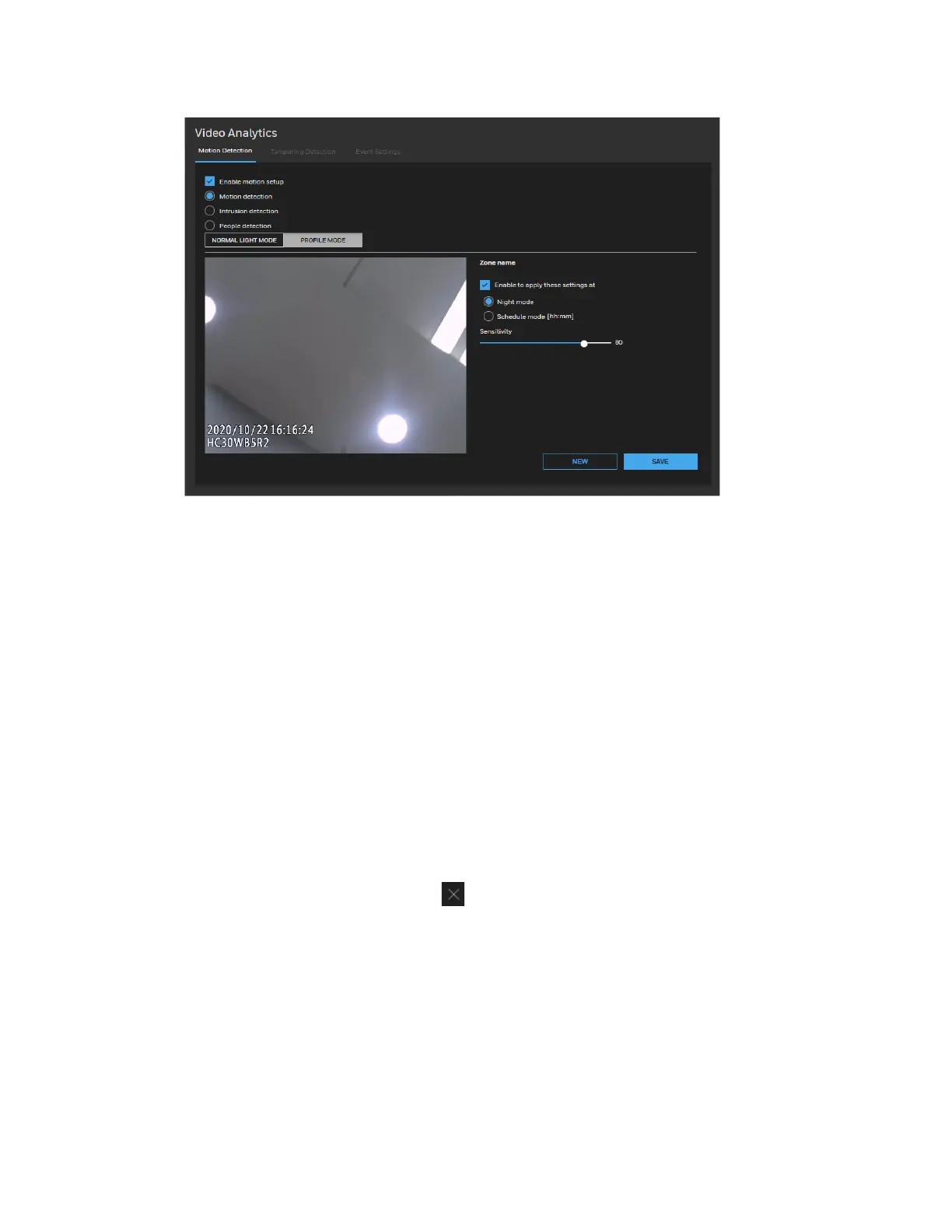

Figure 64 Motion Detection
Motion Detection
The Motion Detection detects motions in customized windows. If a motion is detected,
the frame of the customized window will become flashing red.
To enable motion detection:
1. Click NEW to add a new motion detection window.
2. In the Window Name text box, enter a name for the motion detection window.
a. Draw a detection area by clicking four corner points on the target area. You can
change the shape of the detection area by dragging the corner points.
b. Drag the object size slider to change the minimum size of item to trigger an
alarm. An object size box will appear in the center of screen for your reference
(in semi-transparent red). An intruding object must be larger than the Object
size to trigger an alarm. Change the object size according to the live view.
c. To delete a window, click on the right of the window name.
d. Define the sensitivity to moving objects by moving the Sensitivity slider. A high
sensitivity is prone to produce false alarms such as the fast changes of light
(such as day/night mode switch, turning lights on/off). A movement must
persist longer than 0.3 second for the motion to be detected.
3. Click SAVE to enable the settings.
4. Select Enable motion detection to enable this function.
