Honeywell 30 Series IP Cameras User Guide
server setting.
• URL: Enter the URL of the HTTP server.
• User name: Enter the user name if necessary.
• Password: Enter the password if necessary.
To verify if the HTTP settings are correctly configured, click TEST. The result will be
shown in a pop-up window. If successful, you will receive a test.txt file on the HTTP
server.
Click SAVE SERVER to enable the settings.
Add Media
Click Add media to open the media setting window. You can specify the type of media
that will be sent when a trigger is activated. There are three choices of media types
available: Snapshot, Video Clip, and System log. Select the item to display the detailed
configuration options. You can configure either one or all of them.

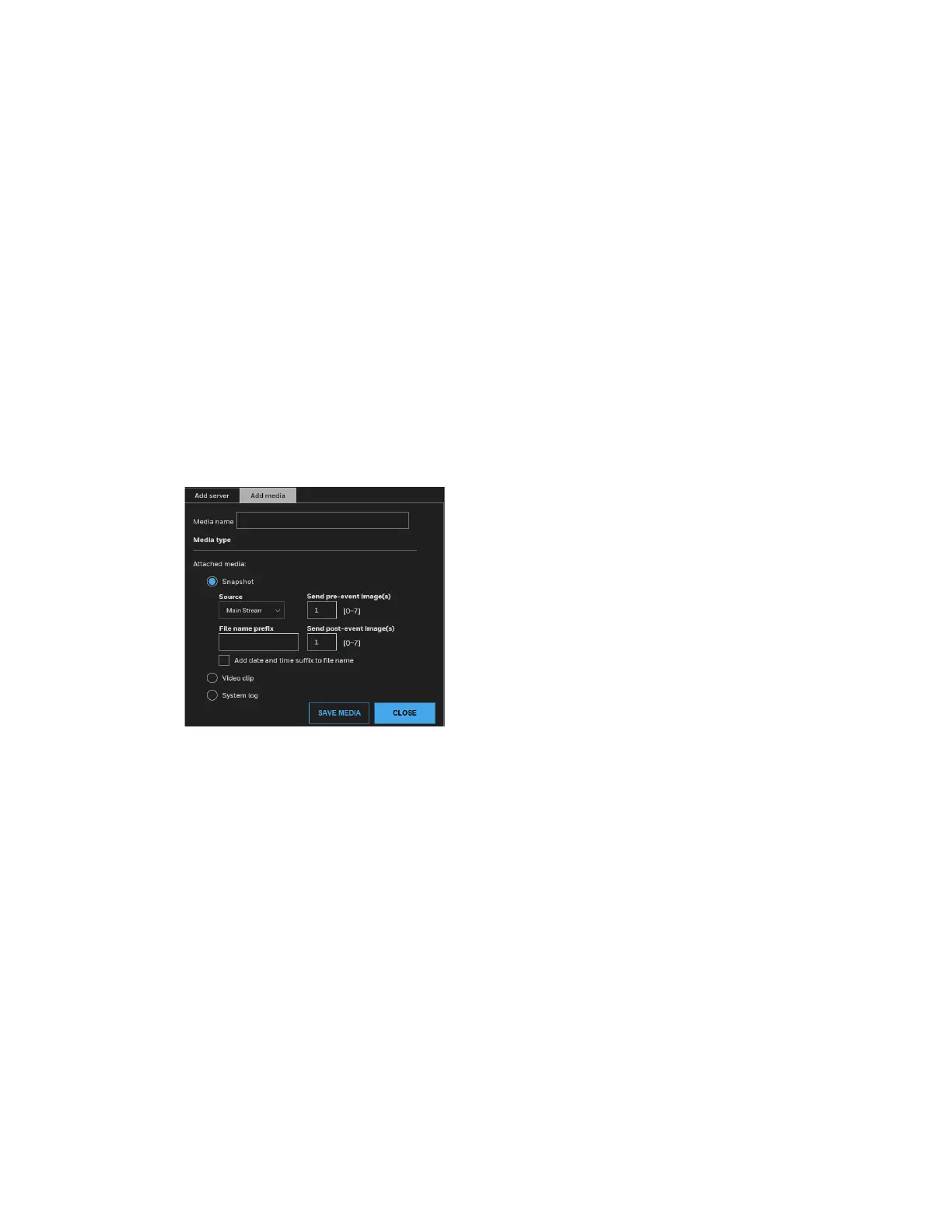

Figure 78 Add Media
Media type - Snapshot
Select to send snapshots when a trigger is activated.
• Media name: Enter a name for the media setting.
• Source: Select to take snapshots from any of the video streams.
• Send pre-event image(s)
The camera has a buffer to temporarily hold data up to a certain limit. Enter a number to
decide how many images to capture before a trigger is activated. Up to 7 images can be
generated.
• Send post-event image(s)
Enter a number to decide how many images to capture after a trigger is activated. Up to
7 images can be generated.
For example, if both the Send pre-event images and Send post-event images are set to
7, a total of 15 images can be generated after a trigger is activated.
• File name prefix

Honeywell HC30W45R2 Specifications

General

Windows operating systems supported	Windows 10, Windows 7
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	12.95 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Sensor type	CMOS
Optical sensor size	1/2.7 \
White balance	Auto, Manual
Minimum illumination	0.03 lx
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
Country of origin	Taiwan
International Protection (IP) code	IP66
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	30 m

Weight and Dimensions

Depth	99.8 mm
Width	133.3 mm
Weight	760 g
Package weight	1100 g
