Honeywell 30 Series IP Cameras User Guide

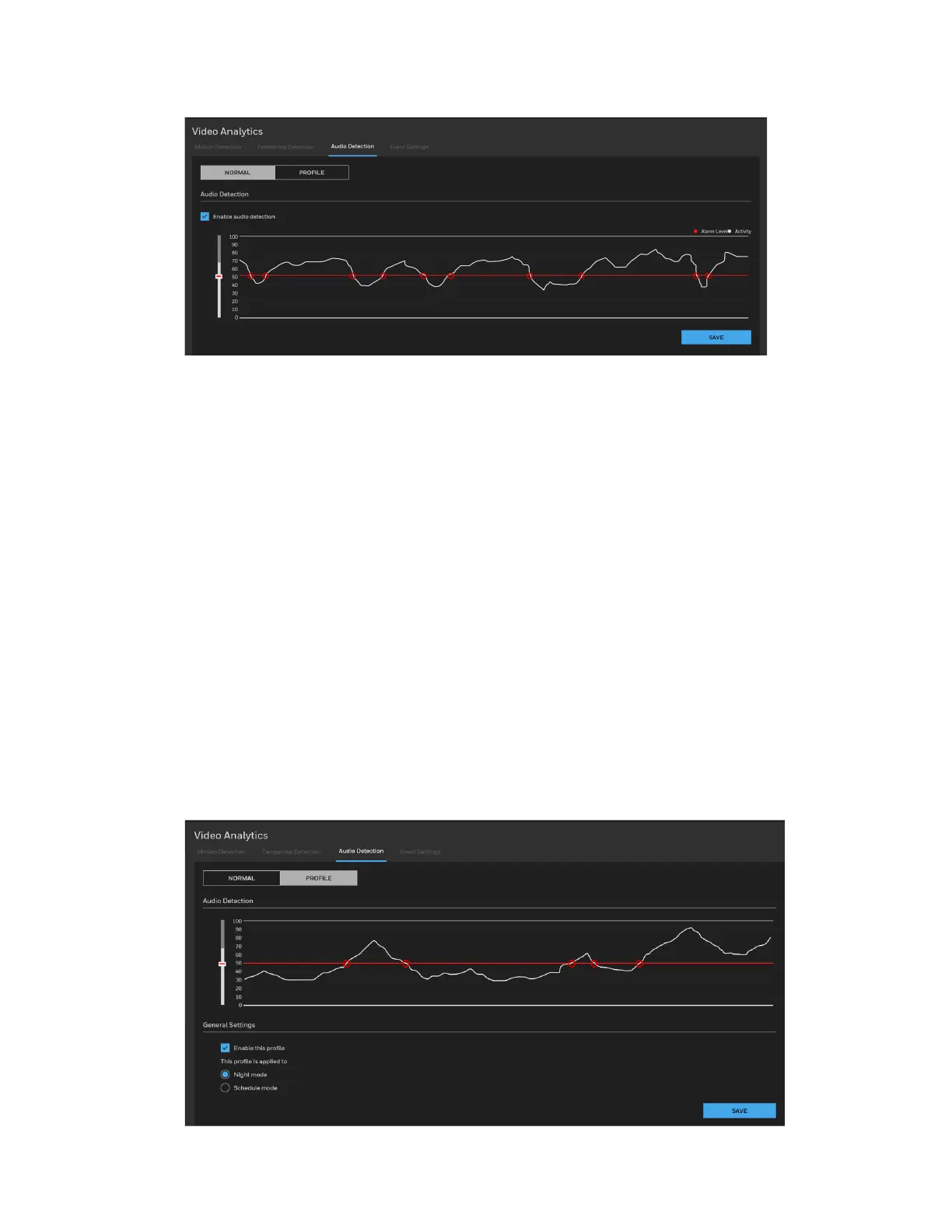

Figure 69 Audio Detection: NORMAL Tab
The red circles indicate where the audio alarms can be triggered when exceeding or
falling below the preset threshold.
Perform the following steps to configure Audio detection in the NORMAL tab:
1. Once the Audio detection window is opened, the current sound input will be
interactively indicated by a fluctuating white wave diagram.
2. Drag the Alarm level slider to a preferred location on the left slide bar.
3. Check Enable audio detection and click SAVE.
Note:
• The volume numbers (0~100) on the left side of wave diagram does not
represent decibel (dB). Sound intensity level has already been mapped to preset
values. You can, however, use the real-world inputs at your installation site that
are shown on the wave diagram to configure an alarm level.
• To configure this feature, you must not mute the audio in Setup Camera
Setup  Audio. The default of the camera can be muted due to the lack of an
internal microphone. An external microphone is provided by users.
Figure 70 Audio Detection: PROFILE Tab

Honeywell HC30W45R2 Specifications

General

Windows operating systems supported	Windows 10, Windows 7
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Lens diameter	2.8 mm
Fixed focal length	2 mm
Maximum aperture number	2
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	12.95 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 90 %
Wi-Fi	No
Number of users	10 user(s)
Ethernet interface type	Gigabit Ethernet
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	5 MP
Gain control type	Auto
Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264, H.265
Analog signal format system	NTSC, PAL
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 2560 x 1920
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Sensor type	CMOS
Optical sensor size	1/2.7 \
White balance	Auto, Manual
Minimum illumination	0.03 lx
IK code	IK10
Form factor	Spherical
Mounting type	Ceiling/wall
Product color	Black, White
Country of origin	Taiwan
International Protection (IP) code	IP66
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Maximum operating distance	30 m

Weight and Dimensions

Depth	99.8 mm
Width	133.3 mm
Weight	760 g
Package weight	1100 g
