Honeywell Hyperion 1300G User Manual

10 - 2

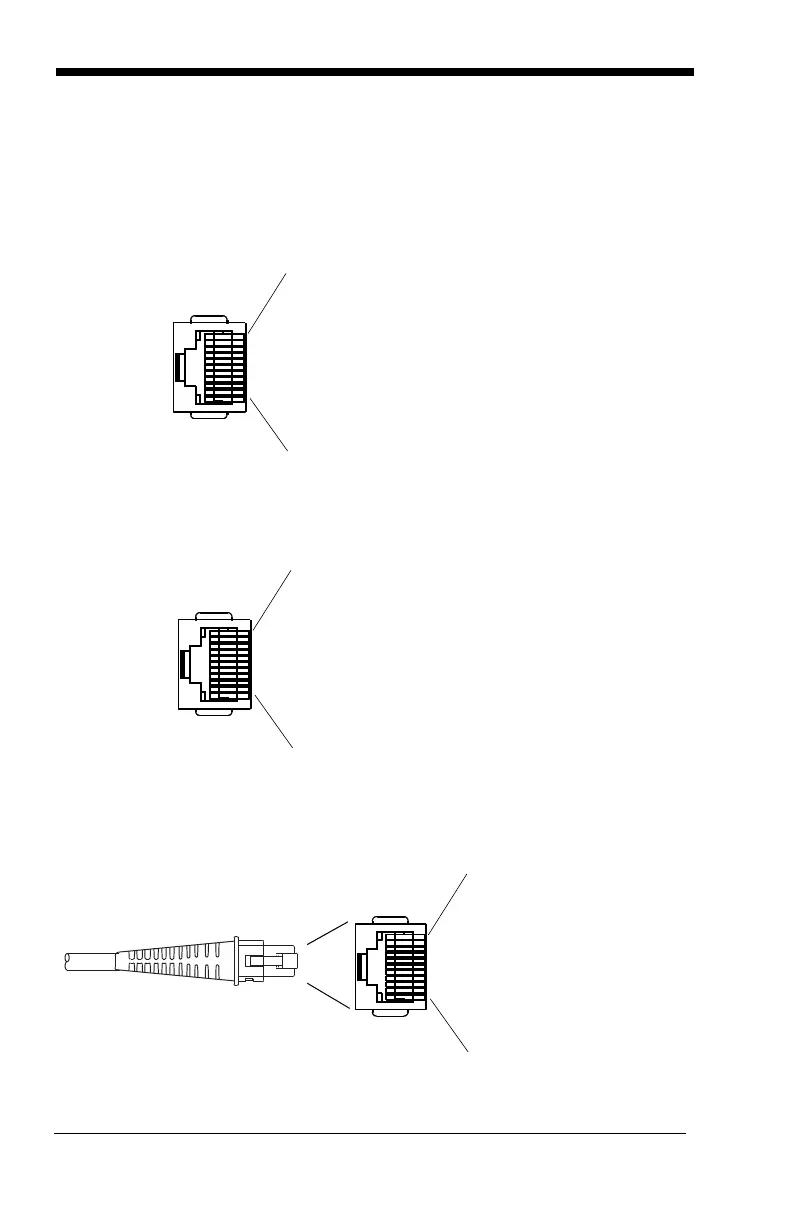

Standard Connector Pinouts
Keyboard Wedge
10 Pin RJ41 Modular Plug - connects to the scanner handle
Serial Output
10 Pin RJ41 Modular Plug - connects to the scanner handle
USB
10 Pin Modular Plug - connects to the scanner handle
1 Cable shield
2 Tied to supply power
3 Supply ground
4 Terminal data
5 Terminal clock
6 Keyboard clock
7 Supply power input +5V power
8 Keyboard data
9
10
1 Cable shield
2 Tied to supply power
3 Supply ground
4 Transmit data
5 Receive clock
6CTS
7 Supply power input +5V power
8RTS
9
10
1 Cable shield
2
3 Supply ground
4
5
6
7 Supply power input
+5V power
8
9Data +
10 Data -

Honeywell Hyperion 1300G Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D
Maximum range	0.66 m
Read rate (max)	270 reads/s
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 70000 lx
Cable length	3 m
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	200 mA
Safety	RoHS, CE
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	112 mm
Width	79 mm
Height	150 mm
Weight	160 g
