5 - 2
Step 3. Terminal Type
Refer to the Supported Terminals Chart (page 5-4) and locate the Ter-
minal ID number for your PC. Scan three numeric bar codes on the
inside back cover to program the scanner for your terminal ID (you must
enter 3 digits). For example, scan 0 0 3 for an AT wedge.
Note: The wildcard for all terminal types is 099.
Step 4. Code I.D.
In Appendix A find the symbology to which you want to apply the data
format. Locate the Hex value for that symbology and scan the 2 digit
hex value from the inside the back cover of this manual.
Step 5. Length
Specify what length (up to 9999 characters) of data will be acceptable
for this symbology. Scan the four digit data length from the inside the
back cover of this manual. (Note: 50 characters is entered as 0050.
9999 is a universal number, indicating all lengths.)
Step 6. Editor Commands
Refer to the Format Editor Commands Chart (page 5-4). Scan the
symbols that represent the command you want to enter. 94 alphanu-
meric characters may be entered for each symbology data format.
Step 7. Scan Save from the inside the back cover of this manual to save your
entries.
Other Programming Selections
• Clear One Data Format
This deletes one data format for one symbology. If you are clearing the
primary format, scan 0 from the inside the back cover of this manual. If you
are clearing an alternate format, scan 1, 2, or 3, depending on the alternate

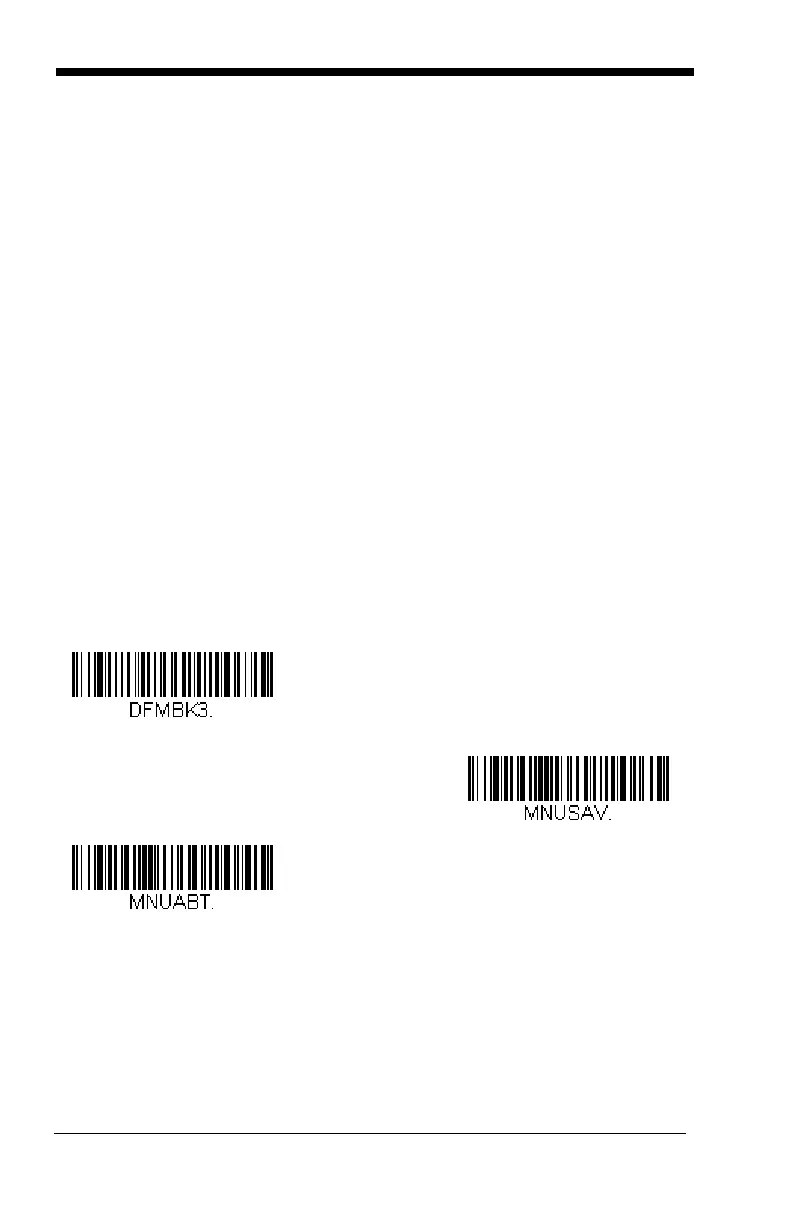

Enter Data Format
Save
Discard
To Next Page
