RS-232 Handshaking
RS232 Handshaking allows control of data transmission from the scanner using
software commands from the host device. When RTS/CTS is turned Off, no
data flow control is used.
RTS/CTS
The scanner asserts RTS when it has data to send, and waits indefinitely for
CTS to be asserted by the host.
Default = RTS/CTS Off.
XON/XOFF
Standard ASCII control characters can be used to tell the scanner to start send-
ing data (XON/XOFF On) or to stop sending data (XON/XOFF Off). When the
host sends the XOFF character (DC3, hex 13) to the scanner, data transmission
stops. To resume transmission, the host sends the XON character (DC1, hex
11). Data transmission continues where it left off when XOFF was sent.
Default = XON/XOFF Off .
ACK/NAK
After transmitting data, the scanner waits for an ACK character (hex 06) or a
NAK character (hex 15) response from the host. If ACK is received, the commu-
nications cycle is completed and the scanner looks for more bar codes. If NAK
is received, the last set of bar code data is retransmitted and the scanner waits

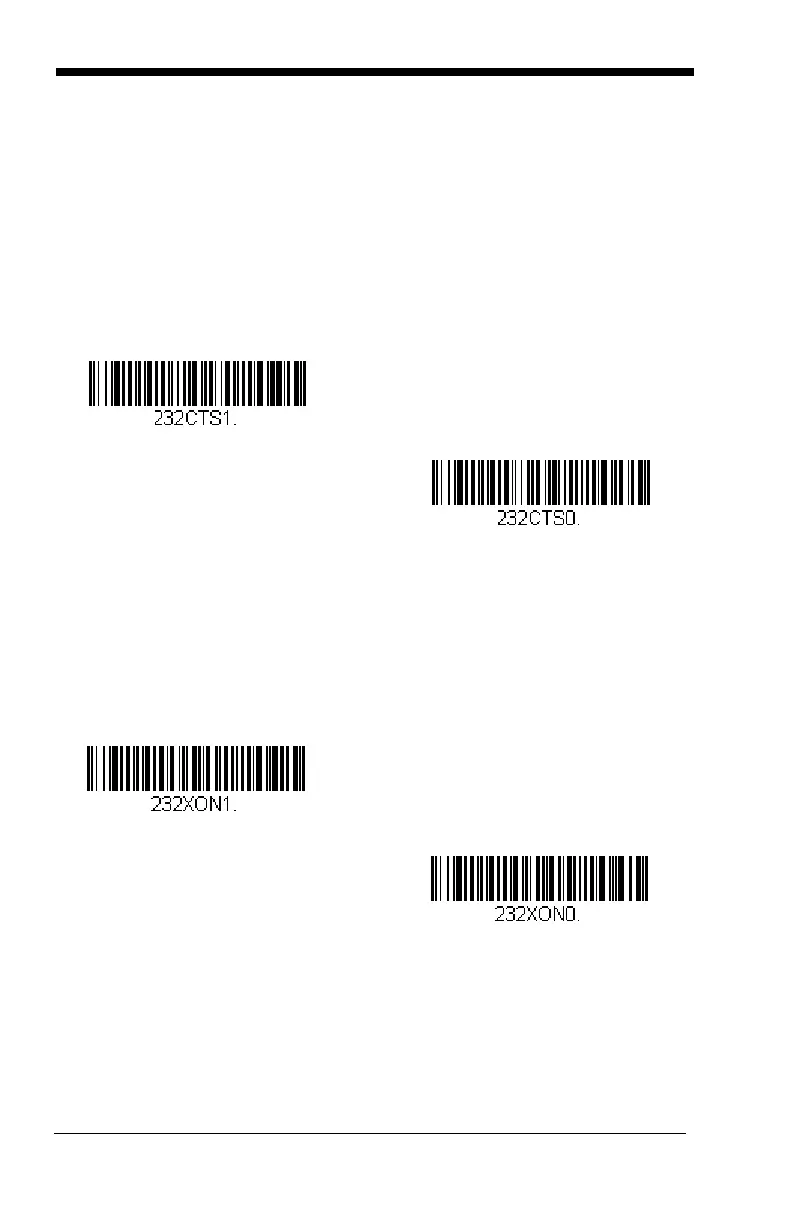

RTS/CTS On
* RTS/CTS Off
* XON/OFF Off
XON/XOFF On

Honeywell Hyperion 1300G Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D
Maximum range	0.66 m
Read rate (max)	270 reads/s
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 70000 lx
Cable length	3 m
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	200 mA
Safety	RoHS, CE
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	112 mm
Width	79 mm
Height	150 mm
Weight	160 g
