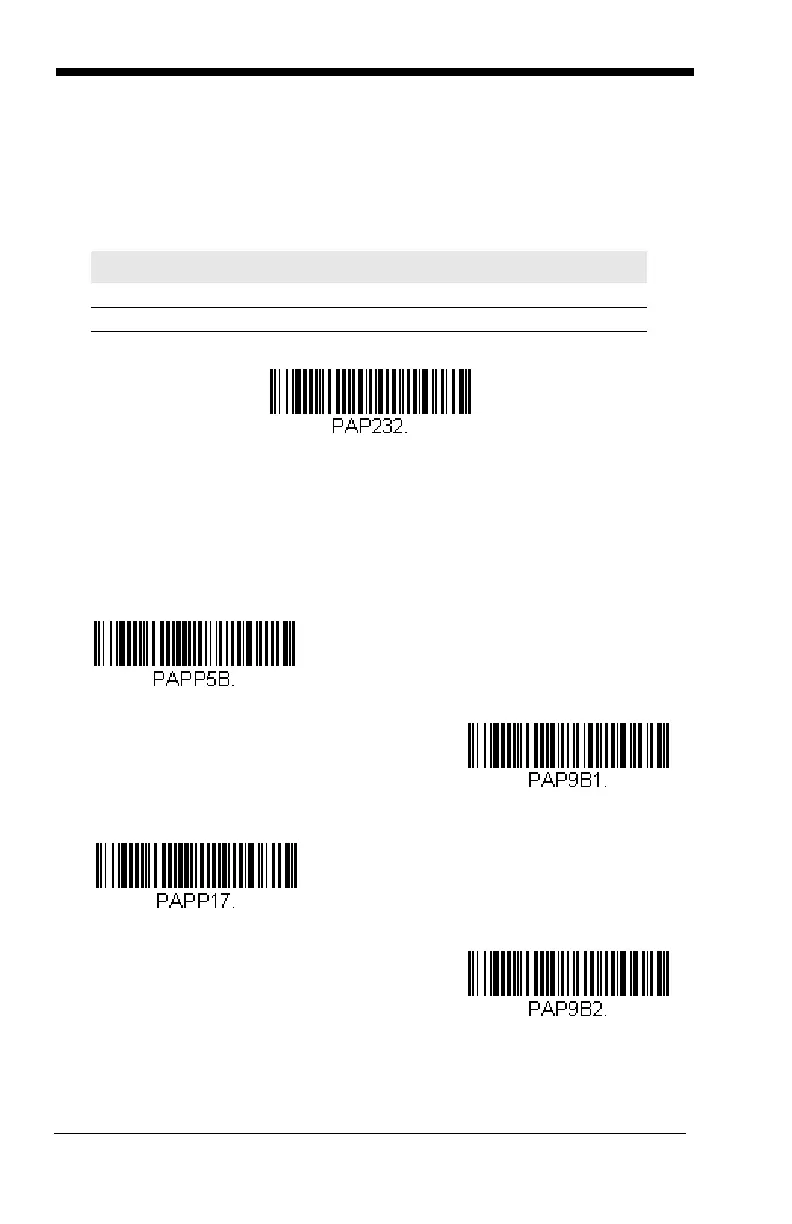

RS232 Serial Port
The RS232 Interface bar code is used when connecting to the serial port of a
PC or terminal. The following RS232 Interface bar code also programs a car-
riage return (CR) and a line feed (LF) suffix, baud rate, and data format as indi-
cated below.
RS485
Scan one of the following “Plug and Play” codes to program the scanner for an
IBM POS terminal interface.
Note: After scanning one of these codes, you must power cycle the cash
register.
Option Setting
Baud Rate 38,400 bps
Data Format 8 data bits, no parity bit, 1 stop bit
RS232 Interface
IBM Port 5B Interface
IBM Port 9B
HHBCR-1 Interface
IBM Port 17 Interface
IBM Port 9B
HHBCR-2 Interface

Honeywell Hyperion 1300G Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D
Maximum range	0.66 m
Read rate (max)	270 reads/s
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 70000 lx
Cable length	3 m
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	200 mA
Safety	RoHS, CE
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	112 mm
Width	79 mm
Height	150 mm
Weight	160 g
