Honeywell Hyperion 1300G User Manual

5 - 9
Search backward for a character
F9 Search the input message backward for “xx” character from the current
cursor position, leaving the cursor pointing to the “xx” character.
Syntax
= F9xx
where xx stands for the search character’s hex value for the
CP1252 character.
Refer to the ASCII Conversion Chart (Code Page 1252), beginning on
page A-2 for decimal, hex and character codes.
Search forward for a string
B0 Search forward for “s” string from the current cursor position, leaving
cursor pointing to “s” string. Syntax = B0nnnnS where nnnn is the string
length (up to 9999), and S consists of the ASCII hex value of each
character in the match string. For example, B0000454657374 will
search forward for the first occurrence of the 4 character string “Test.”
Refer to the ASCII Conversion Chart (Code Page 1252), beginning on
page A-2 for decimal, hex and character codes.
B0 Example: Send bar code data that starts after a string of char-
acters
Search for the letters “FGH” in bar codes and send all the data that fol-

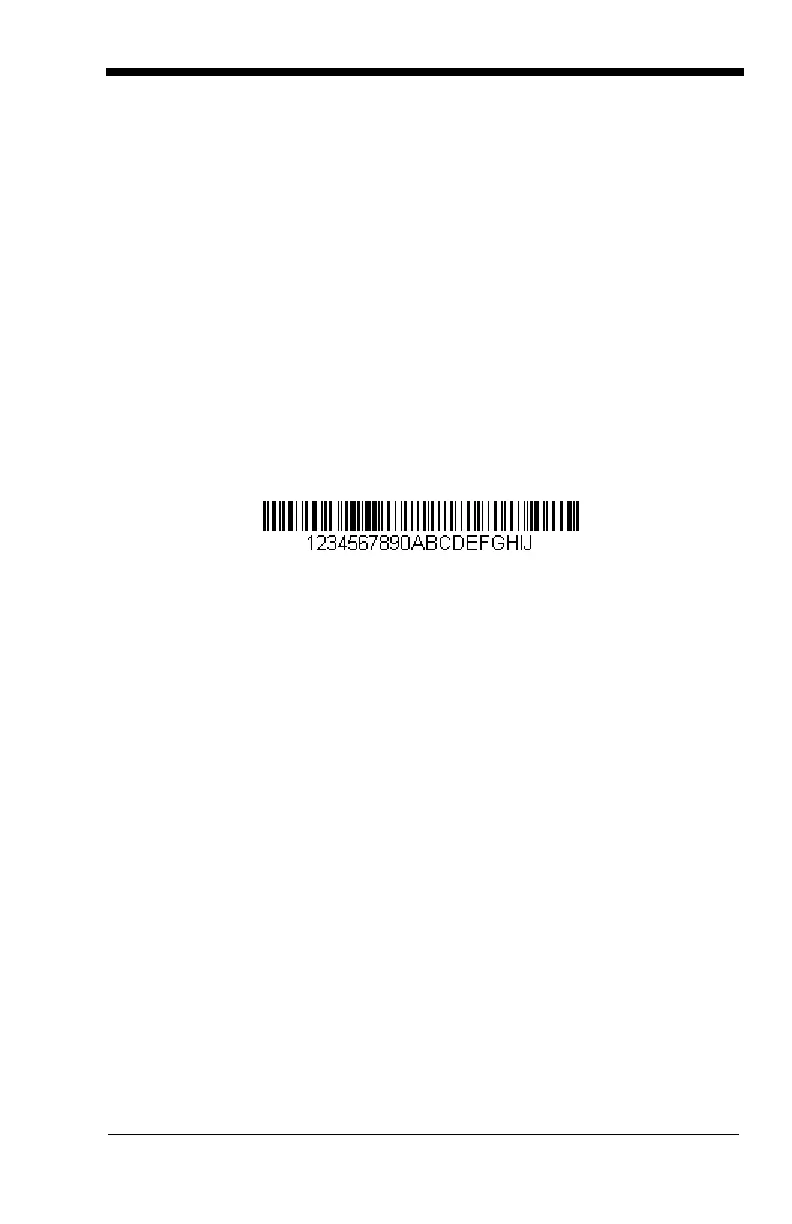

lows, including “FGH.” Using the bar code above:
Command string: B00003464748F10D
B0 is the “Search forward for a string” command
0003 is the string length (3 characters)
46 is the hex value for “F”
47 is the hex value for “G”
48 is the hex value for “H”
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: FGHIJ
<CR>
Search backward for a string
B1 Search backward for “s” string from the current cursor position, leaving
cursor pointing to “s” string. Syntax = B1nnnnS where nnnn is the string
length (up to 9999), and S consists of the ASCII hex value of each
character in the match string. For example, B1000454657374 will
search backward for the first occurrence of the 4 character string “Test.”
Refer to the ASCII Conversion Chart (Code Page 1252), beginning on
page A-2 for decimal, hex and character codes.

Honeywell Hyperion 1300G Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D
Maximum range	0.66 m
Read rate (max)	270 reads/s
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 70000 lx
Cable length	3 m
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	200 mA
Safety	RoHS, CE
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	112 mm
Width	79 mm
Height	150 mm
Weight	160 g
