Honeywell Hyperion 1300G User Manual

5 - 15

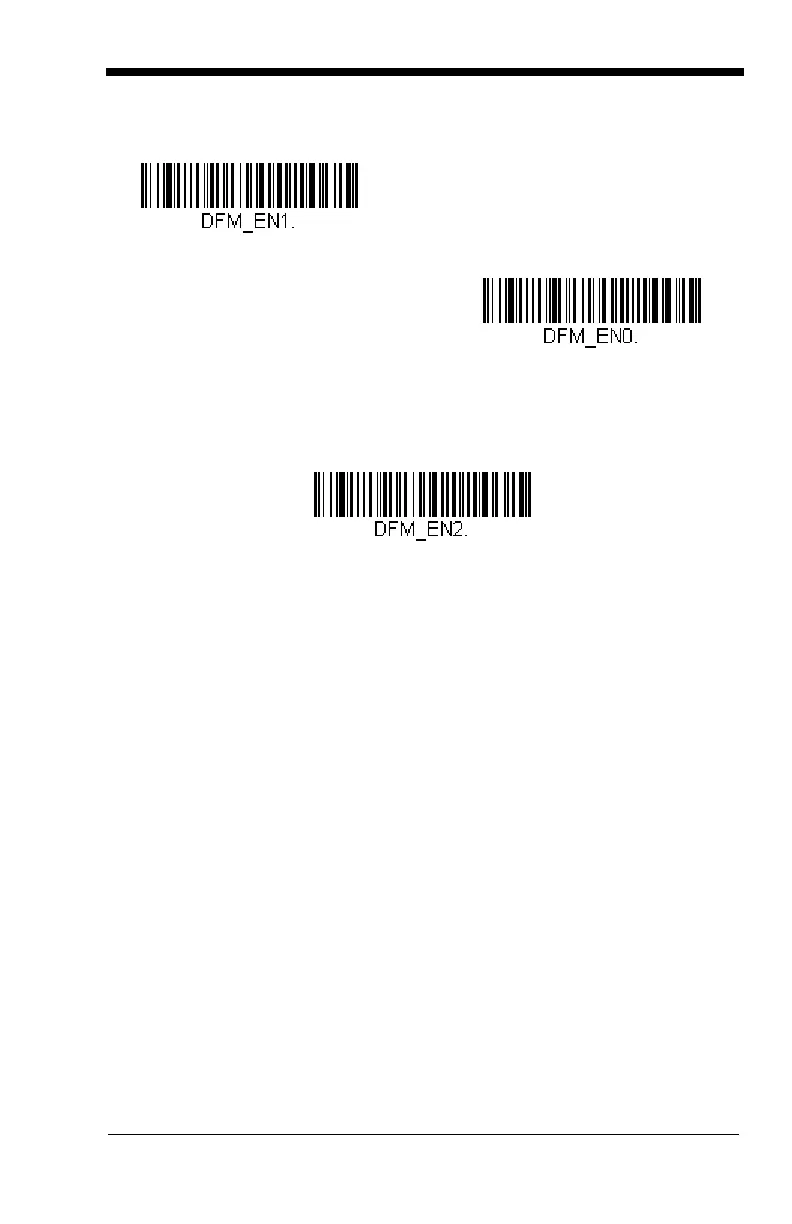

Default = Data Formatter On.
When Data Formatter is required, all input data must conform to an edited for-
mat or the scanner does not transmit the input data to the host device.
Data Formatter Off
* Data Formatter On,
but Not Required
Data Format On, Format Required

Honeywell Hyperion 1300G Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D
Maximum range	0.66 m
Read rate (max)	270 reads/s
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 70000 lx
Cable length	3 m
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	200 mA
Safety	RoHS, CE
Shockproof	Yes
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	112 mm
Width	79 mm
Height	150 mm
Weight	160 g
