Transmitter/Communications Characteristics
Page 8 34-ST-25-20 MC Toolkit User Manual Release 3
9/06
non-Honeywell transmitters. For more information, refer to tables in the Reference Data section of this
manual.
It is recommended that the SDC 625 application software, based on DD-IDE/SDC-625 technology and
"OPEN" tools standard, be used with non-Honeywell HART devices. The SDC 625 is based on HART
Revision 5.0 and uses Device Descriptions stored in the Pocket PC to communicate to all universal,
common and specific device commands. MC Toolkit will come with all HART Registered (updated once
per quarter) Device Descriptions pre-loaded.
URVURV

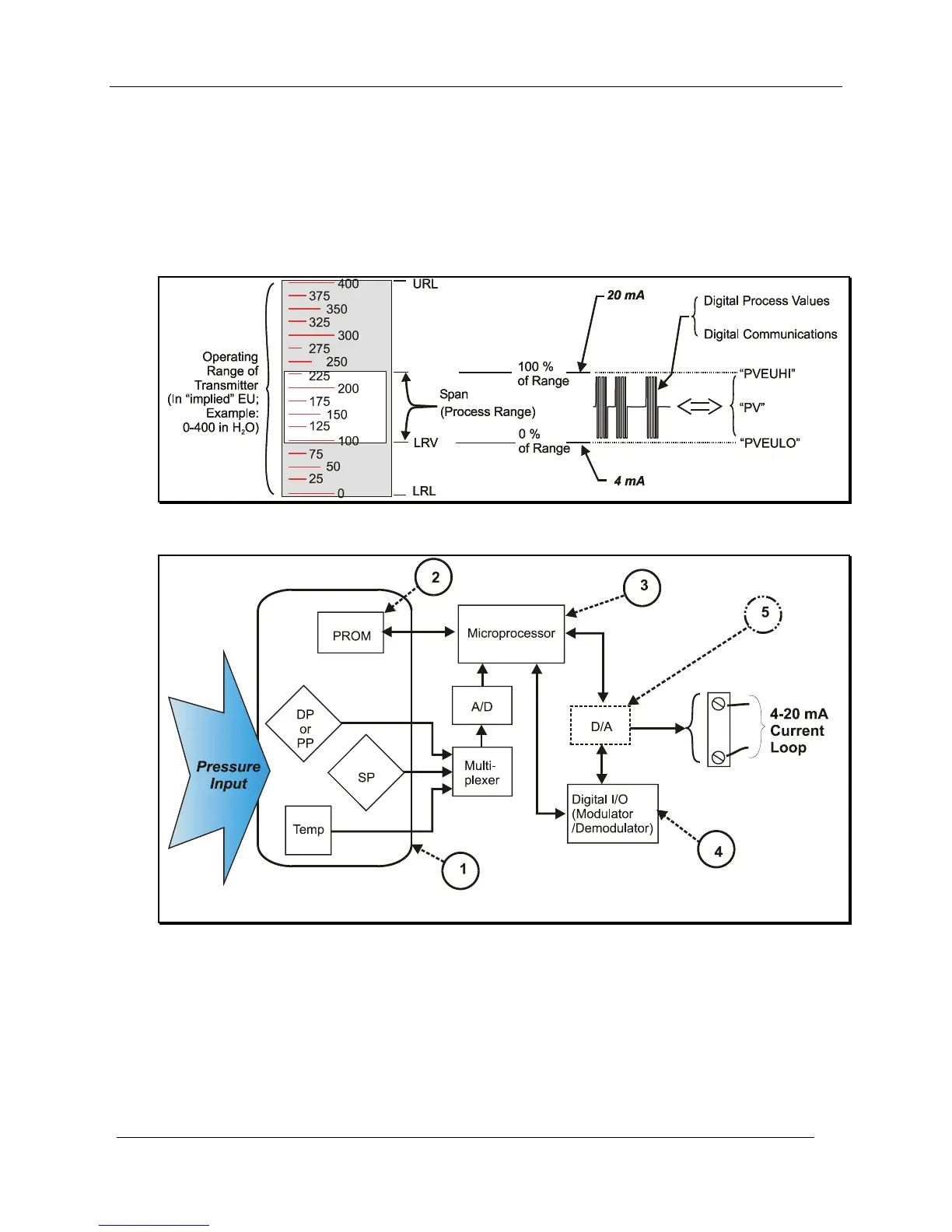

Figure 5 Honeywell DE Mode Value Scaling
Figure 6 Honeywell (HART) Transmitter Diagram
