Honeywell MC ToolKit - DE Main Menu Procedures

Procedural Considerations
Page 22 34-ST-25-20 MC Toolkit User Manual Release 3
9/06

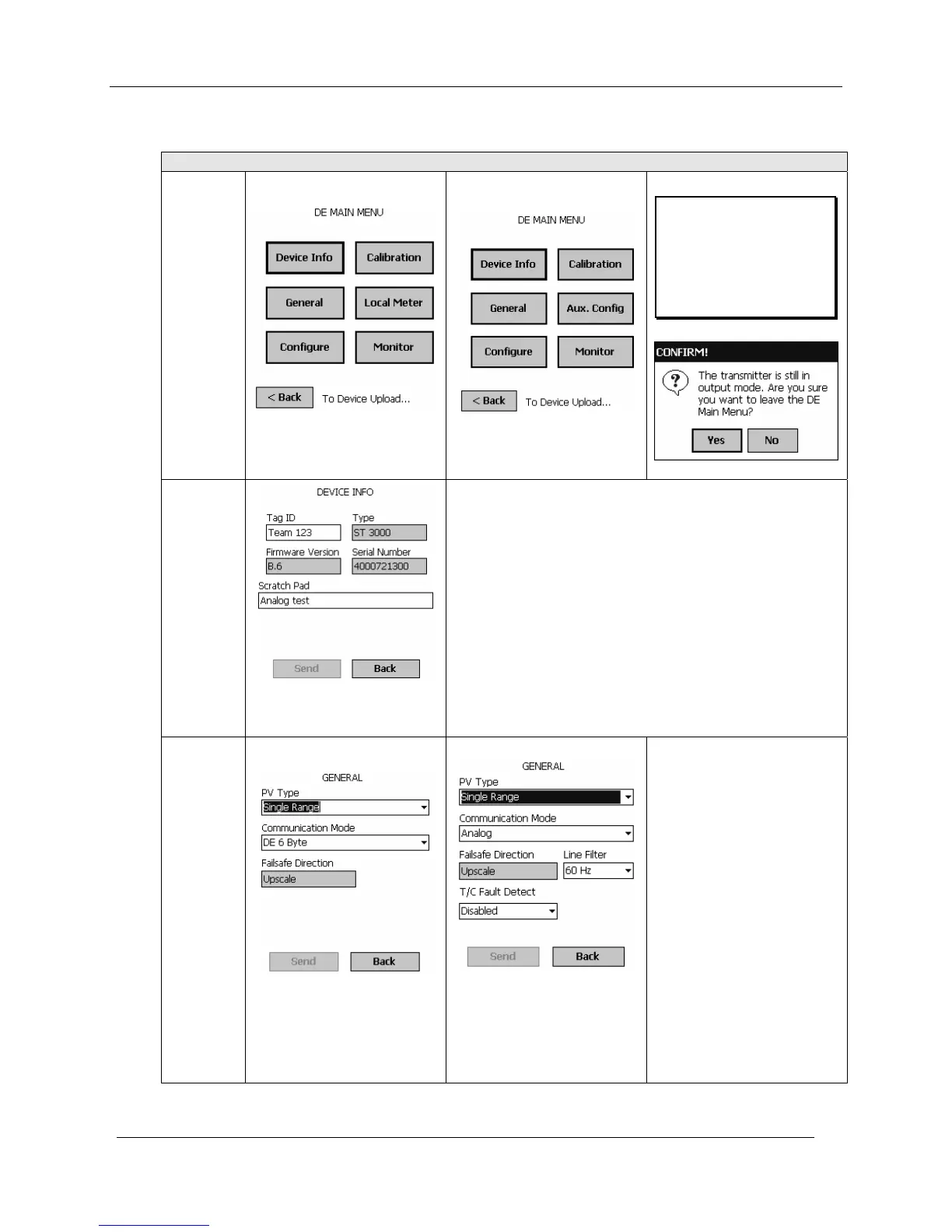

Table 3 DE Main Menu Procedures
DE Main Menu Procedures
DE Main
Menu
(ST 3000)
(STT 3000)
Note:
This message appears if the
<Back button is selected if
the transmitter was set to
Output Mode (in Calibration
procedures), and the Output
was not later cleared.
Device
Info
Tag ID (r/w)
User ID up to 8 alphanumeric characters (suggestion: relate
to functional process entities and/or plant areas).
Type (r)
Manufacturer's device type identifier (typically, a model
number)
Firmware Version (r)
Manufacturer's Firmware version identifier
Serial Number (r)
Manufacturer
Scratch Pad (r/w)
Up to 32 alphanumeric characters (suggestion: messages
to control room regarding observed/assigned operational
status)
General (ST 3000)
(STT 3000)
PV Type (r/w)
Select: Dual Range
(STDC) or Single Range or
Single Range w/SV
Communication Mode
(r/w) Select: Analog or DE
4 Byte or DE 6 Byte
FS Direction (r)
(Upscale or Downscale;
selection is jumpered in the
transmitter).
Line Filter (r)
Select: 50hz or 60hz.
T/C Fault Detect (r/w):
Select: Enabled or
Disabled.
