Procedural Considerations
Page 34 34-ST-25-20 MC Toolkit User Manual Release 3
9/06

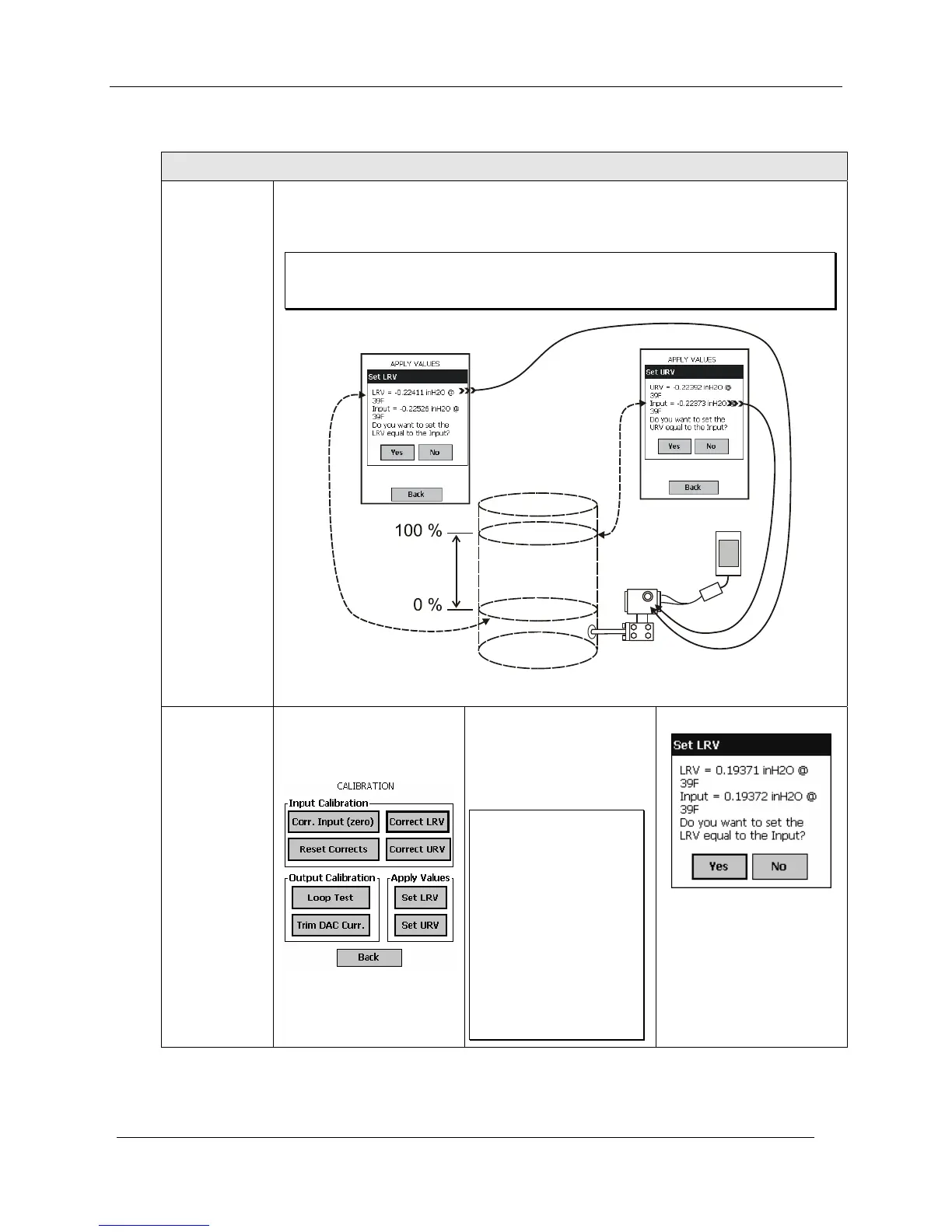

Table 7 DE Calibration - Apply Values
DE Calibration - Apply PV values to Set LRV and Set URV
Overview
of
Objectives:
• Manually set the Process Variable input to 0%, and apply this value to Set LRV;
• Manually set the Process Variable input to 100%, and apply this value to Set URV.
NOTE:
This procedure applies to DE Transmitters operating in DE Mode as well as to those
operating in Analog (current) Mode.
On the DE MAIN MENU,
select the
Calibration
button.
In the Apply Values group,
select the
Set LRV button.
The popup message at right
appears.
Note:
The value of the Input
indicated in this message
updates only when the
popup message is called
up.
To update this value,
select the No button, and
again select the Set LRV
button in the
CALIBRATION
display.
To Next Page
