Page 38 34-ST-25-20 MC Toolkit User Manual Release 3
9/06
Honeywell HART Transmitters
Other HART Transmitters

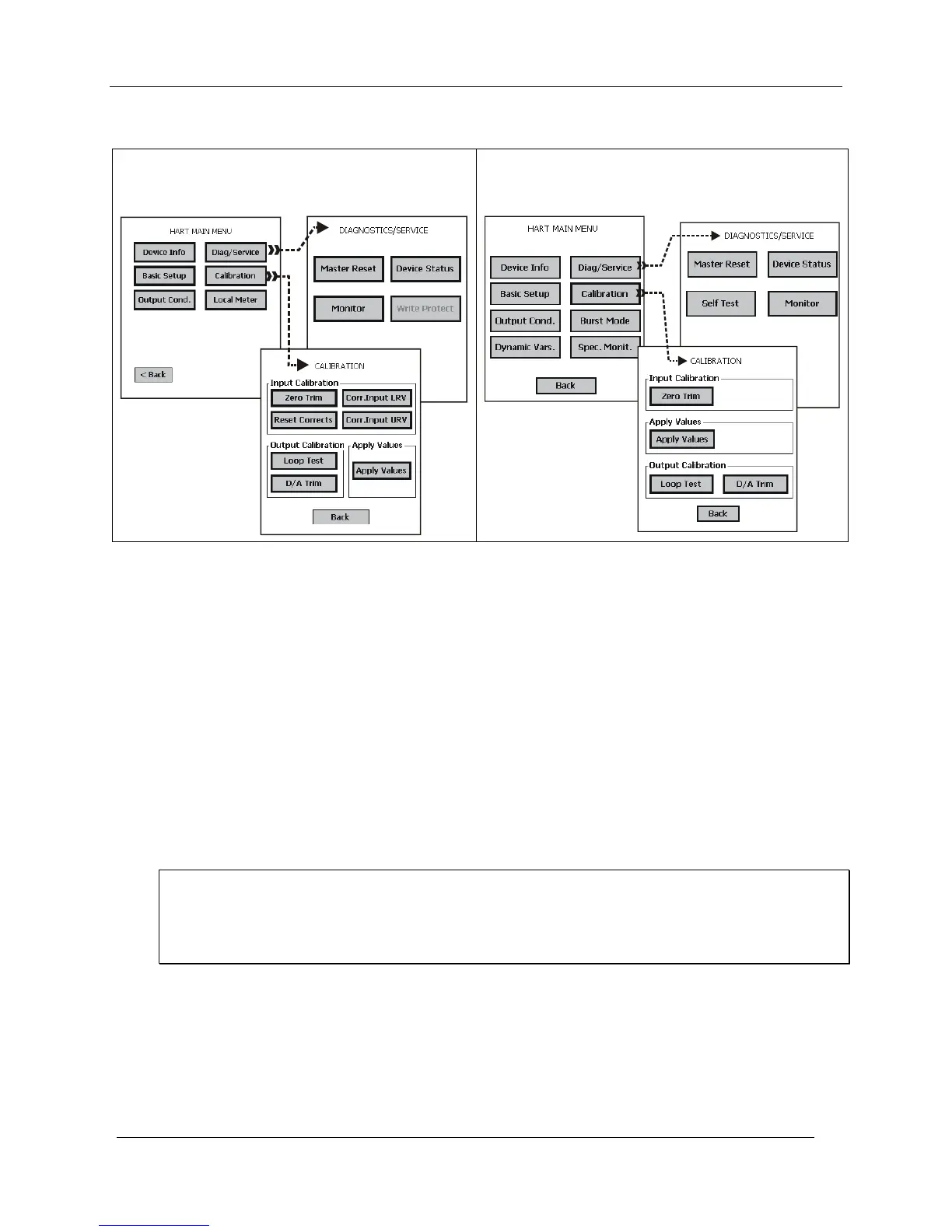

Figure 12 HART Menus (Display Summary)
General Procedures
To access displays for HART Transmitters:
• Start the MC Toolkit application; the CONNECT TO ... display will appear. (Refer to Figure 8
Start-up - MC Toolkit Application).
• Upload the database from the transmitter. (Refer to Table 9 in this section.)
− (The QUICK MONITOR display will enable viewing of key parameters before beginning other
procedures.)
− The HART MAIN MENU appears.
• Select the appropriate display from the HART MAIN MENU. (Refer to Table 10 Honeywell HART
Main Menu Procedure in this section, and to the following task list.)
NOTE:
Although some of the MC Toolkit displays (and procedures) for Honeywell transmitters differ from those
for non-Honeywell transmitters, the MC toolkit automatically provides the appropriate displays. Although
the user is not required to make any selections in the displays, he must be aware of transmitter type to select
the appropriate procedures in this manual.
To Next Page
