General Procedures
Release 3 34-ST-25-20 MC Toolkit User Manual 21
9/06

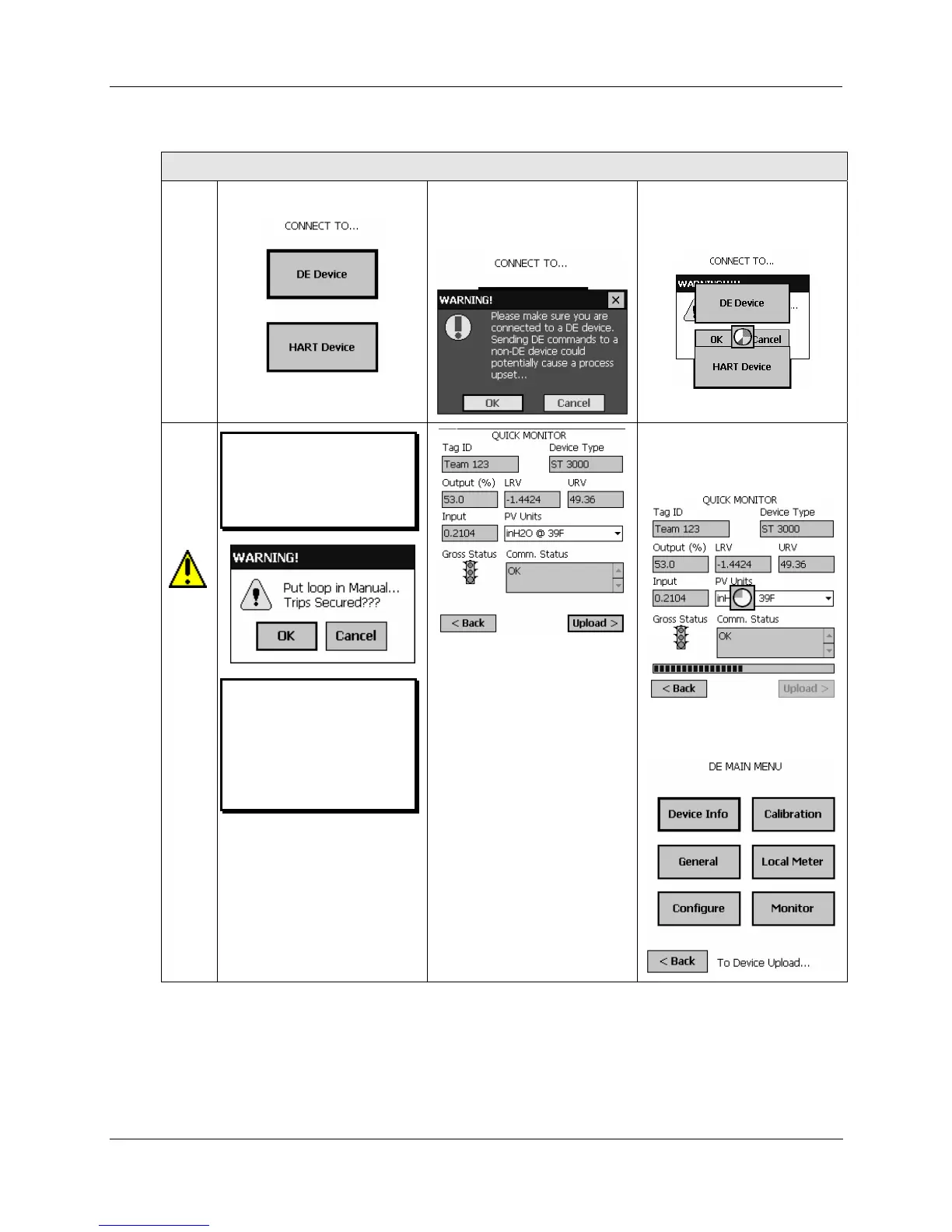

Table 2 DE Upload Procedures
DE Upload Procedures
Select the DE Device button
This Warning message
appears.
If the MC Toolkit is connected
to a DE Device, select the
OK
button.
Note:
This Warning appears only
if the transmitter is
configured for operation in
analog mode.
WARNING!
Before proceeding, if the
transmitter is part of a
control loop, ensure that
interlocks and alarms are
secured and that the loop is
in Manual control.
Then, select the OK button in
the popup message. The
display at right appears.
Use this display to
- Verify device
identification and to
monitor Gross Status
process conditions
- Select the desired Units
for the Process Variable
input using the PV Units
drop-down list.
Select the
Upload button; the
wait cursor and progress bar
appear.
Then, the Main Menu for an
ST 3000 Transmitter appears.
To Next Page
