Release 3 34-ST-25-20 MC Toolkit User Manual 49
9/06

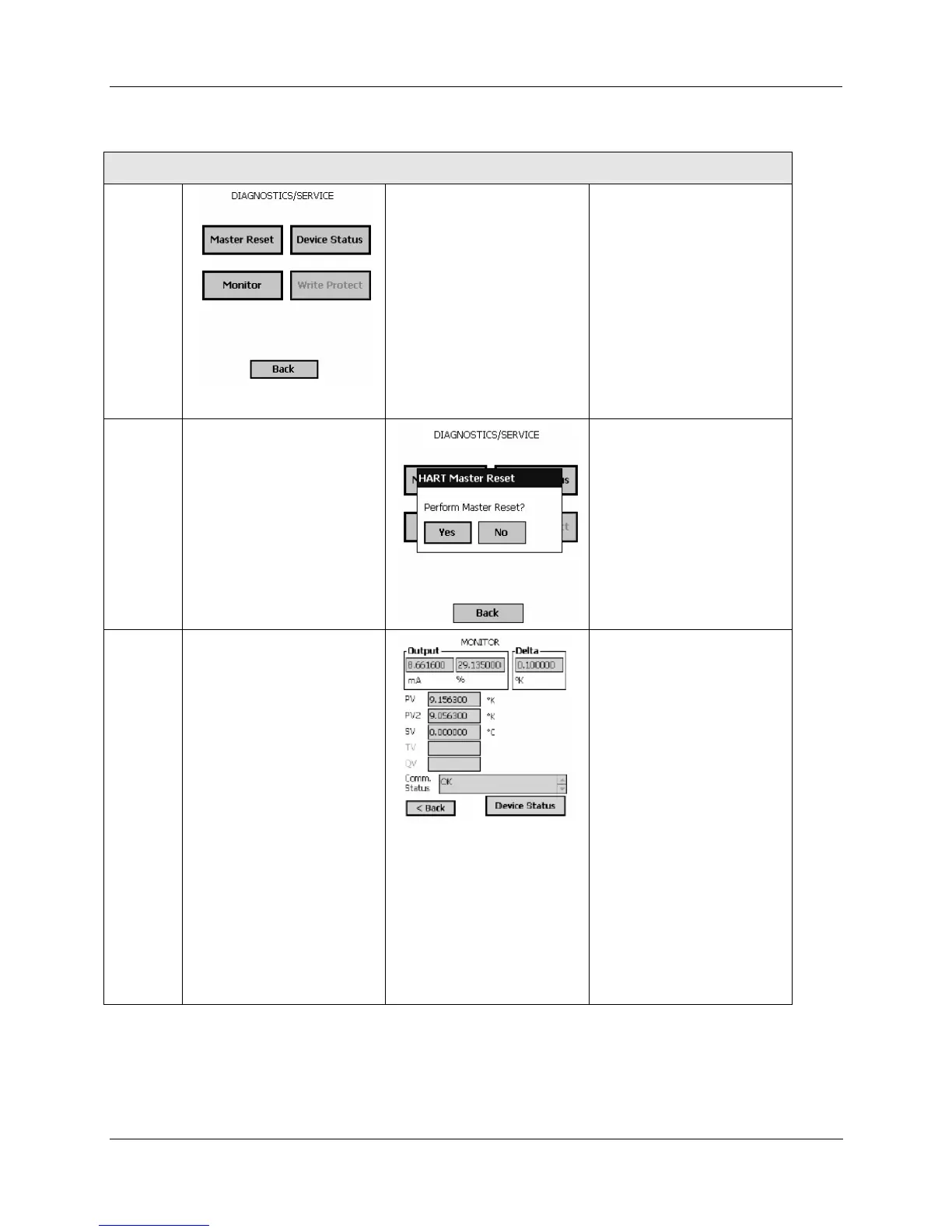

Table 11 Honeywell HART Diagnostics/Service Menu Procedures
Honeywell HART Diagnostics/Service Menu Procedures
Menu
Master
Reset
Master Reset is the
functional equivalent of
cycling power on the
transmitter. No parameters
are changed.
Select the
Master Reset
button, then confirm by
selecting the
Yes button.
Monitor
The Monitor display enables
viewing of transmitter status
and of the value of the
output.(in engineering units
and in percent)
Delta (STT25T) – Magnitude
of the difference between
PV1 and PV2
PV - Primary variable
PV2 (STT25T) – Primary
Variable 2
SV - Secondary variable
TV - Tertiary variable
(generic)
QV - Quaternary variable
(generic)
Selecting the
Device Status
button calls up the DEVICE
STATUS display (see
above).
For status information, refer
to the section on Messages
and Diagnostic Codes.
