DE Output Calibration - Trim DAC Current
Trim
Output
Current

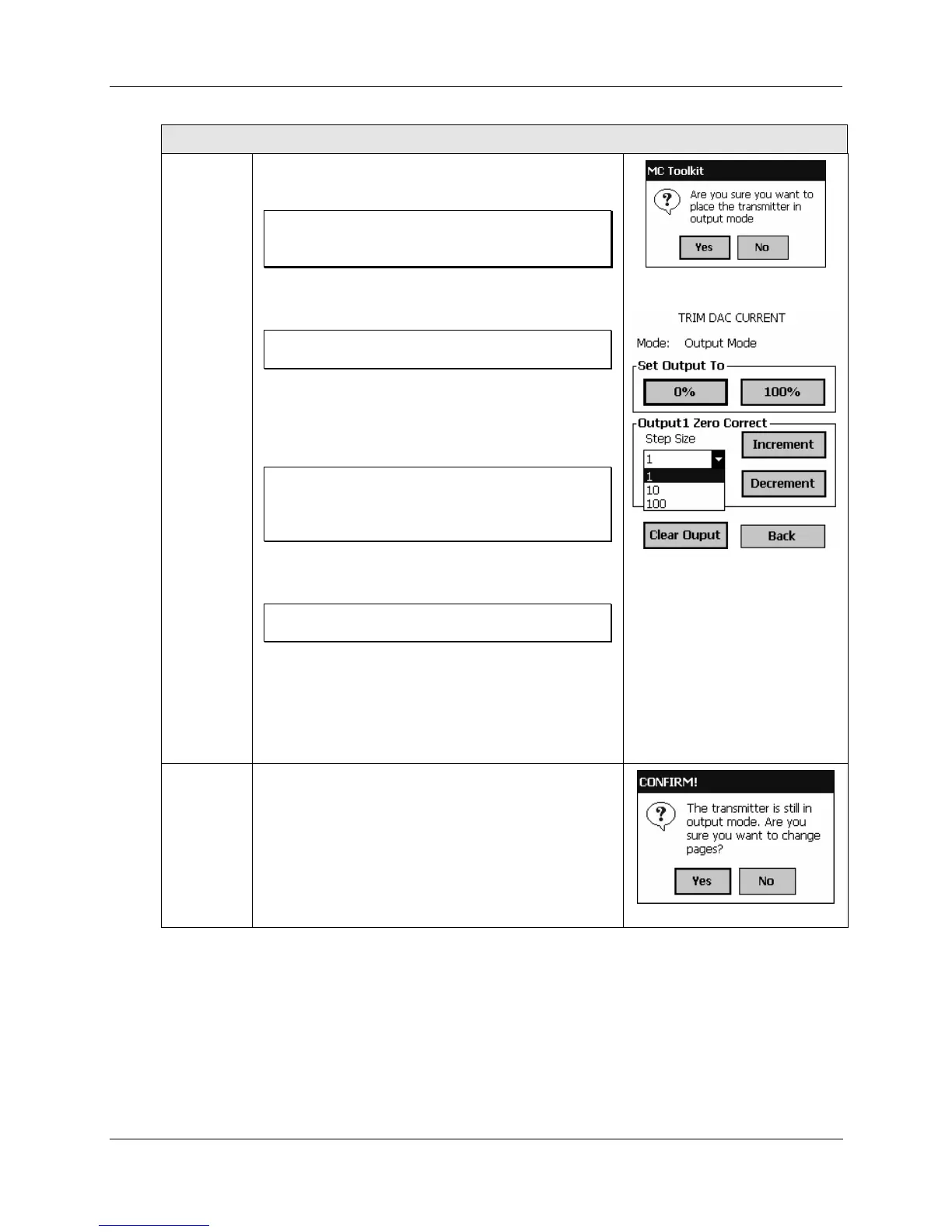

Select the
Set Output To 0% button or the 100% button.
The message popup at right appears.
Caution:
In Output Mode, output current is fixed at 0% or
100%. Ensure that the loop is in Manual control.
Select the Yes button, and at the meter, observe the level
of loop current.
NOTE:
On the voltmeter, 4 mA corresponds to 1 volt.
Using the MC Toolkit, adjust the loop current to the
Zero Percent level (4 mA). If the current is low, tap the
Increment button; if it is high, tap the Decrement
button, and observe the change on the meter.
NOTE:
If the error is large, you can accelerate the
adjustment rate by changing the Step Size to 10 or
to 100.
When the zero current level (4 mA) is achieved, select
the Set Output To 100 % button.
NOTE:
On the voltmeter, 20 mA corresponds to 5 volts.
Use the Increment and/or Decrement buttons to adjust
the output current to 20 mA.
When the 100% current level (20 mA) is achieved,
select the Clear Output button. (Note that the button
changes to half intensity.)
Change
display
while in
Output
Mode
If you select the Back button before selecting the Clear
Output button, the display at right will appear.
If you are sure that you want to remain in Output Mode
while viewing other displays, select the
Yes button;
otherwise, select the No button, and the Clear Output
button
